125-12 Limited Access Tension Meter

See More Tension Meters, Digital

125-12 Limited Access Tension Meter

See More Tension Meters, Digital
Call for price
  • FREE Ground Shipping on Orders Over $150
warrenty

Product Description
Limited Access Digital Tension Meter
Small angle of contact minimizes twisting interference

7 Ranges: 0 - 10g up to 0 - 500g

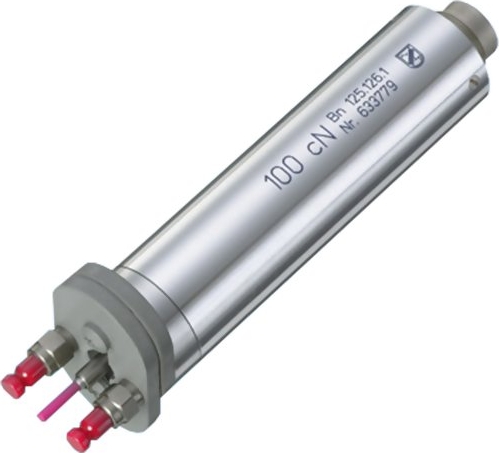

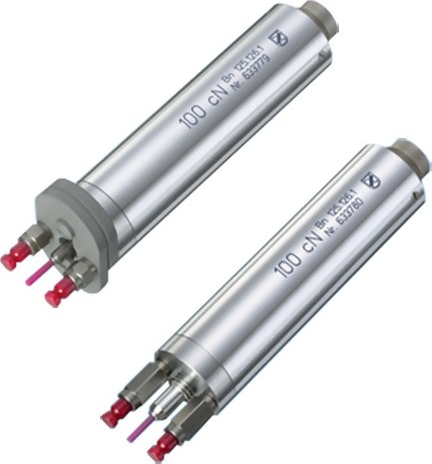

The Series 125-12 Tension Meters are extremely compact for use on low tension applications where access space is limited. They are offered with ceramic thread guides or precision ball bearing mounted rollers.

High overload protection and optional waterproof design makes this model ideal for all laboratory & production.

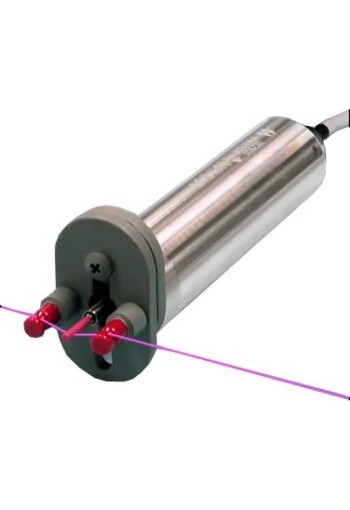

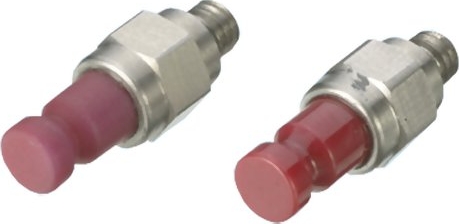

Two kinds of ceramic thread guides with a gentle surface and a low coefficient of friction are supplied to each sensor for various measuring tasks:

  • On the left: Structurered surface (orange peel), especially for flat yarn
  • On the right: Polished surface, e.g. for texturized yarn

The optional available, shiftable thread guiding device FFA offers comfortable and smooth threading into the running process


line
Features
line

  • Easy-to-read LCD display with auto power off
  • Powered by two (2) AAA alkaline batteries

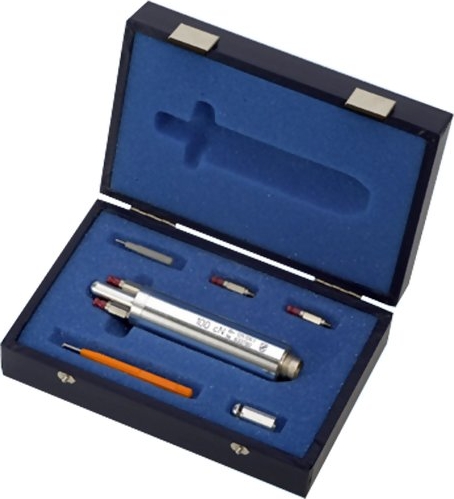

  • Supplied in an attractive foam-fitted carrying case
  • Simple 2-key operation
  • ZEF V-grooved guide rollers are rated for speeds up to 900 m/min, or optionally, 2000 m/min
  • ZED V-grooved guide rollers are rated for speeds up to 2000 m/min, or optionally, 3500 m/min
  • NIST Calibration available


line
Specifications
line

Measuring PrincipleCapacitive Sensing
Tension Ranges0-10g, 0-20g, 0-30g, 0-50g, 0-100g, 0-200g, 0-300g, 0-500g
Accuracy±1.0% or better
Material Deflection15 Degrees
Thread GuidesCeramic Pins (Standard)
Ball-bearing mounted rollers (optional)
Dimensions100mm x 25mm diameter
Weight100 grams
OptionsOuter thread guide shifting plate
Ball-bearing mounted rollers

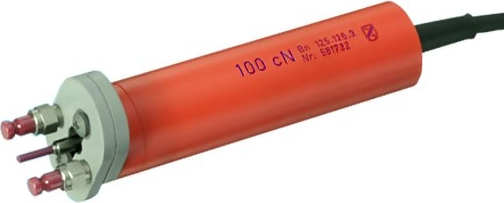

Splash-proof protection
Special thread guide design
Calibration CertificateOptional


line
Related Products
line

D-485
Digital Tension Indicator with Built-In Amplifier

  • Automatic zero setting
  • "Peak" function retains maximum reading on display
related

line

TM-353
Analog Tension Indicator with Built-In Amplifier

  • Provides 0-1 VDC analog output for recording purposes
related

line

125-S-HDI
Hand-Held Tension Sensor

  • Ideal for high-strength, high denier yarns and fibers running at linear speeds up to 5000 m/min
  • Special plasma-coated steel provides a ceramic-like coating with special "dimpled" surface structure which minimizes surface contact between the running yarn and the Non-rotating guide and sensor pins
related


line
Downloads
line

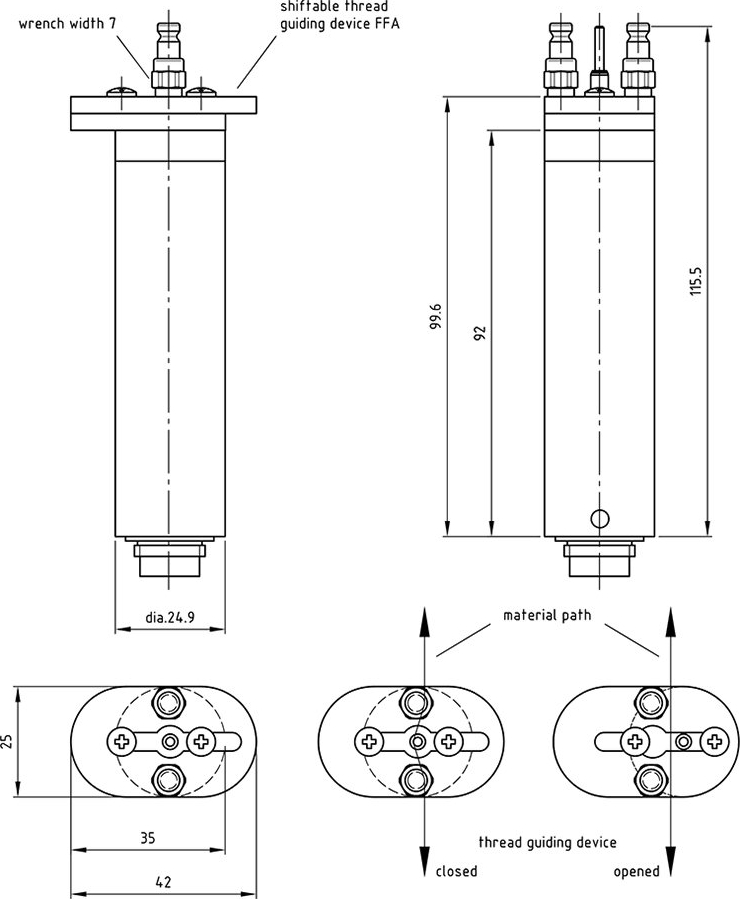

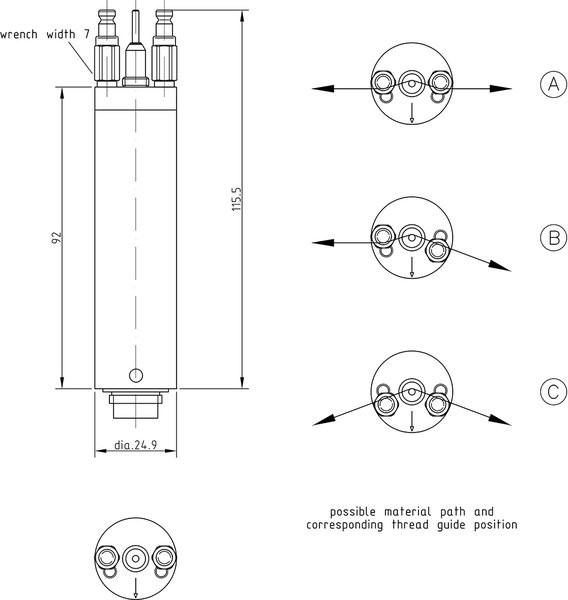

125-12 Limited Access Tension Meter - Dimensional Drawing
