125-13 Precision Tension Meter

See More Tension Meters, Mechanical

125-13 Precision Tension Meter

See More Tension Meters, Mechanical
Call for price
  • FREE Ground Shipping on Orders Over $150
warrenty

Product Description

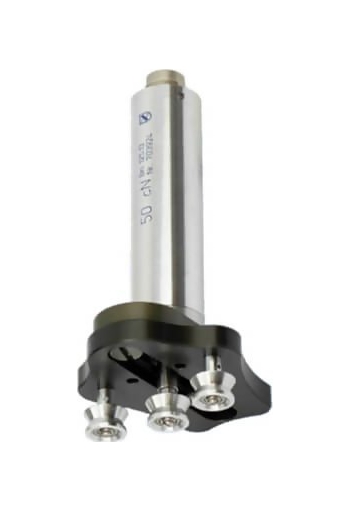

Precision Tension Meter
8 ranges 0 to 100 g - 0 to 4 kg

8 Ranges
0 - 100g up to 0 - 4,000g

The applications for these universal transducers are many and varied. They will be found both in the laboratory and in producing textiles, wire, cable, tire cord, carbon fibers and magnetic tapes.


line

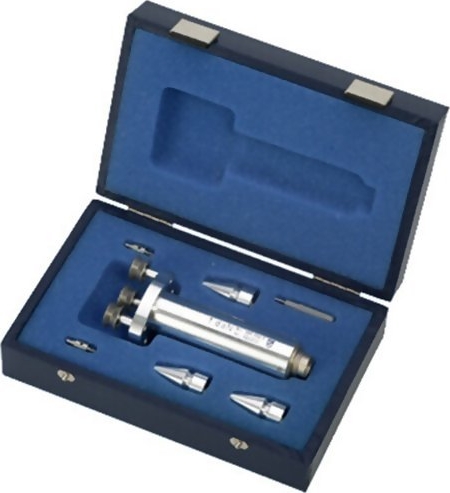

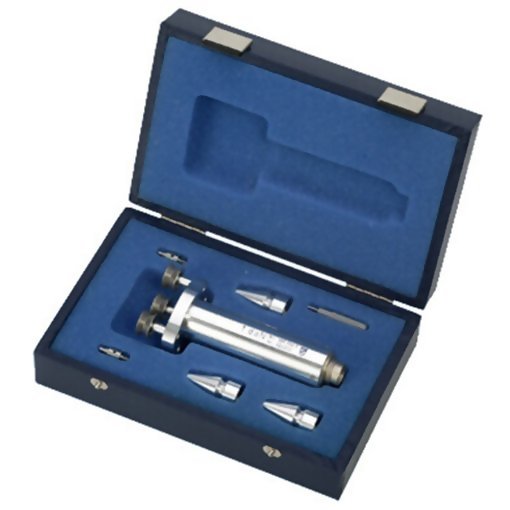

Kit Contents
line

  • 125-13 Precision Tension Meter
  • Case


line
Features
line

  • For measuring textiles, wires, cables, tire cords, magnetic tapes, carbon fibres etc.

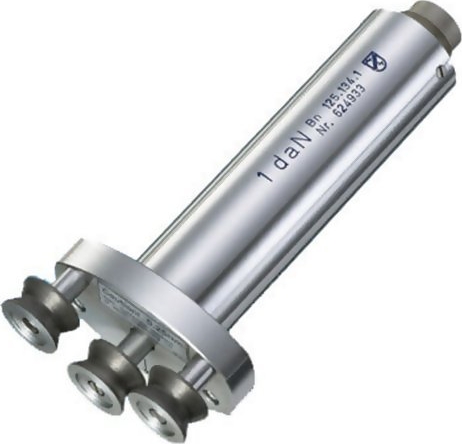

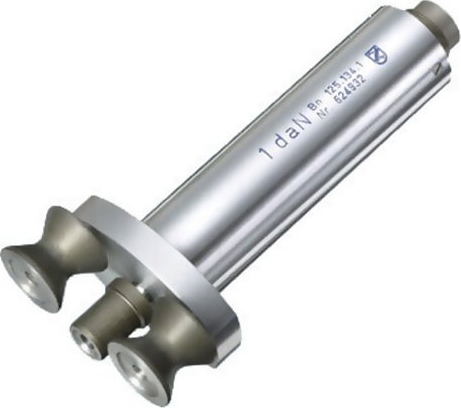

  • 3 aluminium v-groove pulleys, easy running ball bearings

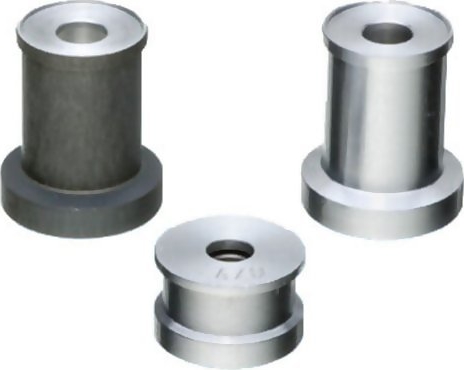

  • Customized rollers available
  • Changeable rollers
  • For measurement of monofilament textiles, industrial yarns, carbon fiber, copper and steel wires up to 0.5mm ø, woven tapes, belts, magnetic tapes
  • Measuring ranges: 50cn to 5000cn
  • Excellent long-term stability for highly reproducible measuring results
  • Small wrap angle (15°) for minimum interaction with the product being measured
  • 3 ball-bearing aluminium pulleys with v-groove, root diameter 11mm with easy-running bearings

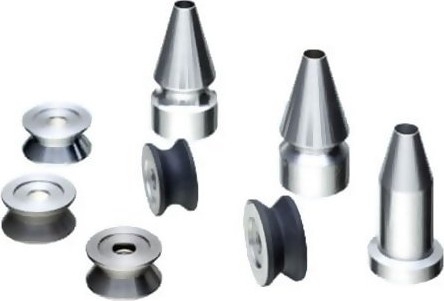

  • Interchangeable rollers

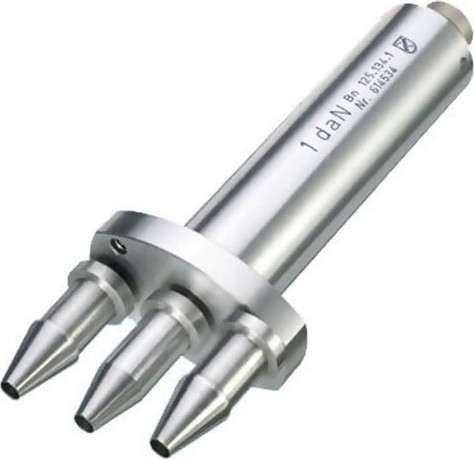

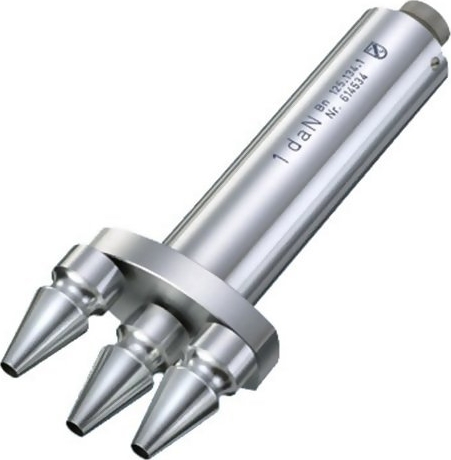

Shiftable thread guiding device FFA for 125-13

  • Comfortable, easy threading into the running process
  • For smooth threading, gentle to the material
