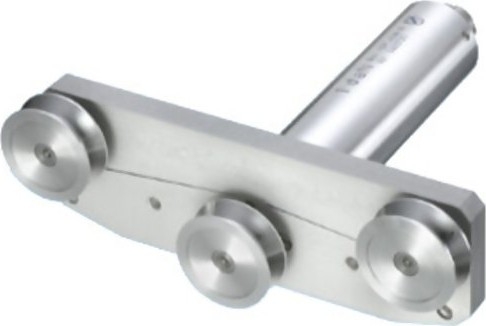

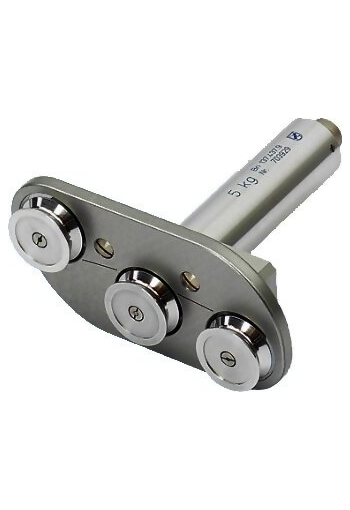

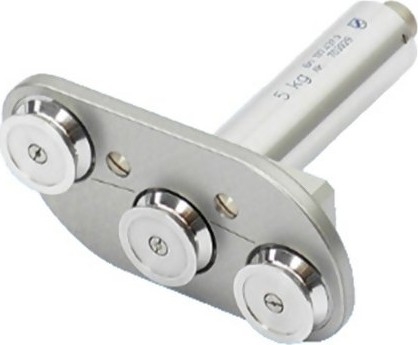

137-4 Tension sensor

See More Tension Meters, Digital

137-4 Tension sensor

See More Tension Meters, Digital
Call for price
  • FREE Ground Shipping on Orders Over $150
warrenty

Product Description
Handheld Precision Tension Measurement
6 ranges 0 - 100 g up to 0 - 5 kg

6 Ranges
0 - 100 g up to 0 - 5 kg

The design of this measuring head was selected to satisfy the special needs of the optical fibers industry. In the field of research and quality control itsapplications range from the crucible to re-reeling stations, from the extrusion process through cable jacketing and twisting machines, etc


line
Features
line

  • for measurement of optical fibres, sensitive wires up to 3.5mm Ø

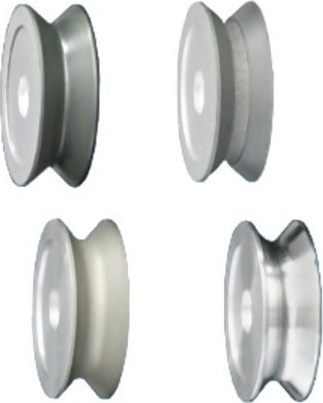

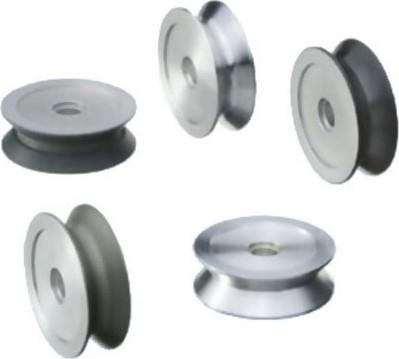

  • easy-running pulleys with precision bearings; with polished, large diameter contact surface
  • gentle on the material; easy to thread even while the process is running
  • effective overload protection means high availability for customer operations
  • very small angle of contact, only 5°
  • fiber is not diverted from its path
  • high precision and excellent long-term stability


line
Related Products
line

D-485
Digital Tension Indicator with Built-In Amplifier

  • Automatic zero setting
  • "Peak" function retains maximum reading on display
related

line

TM-353
Analog Tension Indicator with Built-In Amplifier

  • Provides 0-1 VDC analog output for recording purposes
related


line
Downloads
line

137-4 Tension sensor - Dimensions
