Name: 3000EZ-E Series Coating Thickness Gauge with Separate Probe
Brand: Checkline
SKU: 328

3000EZ-E Series Coating Thickness Gauge with Separate Probe

See More Coating Thickness Gauges

Measuring Range:
Ferrous: 0-140 mils (0-3500um)
Non-Ferrous: 0-120 mils (0-3000um)

Separate Probe

Keypad-selectable units: Mils or Microns

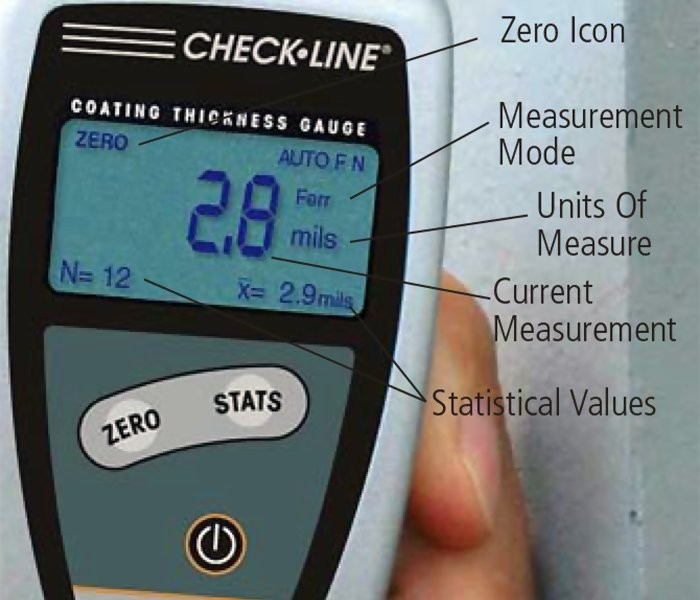

Live Statistics Displays: Number of readings, mean, standard deviation, maximum and minimum reading of up to 99 readings

2 Models
DCF-3000EZ-E - Ferrous Only Model
DCFN-3000EZ-E - Combination Ferrous & Non-Ferrous Model

Range Ferrous: 0-140 mils (0-3500um)
Non-Ferrous: 0-120 mils (0-3000um)

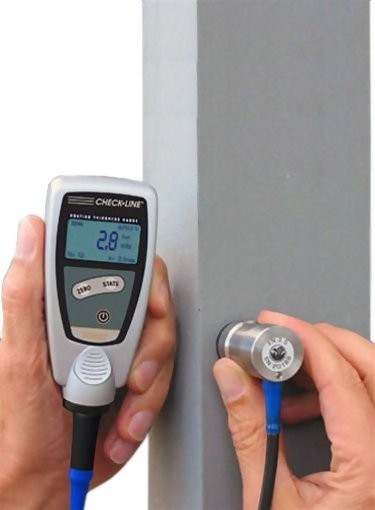

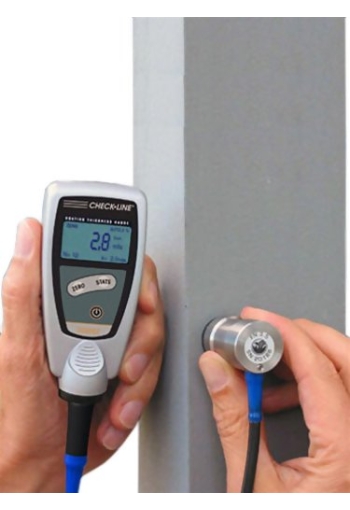

The 3000EZ-E Series Coating Thickness Gauge provides fast, non-destructive, accurate coating measurements on steel and non-ferrous metals. Designed to accommodate a wide range of production line, laboratory and field applications. Manufactured to international quality standards, the 3000EZ-E Series will provide years of trouble-free use.

The 3000EZ-E Series Coating Thickness Gauge is designed for testing non-magnetic coatings such as varnish, paint, enamel, chrome, copper, zinc, etc. on steel and iron (magnetic induction method) and all electrically insulating coatings, such as varnish, paint, anodizing coatings on non-ferrous metals, also on stainless steel (eddy-current method).

line

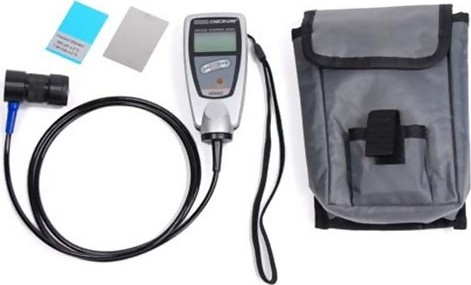

Kit Contents
line

3000EZ-E Series Coating Thickness Gauge

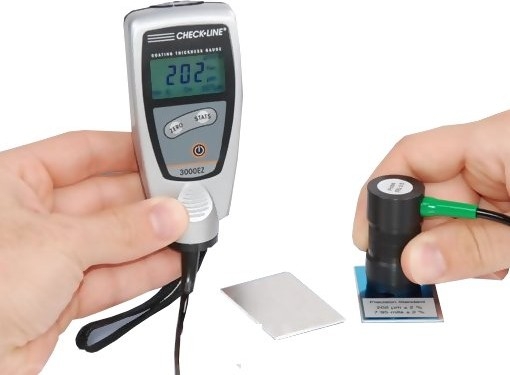

Ferrous & Non-ferrous zero plate (Combination model only)
Plastic test shim
2 AAA batteries
Soft carrying pouch
Instruction manual
Calibration certificate

line
Features
line

External dual sensor probe with hard metal pole tip
Includes NIST Calibration Certificate
Live statistics display for up to 99 readings.
Keypad-selectable English or metric units.
1 Year Warranty

line
Specifications
line

Range	Ferrous: 0 - 140.00 mils (0 - 3500 µm) Non-Ferrous: 0 - 120.00 mils (0 - 3000 µm)
Accuracy	±0.1 mils (3µm) or 3% of reading, whichever is greater
Resolution	Refer To Table Above
Display	back-lit, 4-digit alphanumeric, digit height
Minimum Measuring Area	0.5" x 0.5" (13 mm x 13 mm)
Minimum Curvature Radius	concave: 0.2" (5 mm)
Minimum Substrate Thickness	Ferrous: 20 mils / 0.5 mm Non-Ferrous: 2 mils / 50 µm
Calibration	factory calibration, zero calibration
Statistics Program	Number of readings, mean value, standard deviation, maximum and minimum reading of max. 99 readings
Operating Temp.	32 °F to 122 °F / 0 °C to 50 °C
Surface Temp.	5 °F to 140 °F / -15 °C to 60 °C
Storage Temp.	-4 °F to 140 °F / -20 °C to +60 °C
Power	2 AAA 1.5V
Dimensions	4.3" x 2" x 1" (110 mm x 50 mm x 25 mm)
Weight	3.2 oz (90 g)
Protection Class	IP 52 (proof against dust and dripping water)
Standards	DIN, ISO, ASTM, BS
Warranty	1 Year
Calibration Certificate	Included

line Measuring Limits
line

	Minimum Radius for Convex Surfaces	0.2" (5 mm)
	Minimum Radius for Concave Surfaces	2" (50mm)
	Minimum Headroom	4" (100 mm)
	Minimum Sample Diameter	0.5" (13 mm)
	Minimum Substrate Thickness - F Minimum Substrate Thickness - NFe	20 mils (0.5 mm) 2 mils (50 µm)

line
Resolution Table
line

Mils		Microns (µm)
0 - 99.9 mils	0.1 mils	0 - 999 µm	1 µm
100.0 - 140.0 mils	0.2 mils	1.000 - 2.498 mm	0.002 mm
		2.500 - 3.500 mm	0.002 mm
