Product Description

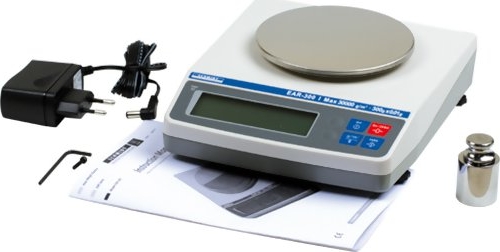

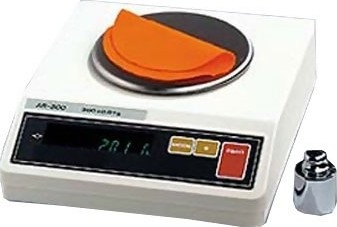

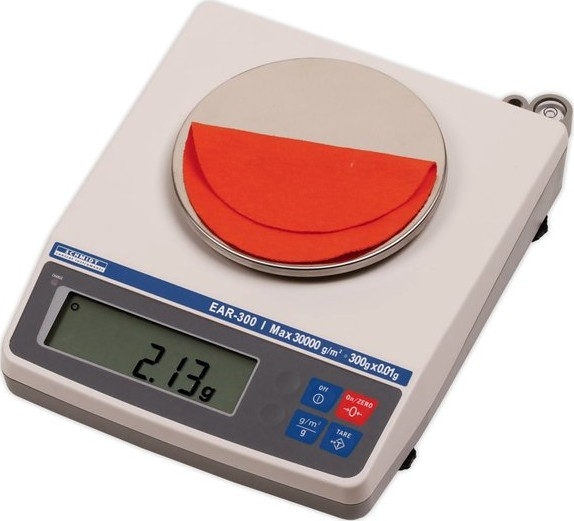

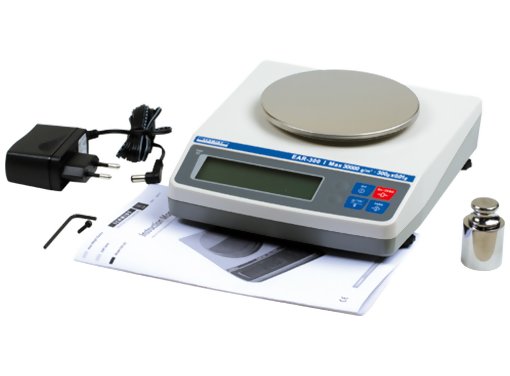

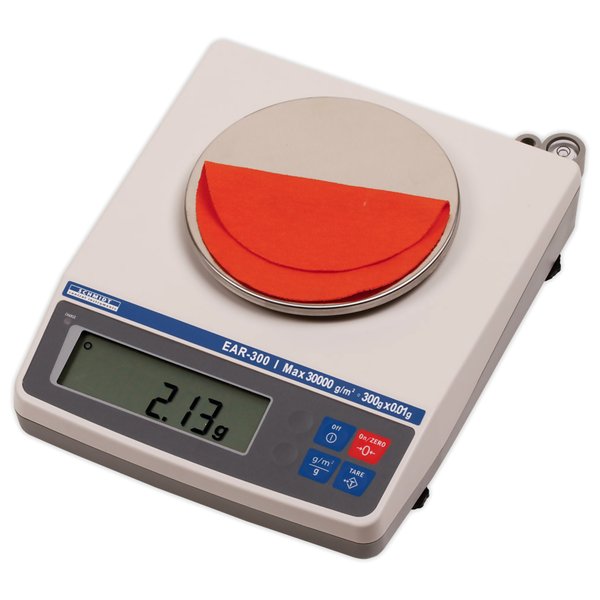

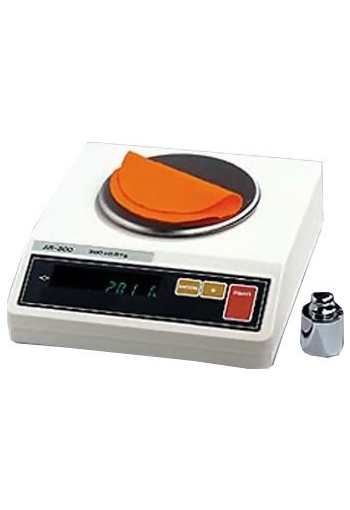

Checkline AR-300 Area Weight Balance
Range: 30000 g/m² or 300 g

Range: 30000 g/m² or 300 g

The Checkline AR-300 Area Weight Balance is designed to determine the area weight g/m² or weight gr of knitted fabric or paper etc.

2 Measuring modes:
g/m² for fabric, paper or similar materials
g to determine weight

line
Features
line

  • Automatic zero tracking and tare function
  • Powered by supplied AC adapter or integrated rechargeable battery
  • Supplied with calibration weight for recalibration
  • Built in calibration routine
  • Includes NIST Calibration Certificate

line
Specifications
line

Capacity 30000 g/m² Area weight mode
300 g Weight mode
Resolution 1 g Area weight mode (g/m²)
0.01 g Weight mode
Sample Size 100 cm²
Power Supply DC 9 V - 500 mA, accumulator
(12 hr continuous use, recharge time 12 hr)
AC Adapter 115 V AC or 230 V AC
Platform size Ø 120 mm
Temperature range 50 - 113 °F (10 - 45 °C)
Weight 3 lbs (1500 g)
Dimensions 7.9" x 8.7" x 2.4" (200 x 220 x 60 mm)


line
Related Products
line

200 Series
Sample Cutter
  • For quick cuts with size of 100 cm²
