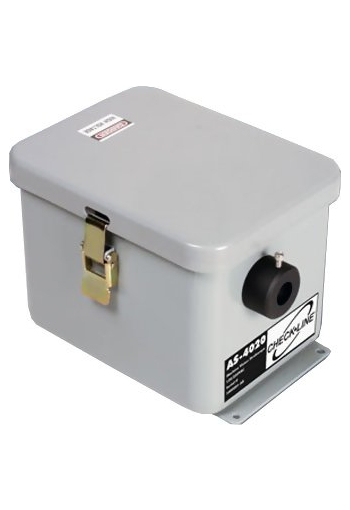

Name: Checkline AS4000 Machine Vision Stroboscope
Brand: Checkline
SKU: 373

Checkline AS4000 Machine Vision Stroboscope

See More Stroboscopes

Checkline AS4000 Machine Vision Stroboscope

3 Models with Flashrates up to 200 Hz

Variable intensity control

3 Models with Flashrates up to 200 Hz

The Checkline AS4000 series machine vision stroboscopes are designed for demanding applications that require high output, long life, and outstanding reliability.

The AS4000 is rated for an output of 40 watts and is supplied in a rugged dust-proof metal enclosure. It is offered in a 20Hz, 60 Hz and 200 Hz versions as described below.

line
Features
line

Variable intensity control
The xenon flashtube produces intense pulses, covering the ultraviolet (UV), visible (VIS) and near infrared (NIR)
Industries highest light output per watt
Custom versions for specific applications and OEM version available. Inquire

line
Specifications
line

Spectral Bandwidth	Standard: 400-850 nm Custom: 225-1100+ nm
Fiber bundle outside diameter	0.7 inch (18mm) max
Electrical Specifications
Input Voltage	120/230VAC ±10%, 50/60Hz
Input Power	40 Watts
Trigger Input	+5V, 20mA, 10-100µsec pulse (into an optoisolator with internal 150 ohms nominal series resistor)
Flash Lamp Voltage	300-600 VDC, User adjustable
Delay between flash command and light output	<10 µsec (typical)
Ext. ref. voltage	1 to 6 volts DC (V0-Vref x 60)
Storage Temperature	-40 - 194° F (-40 - 90° C)
Operating Temperature	32 - 104° F (0 - 40° C)
Dimensions	7" x 9" x 6.25"
Weight	9.2 lbs (4.1 Kg)

Model	AS-4020	AS-4060	AS-40200
Flashrate in Hz @ 600V	20 max	60 max	200 max
Discharge capacitor	12 µF	4 µF	1 µF
Input energy per flash @ 600V	2.16 joules / flash	0.72 joules / flash	0.20 joules / flash

line
Related Products
line

MV-6000
Machine Vision Stroboscope

Variable intensity control
The xenon flashtube produces intense pulses, covering the ultraviolet (UV), visible (VIS) and near infrared (NIR)

line

MVC-4000
Machine Vision Stroboscope Chassis

Chassis Mount Design for OEM applications
Highest light output per watt
Variable intensity control

line
Downloads
line

Checkline AS4000 Machine Vision Stroboscope - Instruction Manual

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Checkline AS-4020 Machine Vision Stroboscope, Flash Rate in Hz @ 600V: 20 Max View Model Details

$1,995.00

Checkline AS-4060 Machine Vision Stroboscope, Flash Rate in Hz @ 600V: 60 Max View Model Details

$1,695.00

Checkline AS-40200 Machine Vision Stroboscope, Flash Rate in Hz @ 600V: 200 Max View Model Details

$1,695.00

Recommended Accessories

PRICE

AS-4000-TUBE Flash Tube For AS-4000 Stroboscope

$270.00
