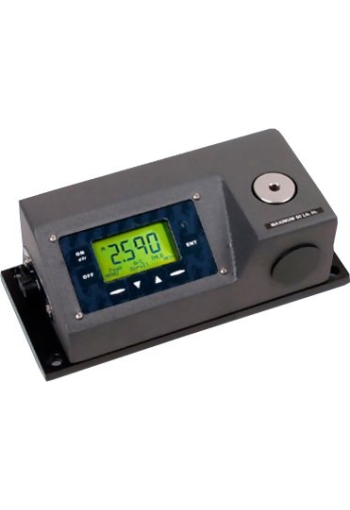

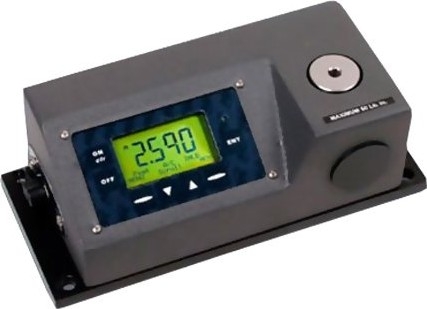

AWS TT-3000 / AWS-3000 Desktop Torque Tester
Digital Torque Tester for For testing click, dial, and digital wrenches, plus most power tools including impulse and DC electric
16 Ranges up to 1000 Lb-ft.
Eight selectable engineering units: Oz-in, Lb-in, Lb-ft, N-m, N-cm, Kgf-m, gf-cm, Kgf-m
RS-232 output
The AWS TT-3000 / AWS-3000 Desktop Torque Testers is designed specifically for the needs of today’s production facilities. The AWS-3000 powerful and versatile systems accommodate most testing requirements at an outstanding cost benefit. perfect for testing click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic.
Storage memory allows 999 data points to be saved to the unit for review, or transmitted to a local printer or PC via the standard RS232 interface. The unique keylock feature enables tamper-proof operation. High and low limits are easily set, and a panel mounted LED provides visual notification to the user when torque reaches these limits. Systems include dedicated internal transducers in vertical or horizontal configurations, and rundown fixtures for power/pulse tool testing

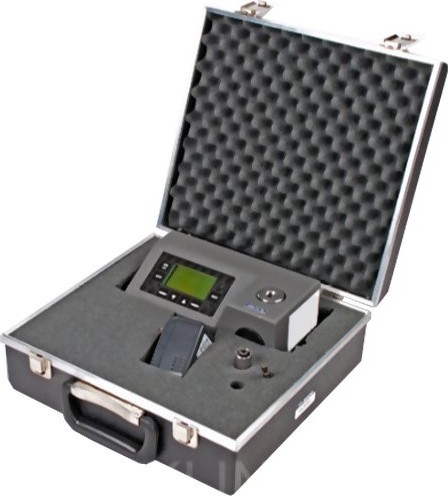

Kit Contents
- AWS TT-3000 / AWS-3000 Desktop Torque Tester
- AC adapter/Charger
- Operating Manual
- NIST Traceable calibration certificate with data
- Warranty 1 (one) Year

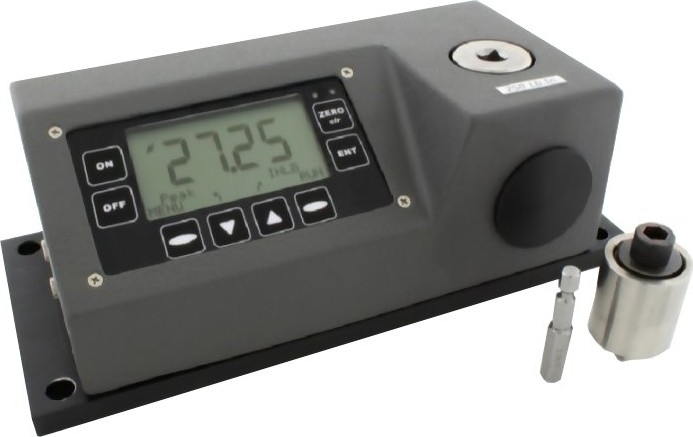

* Rundown Adaptor (Joint Simulator) Included with 1/4" & 3/8" drive size models
Features
- Bidirectional accuracy of ±0.5% of indicated reading.
- Eight selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm.
- 3 modes of operation: Track, Peak, and 1st Peak
- NiMH rechargeable batteries provide 8-10 hours continuous use
- Joint Simulator supplied with all 1/4", & 3/8" drives, optionally available on 1/2", 3/4" & 1" drives
- RS-232 Output
- Selectable power tool filtering speeds: 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz

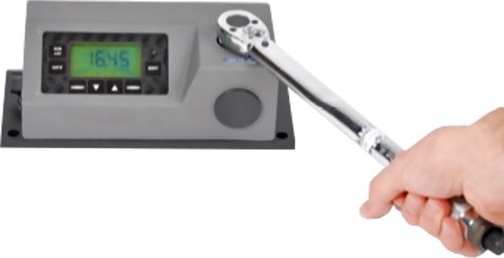

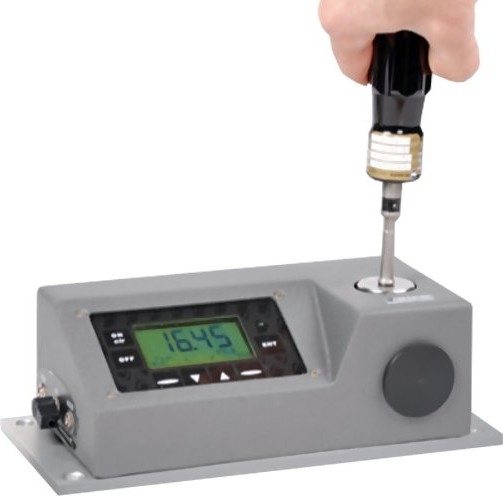

- For testing click, dial, and digital wrenches, plus most power tools including impulse, DC electric and pneumatic
- Includes NIST Calibration Certificate with Data
Specifications
| Calibrated Range | 10-100% Full Scale, bi-directional (Standard) |
| Extended Range | 5-100% Full Scale, bi-directional (ER Option) |
| Accuracy | ±0.5% of indicated (within calibrated range) |
| Resolution | 4 Active Digits |
| Overload Protection | 200% Full Scale bi-directional |
| Operating Modes | Track, Peak, 1st Peak |
| Filtering | Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz |
| Memory | data storage of up to 999 readings |
| Data Output | RS-232 |
| Display | 62 x 62mm backlit LCD |
| Alarm Limits | Panel Mounted LED for Visual Alarm Limits |
| Power | NiMH rechargeable batteries provide 8-10 hours continuous use |
| Weight | 6-9 lbs, depends on number of transducer |
| Operating Temp | 32 - 120 °F (0-50 °C) |
| Warranty | 1 Year |
| Calibration Certificate | Includes NIST Traceable calibration certificate with data |
| Standard Accesories | Joint Simulator for 1/4" & 3/8" drives, AC adapter/Charger |
| Optional Accessories | Joint Simulators for 1/2", 3/4" & 1" Transducers, Extended Ranger "ER" Option |
Torque Ranges
- The available engineering units of measurement on the TT-3000 Torque Testers are oz-in, lb-in, lb-ft, N-m, N-cm, Kgf-m, Kgf-cm, gf-cm
