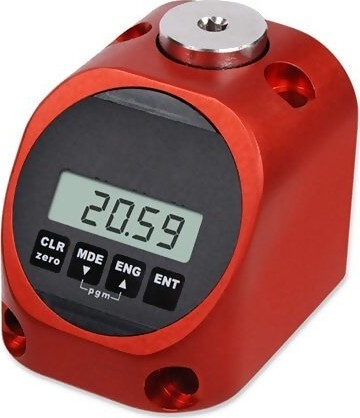

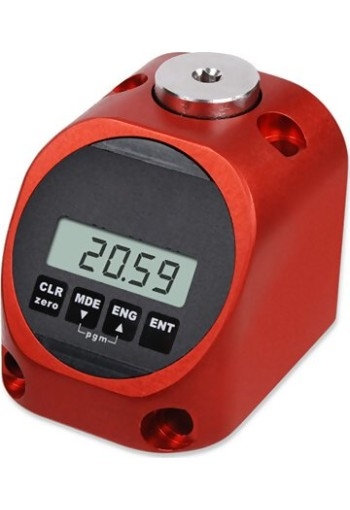

AWS TT-QC / AWS-QC Digital Torque Tester - Bench Mount Digital Torque Tester for manual and power torque screwdrivers and wrenches
Ideal for in-house testing and calibration of torque tools
Available in 15 different measuring ranges
Eight selectable engineering units: oz-in, lb-in, lb-ft, N-m, cN-m, Kgf-cm, gf-cm, Kgf-m
Simple bench mount tester for quick tool verification

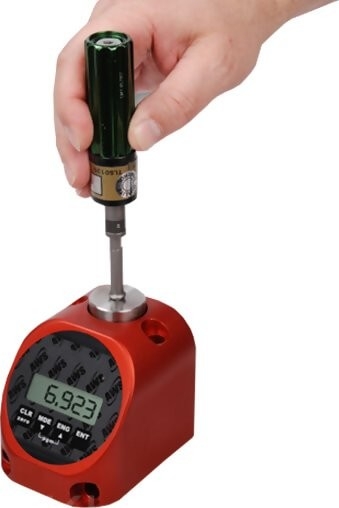

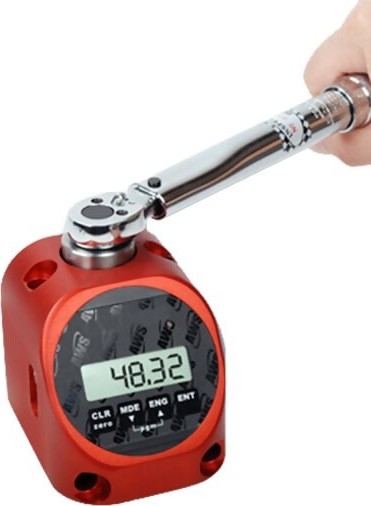

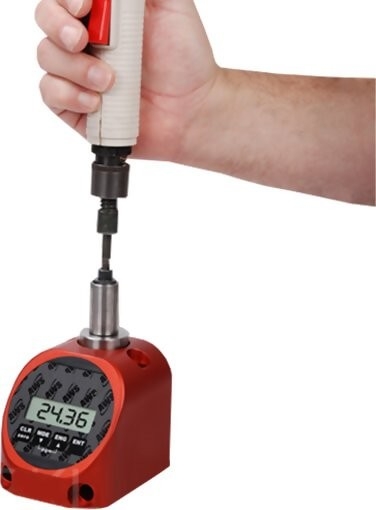

For testing click, dial, and digital wrenches, plus most power tools including impulse and electric drivers*.
Our smallest and lowest cost bench mount torque tester to date, the AWS TT-QC / AWS-QC Digital Torque Tester is perfect for quick equipment verification right at your workstation. Small and light enough to use anywhere, this unit can still be used alongside any metrology grade tester.
A unique rotating display and dual bolt pattern allow the tester to be used in both horizontal and vertical configurations. It is ideal for switching between pistol grip and inline tool checking.
The AWS TT-QC / AWS-QC Digital Torque Tester takes just seconds to change test parameters, and works in either one button or automatic modes of operation. Reliability and ease of use are enhanced with features such as: Sign Lock, Peak Blanking, Auto Clear.
*Power tools require the use of a run-down-fixture
**Not for use with impact tools or torque multipliers
Also known as the AWS-QC, Aimco Torque Cube

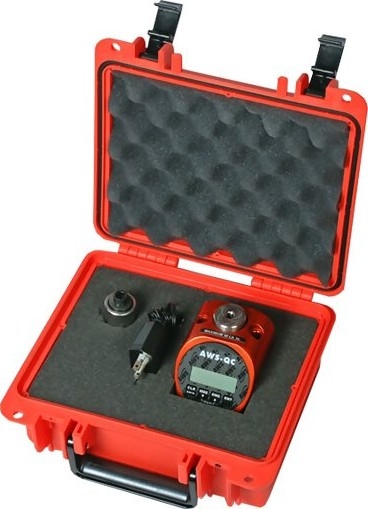

Kit Contents
- AWS TT-QC / AWS-QC Digital Torque Tester
- AC adapter/Charger
- Operating Manual
- NIST Traceable calibration certificate with data
- Warranty 1 (one) Year
*Rundown Adaptor (Joint Simulator) Included with 1/4" & 3/8" drive size models
Features
- Includes NIST-Traceable Calibration Certificate with data
- Bidirectional accuracy of ± 1% of indicated reading
- Eight (8) selectable engineering units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
- 3 modes of operation: Track, Peak and 1st Peak
- Rugged Aluminum Housing
- NiMH rechargeable batteries provide 8-10 hours continuous use
- RS-232 Data Output (requires optional cable / software)
Specifications
| Calibrated Range | 10-100% Full Scale, bi-directional |
| Accuracy | ±1% of Indicated Value (within calibrated range) |
| Resolution | 4 Active Digits |
| Overload Protection | 200% Full Scale bi-directional |
| Operating Modes | Track, Peak, 1st Peak |
| Filtering | Selectable; 125Hz, 250Hz, 500Hz, 1000Hz, 1500Hz and 2000Hz |
| Data Output | RS-232 |
| Alarm Limits | Panel Mounted LED for Visual Alarm Limits |
| Power | Internal NiMH battery, AC Adapter / Charger (included) |
| Weight | Aproximately 3lbs depending on transducer |
| Operating Temp | 32 - 120 °F (0-50 °C) |
| Warranty | 1 Year |
| Calibration Certificate | Includes NIST Traceable calibration certificate with data |
| Standard Accesories | Joint Simulator for 1/4" & 3/8" drives, AC adapter/Charger |
| Optional Accessories | Joint Simulators for 1/2", 3/4" & 1" Transducers |
Torque Ranges
