Bareiss BaRotation Automatic O-Ring Hardness And Thickness Tester

See More IRHD Hardness Testers

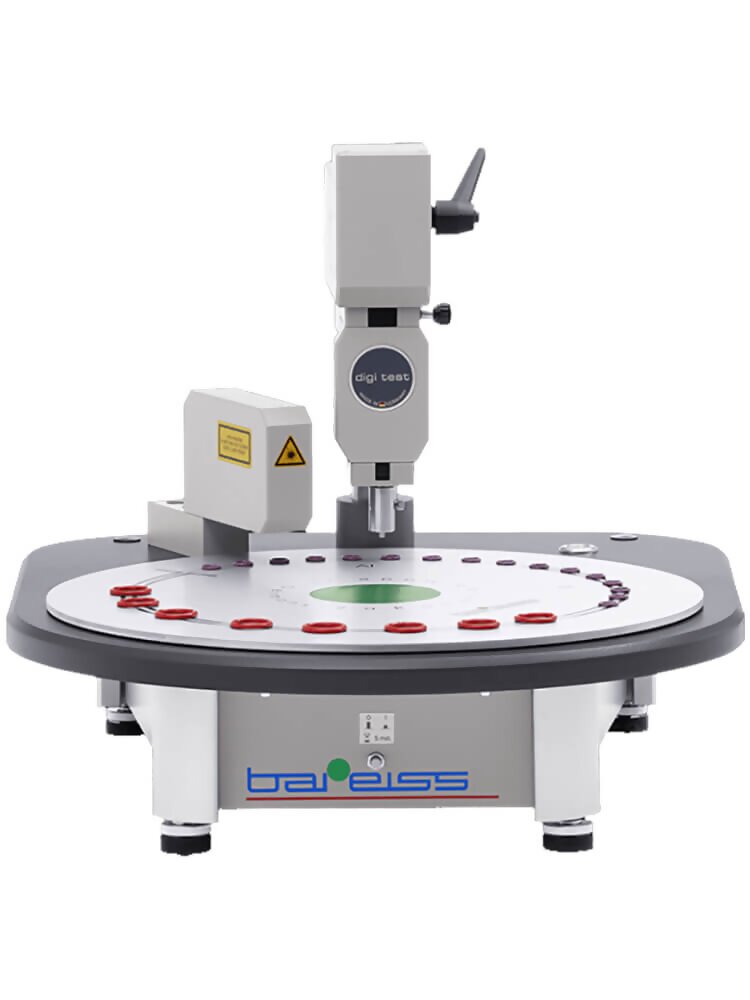

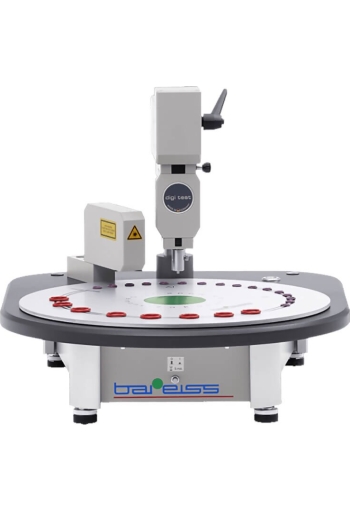

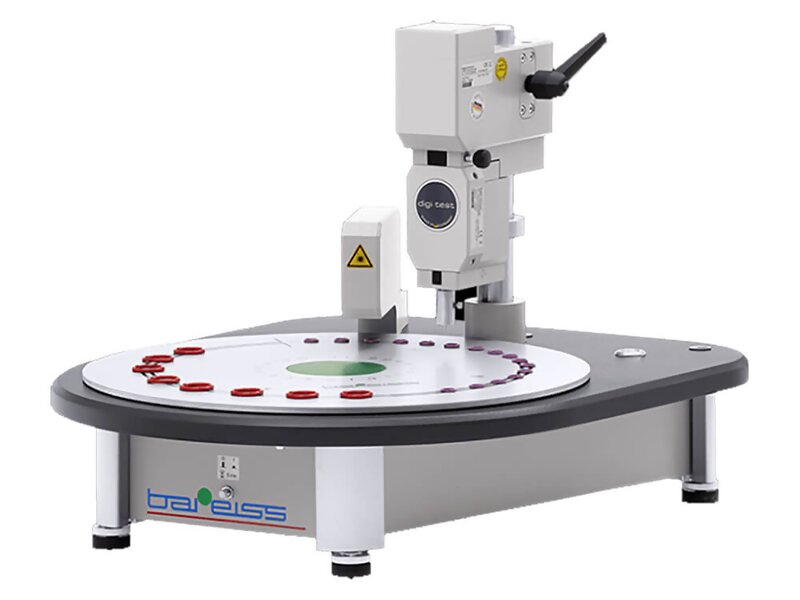

Bareiss BaRotation Automatic O-Ring Hardness And Thickness Tester

See More IRHD Hardness Testers
Call for price
  • FREE Ground Shipping on Orders Over $150
warrenty

Product Description
Time saving
Automatic evaluation
Batch dependent settings

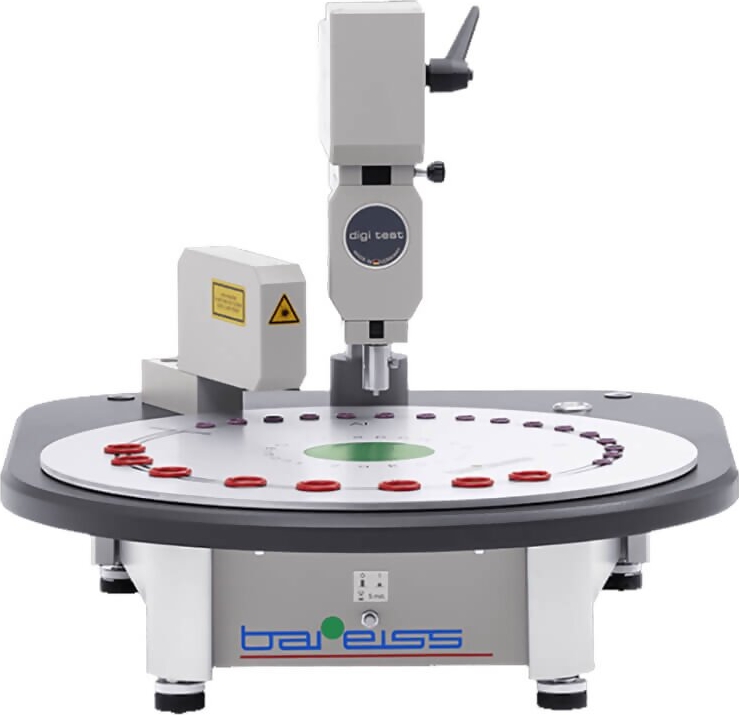

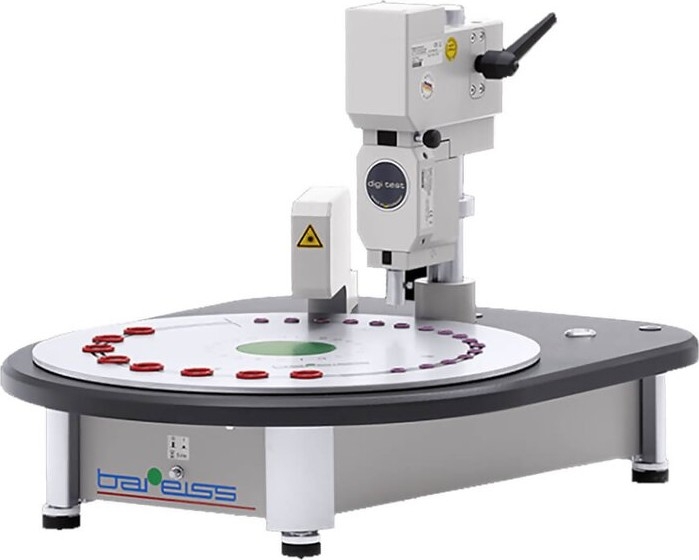

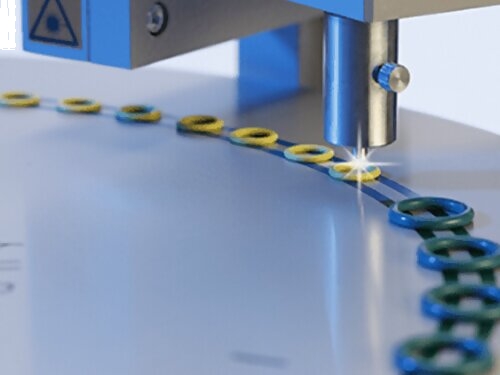

The Bareiss BaRotation Automatic O-Ring Hardness And Thickness Tester is successfully improved the testing capacity of the instrument through the automatic turntable and positioning by measuring the time and procedures required for a single product. It is equipped with a high-performance laser module to accurately locate the highest point or middle point of the O-ring, and then The O-ring is automatically taken to the hardness test area for testing by laser positioning. All procedures are suitable for small batch and multi-style testing needs. Hardness determination on soft rubber, highly elastic materials, soft deformable materials (e.g., thin-wall O-Rings).


line
Features
line

  • Time saving
  • Automatic evaluation
  • Batch dependent settings
  • Descending speed of ⅛"/s


line
Specifications
line

Range of applicationHardness determination on soft rubber, highly elastic materials, soft deformable materials (e.g. thin-wall O-Rings)
StandardsDIN ISO 48, ASTM D 1415, NFT 46-003, BS903 Part. A 26
Measuring principleIRHD Mikro | M Shore A
The indenter of the instrument penetrates the specimen from the surface. This indentation depth provides the hardness information of the test specimen.
MemoryMemory for 300 measured values
Plug-in power supply100-240V; 50-60 Hz
Data outputRS 232 (Serial)

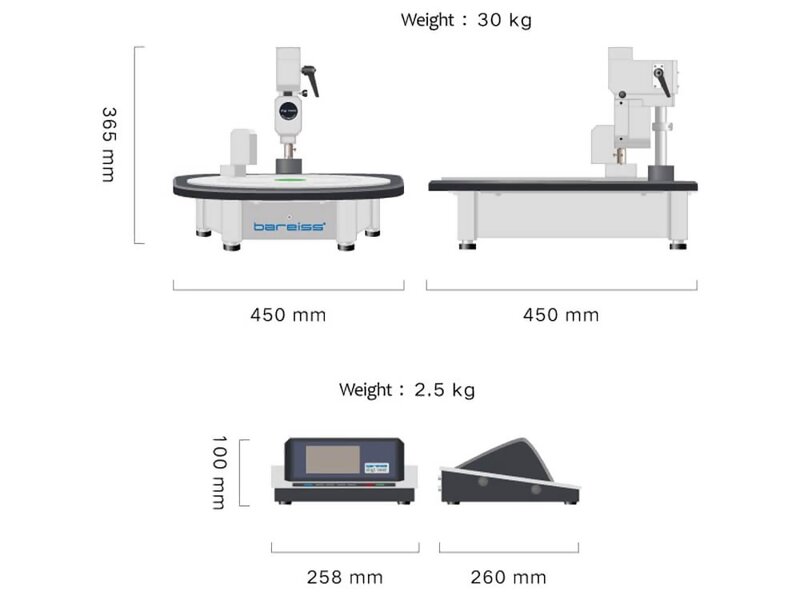

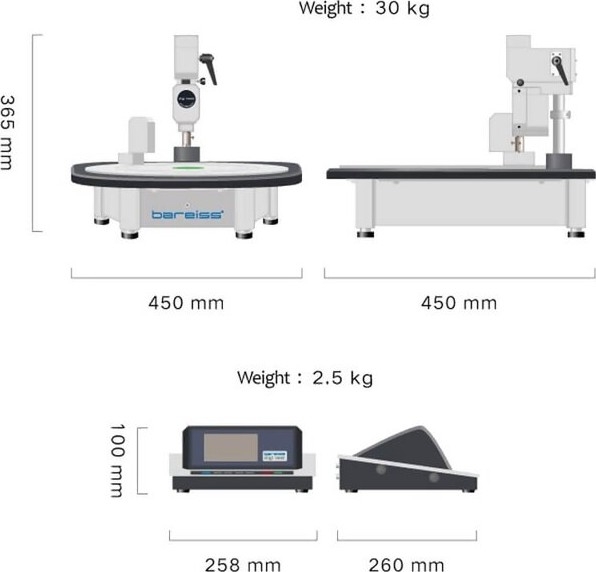

Dimensions450mm x 450mm x 365mm
Weight30kg


line
Downloads
line

Bareiss BaRotation Automatic O-Ring Hardness And Thickness Tester - Data Sheet
