    Product Description

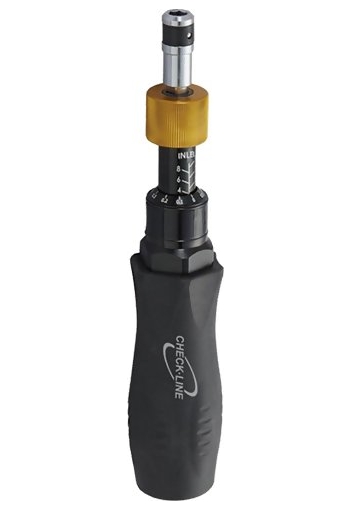

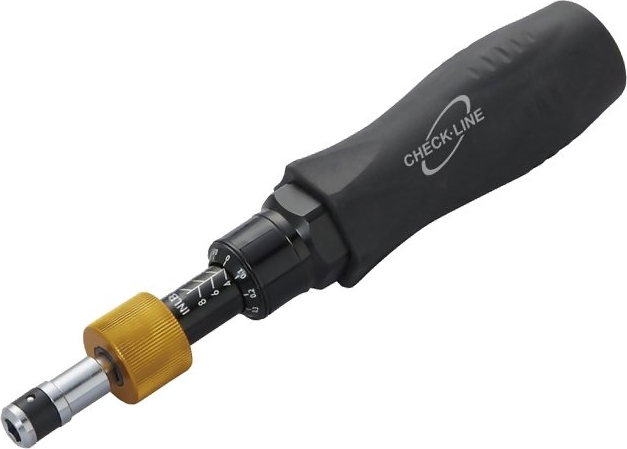

    Checkline CTS Adjustable Slipping Torque Screwdriver
    3 Ranges up to 50 lb-in

    3 Models Ranges Available

    • CTS-12: 2-12 lb-in (22 - 135 Ncm)
    • CTS-25: 5-25 lb-in (56 - 280 Ncm)
    • CTS-50: 10-50 lb-in (113 - 565 Ncm)

    The Checkline CTS is an adjustable torque screwdriver designed for precision assembly applications. A bi-directional cam slips once the set torque is reached making over-tightening impossible.

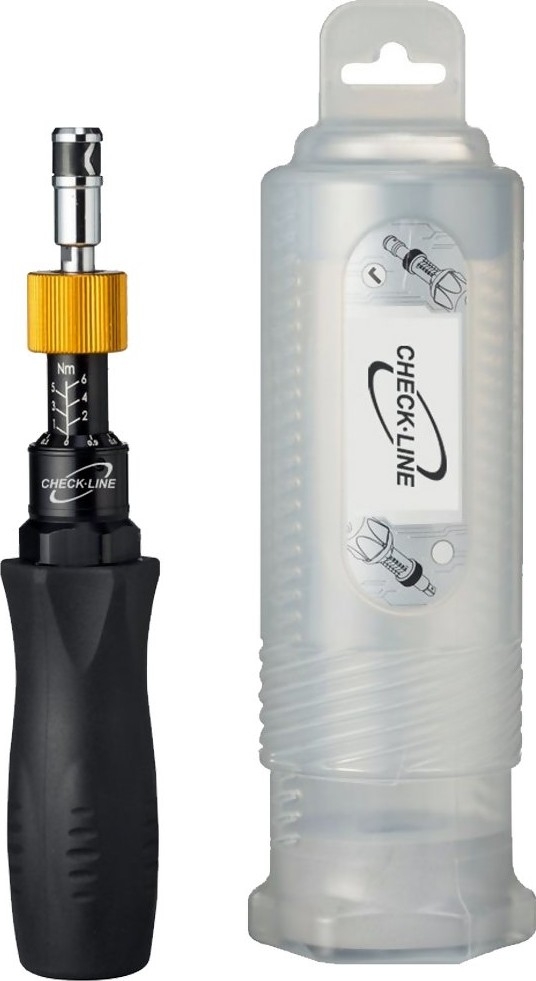

    Kit Contents

    The Checkline CTS Adjustable Slipping Torque Screwdriver includes everything needed for testing:

    • CTS Adjustable Torque Screwdriver
    • Supplied in a plastic tube
    • Instruction manual
    • Calibration certificate

    Features

    • Includes Calibration Certificate According to DIN ISO 6789
    • DS Models are Marked in both lb-in and Ncm

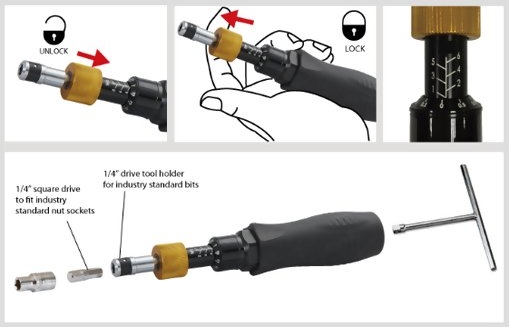

    • Uses standard 1/4" (6.3mm) hex bits
    • Clockwise & Counter Clockwise
    • Ergonomic rubber grip

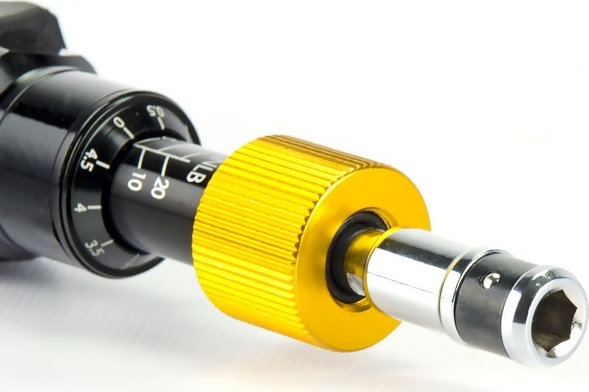

    • Precision radial ball clutch and cam
    • Dial Marked in Lb-in. Nm models available, inquire

    Specifications

    Accuracy+/-6% in accordance with ISO 6789:2003
    Warranty1 Year
    WeightCTS-12: 8.2 oz / 233 g
    CTS-25 & CTS-50: 11.9 oz / 338 g
    LengthCTS-12: 7.16 in / 182 mm
    CTS-25 & CTS-50: 7.87 in / 200 mm
    Handle Diameter1.41 in / 36 mm

    Torque Ranges

    ModelRangesGraduation
    CTS-122-12 lb-in | 22 - 135 Ncm0.1 lb-in
    CTS-255-25 lb-in | 56 - 280 Ncm0.5 lb-in
    CTS-5010-50 lb-in | 113 - 565 Ncm1 lb-in
