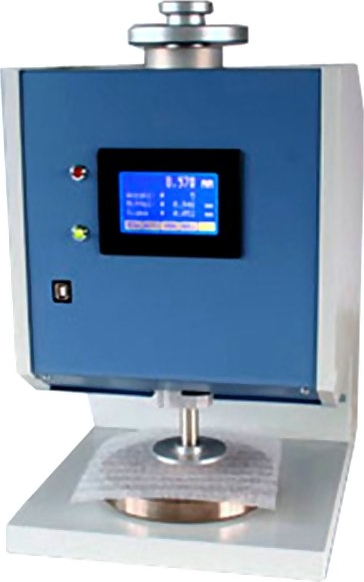

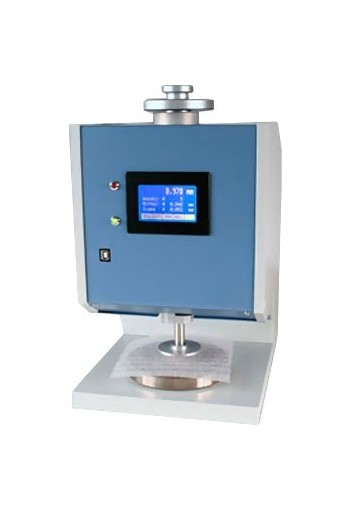

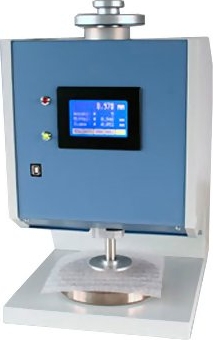

Checkline D-2010-Gi Precision Material Thickness Gauge for Rubber

See More Dial Thickness Gauges

Checkline D-2010-Gi Precision Material Thickness Gauge for Rubber

See More Dial Thickness Gauges
Call for price
    warrenty

    Product Description
    Precision Material Thickness Gauge
    Separate measuring block, incased against outside external impacts, for highest accuracy and repeatability

    Thickness Gauge to determine the material thickness of all non-woven fabrics. With these instruments the most popular checking methods can be applied for textiles, felt, geomaterials, paper, floor coverings, leather, foils, rubber etc. According to international standards DIN, EN and ISO


    line
    Kit Contents
    line

    • D-2010 Precision Material Thickness Gauge
    • Software
    • Foot pedal
    • USB cable
    • AC adapter
    • Operating instructions
    • Packing case


    line
    Features
    line

    • Rigid housing frame
    • Resolution 0.001 mm - standard
    • Separate measuring block, incased against outside external impacts, for highest accuracy and repeatability
    • Motorized feeler movement
    • Selectable measuring units mm / inch
    • Includes Calibration Certificate
    • USB for data transmission and RS 232 for printer
    • Graphic display for readings and statistics


    line
    Specifications
    line

    Measuring Range0 - 10 mm, option 0 - 25 mm
    Resolution0.01 mm
    Accuracy±0.002 mm
    Depth of Jaw160 mm
    Measuring SystemCapazitive -> Sylvac
    DisplayGraphic Display
    Measuring Unitmm or inch (switchable)
    Stroke in mmLevel 1 = 2.0, level 2 = 3.5, level 3 = 5.0, level 4 = 6.5 and level 5 = 10.5 mm (full measuring range)
    Residence Time1 - 60 seconds
    Numberof MeasuringUp to 50 per test series
    Feeler Shape and Surface PressureAccording international Standards DIN, EN and ISO
    Output SignalRS 232 for printer and USB for PC
    Temperature Range10 - 45 °C
    Air humidity85 % RH, max
    Dimensions250 x 310 x 300 mm (LxWxH)
    Weight, net (gross)23 kg (26 kg)


    line
    Available Models
    line

    ModelStandardApplicationFeeler Ø mmFeeler cm²Test Pressure
    D-2010-TDIN EN ISO 5084Textilies50.42200.1 kPa und 1 kPa
    D-2010-V1DIN EN ISO 9073-2Standard fleece56.42250.5 kPa
    D-2010-V2DIN EN ISO 9073-2Standard fleece56.42250.1 und 0.5 kPa
    D-2010-G1DIN EN ISO 9863-1Geomaterials56.42252 kPa
    D-2010-NWEN ISO 9073-2Non-woven textiles56.42250.5 kPa und 1 kPa
    D-2010-PDIN EN ISO 534Paper16250 kPa und 100 kPa
    D-2010-HYDIN EN ISO 54540Hygienic paper56.42252 kPa
    D-2010-LDIN EN ISO 2589Leather100.78549,1 kPa
    D-2010-GiRubber35.68105 kPa
       Feeler Calotte
    D-2010-FDIN 53370FoilR 30 mm0.5 N


    line
    Attachment
    line

    Code E25Higher measuring range 0…25 mm
    Code E50Higher measuring range 0…50 mm
    DKD-CalCalibration report from a DAkkS authorized laboratory
