Measuring Range: 0 - 50 mm
Resolution: 0.1 mm
Jaw Depth: 200 mm

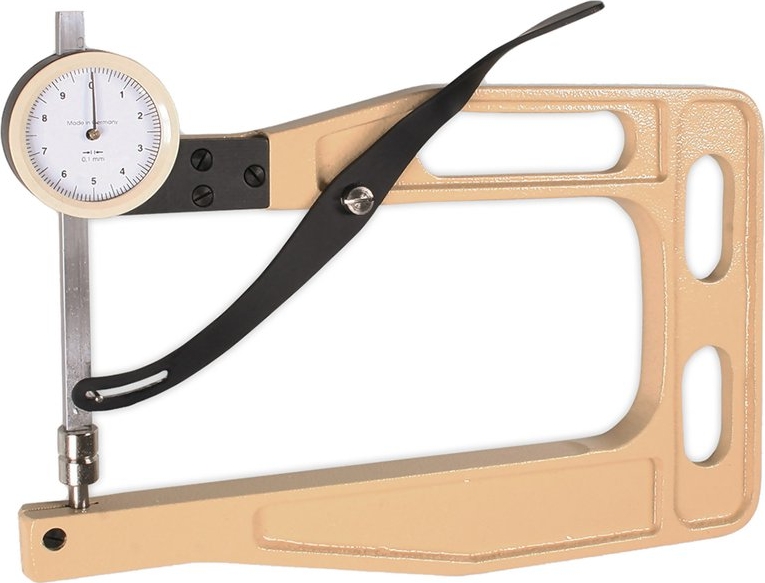

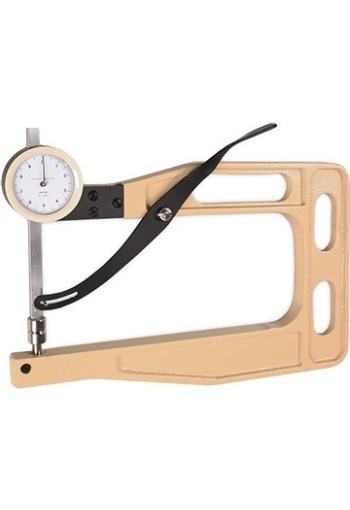

The Checkline DM-820-1 Analog Metric Dial Thickness Gauge is used to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Self closing thickness gauge with high accuracy and resolution.

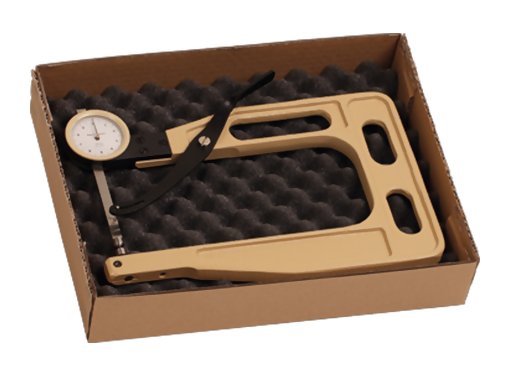

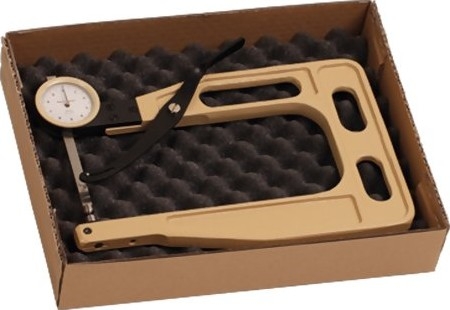

Kit Contents
- DM-820-1 Analog Dial Thickness Gauge
- Transport Packing Case
- Instructions
Features
- Opening by lifting device (lever) - self closing
- Measuring by spring force
Specifications
| Resolution | 0.1 mm |
| Measuring range | 50 mm |
| Depth of jaw | 200 mm |
| Measuring pressure | 2 N |
| Measuring principle | Self closing |
| Feeler shape | A / B / C / D / E / F / G / H / I / M |
| Weight, net (gross) | 700 g (750 g) |
Available Models

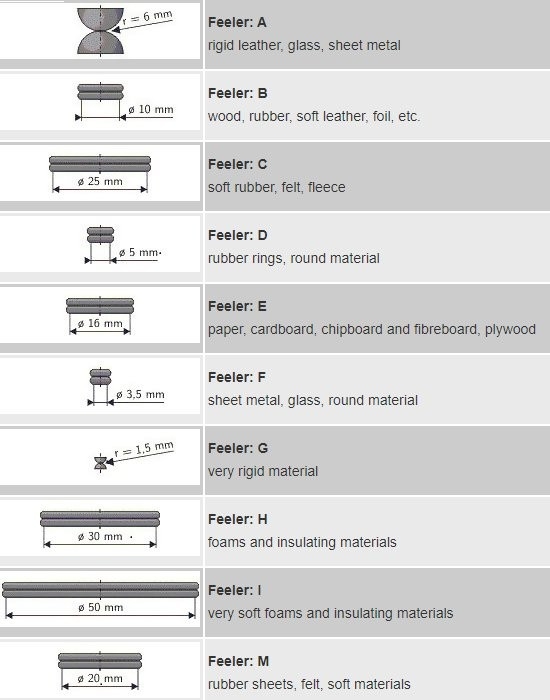

Feeler Shape
To order, please indicate the desired feeler, e.g. DM-820-1-B for gauge with feeler >B<. this means that not all feelers are included in the package!< />>
 | Feeler: A
rigid leather, glass, sheet metal |
| Feeler: B
wood, rubber, soft leather, foil, etc. |
| Feeler: C
soft rubber, felt, fleece |
| Feeler: D
rubber rings, round material |
| Feeler: E
paper, cardboard, chipboard and fibreboard, plywood |
| Feeler: F
sheet metal, glass, round material |
| Feeler: G
very rigid material |
| Feeler: H
foams and insulating materials |
| Feeler: I
very soft foams and insulating materials |
| Feeler: M
rubber sheets, felt, soft materials |
