Measuring Range: 0 - 25 mm

---

Resolution: 0.1 mm

---

Jaw Depth: 200 mm

---

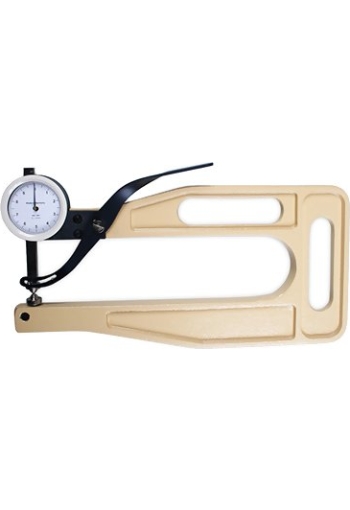

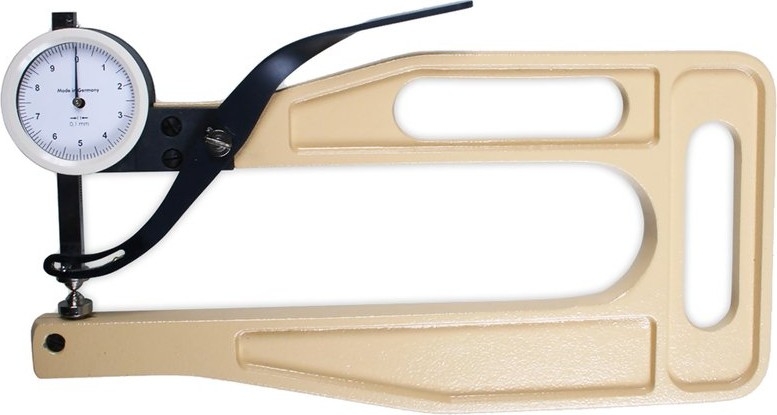

The Checkline DM-820 analog metric dial thickness gauge is used to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Self closing thickness gauge with high accuracy and resolution.

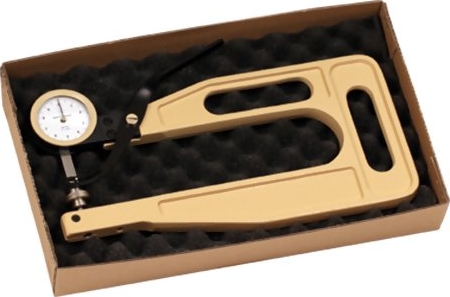

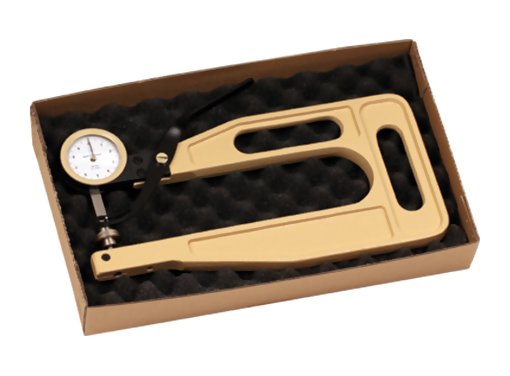

Kit Contents

---

Features

---

• Opening by lifting device (lever) - self closing
• Measuring by spring force

Specifications

---

Resolution	0.1 mm
Measuring range	25 mm
Depth of jaw	200 mm
Measuring pressure	2 N
Measuring principle	Self closing
Feeler shape	A / B / C / D / E / F / G / H / I / M
Weight, net (gross)	700 g (750 g)

Available Models

---

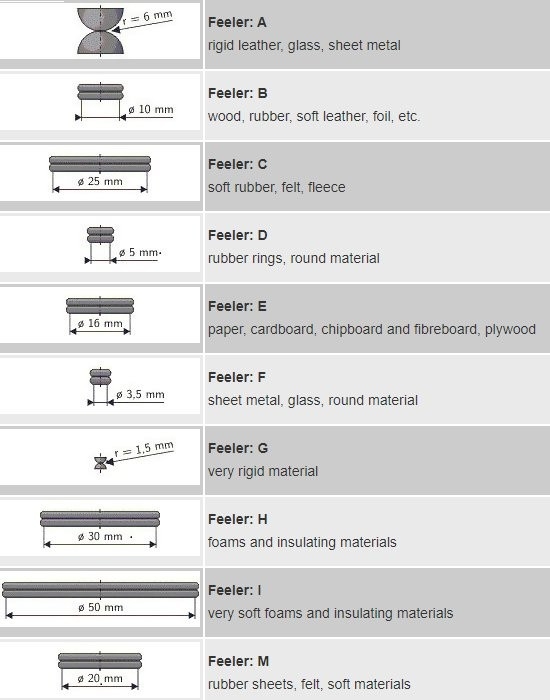

Feeler Shape

---

To order, please indicate the desired feeler, e.g. DM-820-B for gauge with feeler >B<. this means that not all feelers are included in the package!< />>

	Feeler: A rigid leather, glass, sheet metal
	Feeler: B wood, rubber, soft leather, foil, etc.
	Feeler: C soft rubber, felt, fleece
	Feeler: D rubber rings, round material
	Feeler: E paper, cardboard, chipboard and fibreboard, plywood
	Feeler: F sheet metal, glass, round material
	Feeler: G very rigid material
	Feeler: H foams and insulating materials
	Feeler: I very soft foams and insulating materials
	Feeler: M rubber sheets, felt, soft materials
