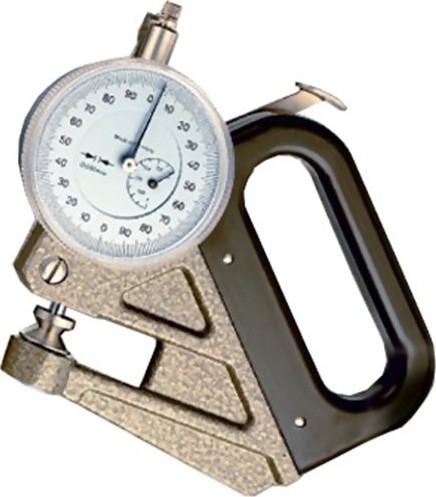

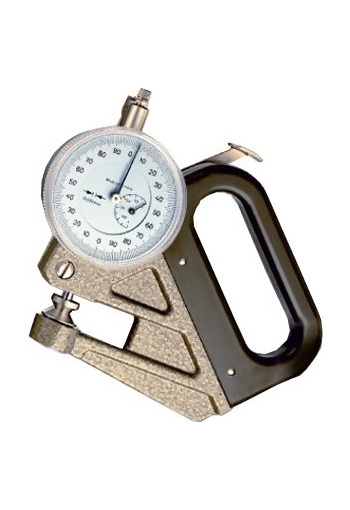

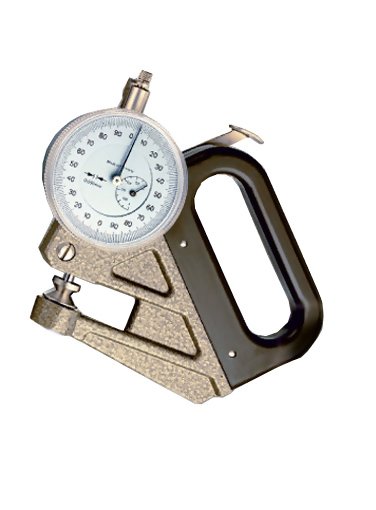

Special-purpose thickness gauge for foils and thin materials with a resolution of 0.001 mm. An insulated handle prevents transfer of heat from the hand to the movement.
Resolution: 0.001 mm (1 µm)
Measuring range: 1 mm
Accuracy: ± 5 µm
Depth of jaw: 30mm
Special-purpose thickness gauge for foils and thin materials with a resolution of 0.001 mm. An insulated handle prevents transfer of heat from the hand to the movemen

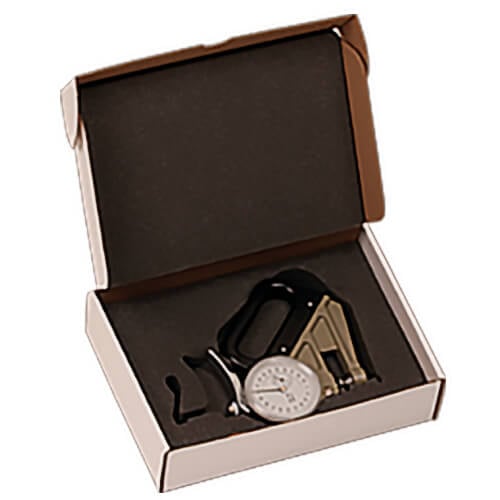

Kit Contents
- F-1000-30 Dial Thickness Gauge
- Transport Packing Case
Features
- Special purpose model with resolution of 0.001 mm (1 µm)
- Operating by lifting device - self closing
- Insulated handle prevents transfer of heat from the operators´s hand to the handle; to guarantee highest accuracy
Specifications
| Resolution | 0.001 mm |
| Measuring range | 1 mm |
| Accuracy | ± 5 µm |
| Depth of jaw | 30 mm |
| Scale diameter | 58 mm |
| Measuring pressure | 2.0 N (On request: 1.2 N or 4.5 N) |
| Scale | 1 revolution = 0.02 mm (2 x 0 - 100) |
| Feeler shape | F - 6.35 mm Ø flat |
| Measurment by spring load | Operating by lifting device - self closing |
| Weight, net | 340 g |
| Warranty | 1 year |
Feeler Shape
To order, please indicate the desired feeler, e.g. MDM-820-1 for gauge with feeler > B <. this means that not all feelers are included in the package!< />>
 | Feeler: F
sheet metal, glass, round material |
