Checkline HP-2.5F Textile Durometer, 2.5mm Indentor Ball Size, Flat Base

See More Textile Test Instruments

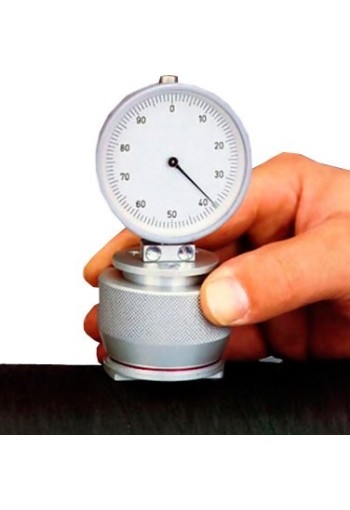

Checkline HP Textile Durometer, Yarn Package Durometer Hardness Tester

Constant-pressure indicating system assures uniform test pressure eliminating false readings due to differences between operators

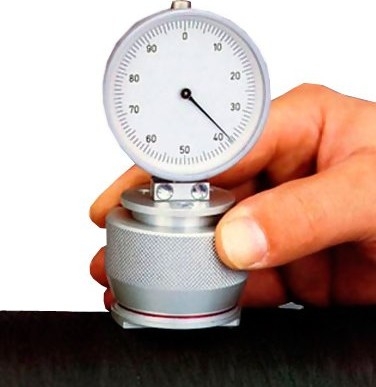

The Checkline HP Textile Durometers can accurately measure the winding density of textile bobbins, beams, spools, spindles, cones, quills, dye packages, rolls, etc.

line
Features
line

Constant-pressure indicating system assures uniform test pressure eliminating false readings due to differences between operators.

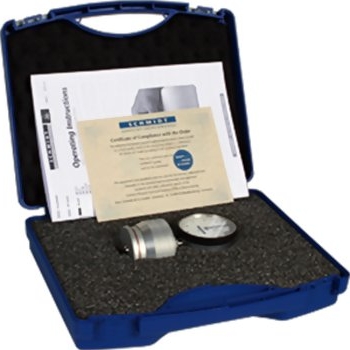

Supplied in a foam-fitted carrying case.

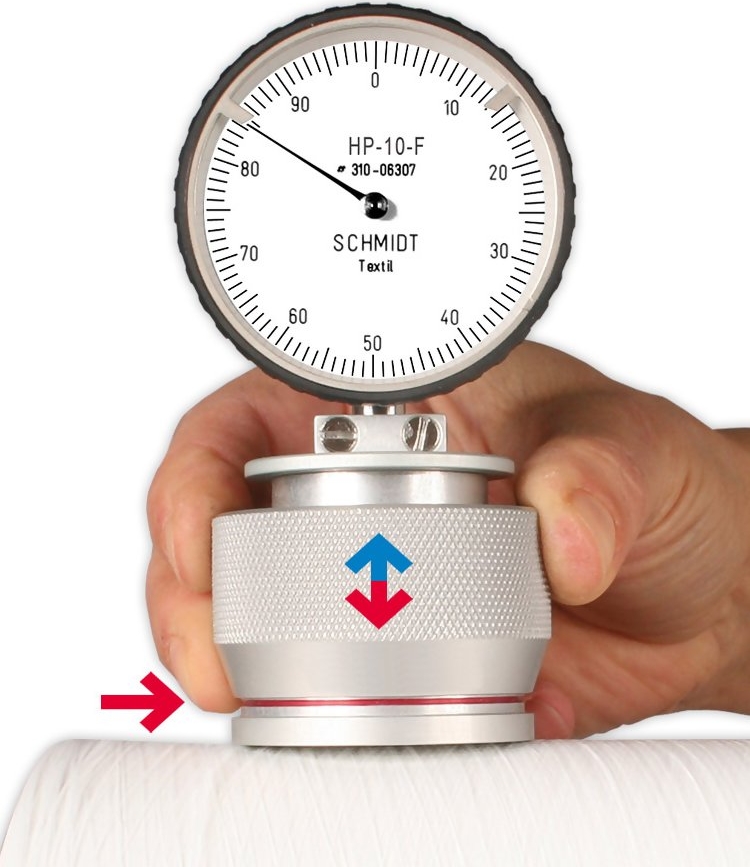

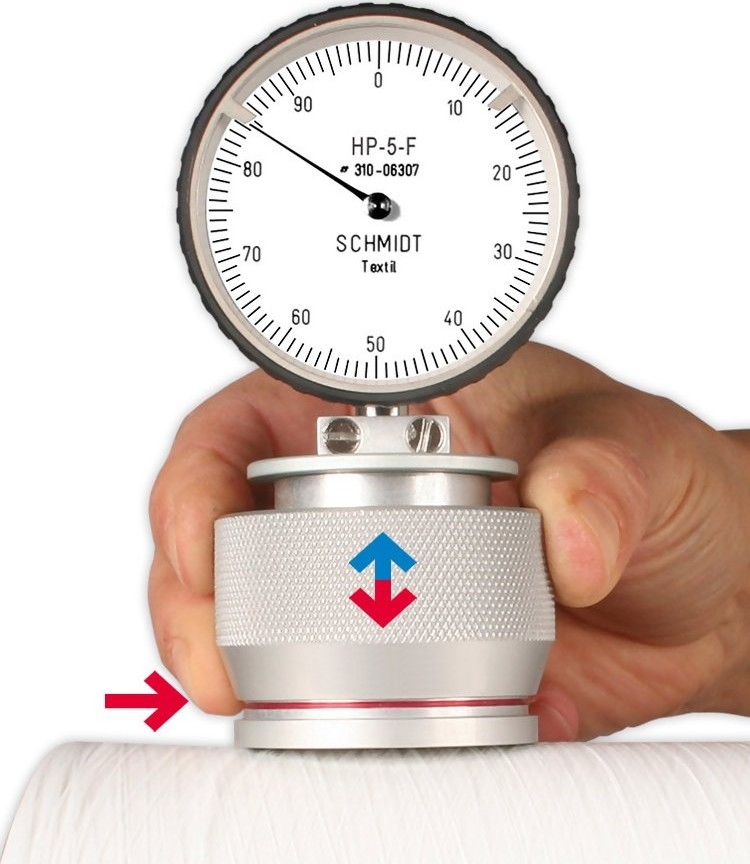

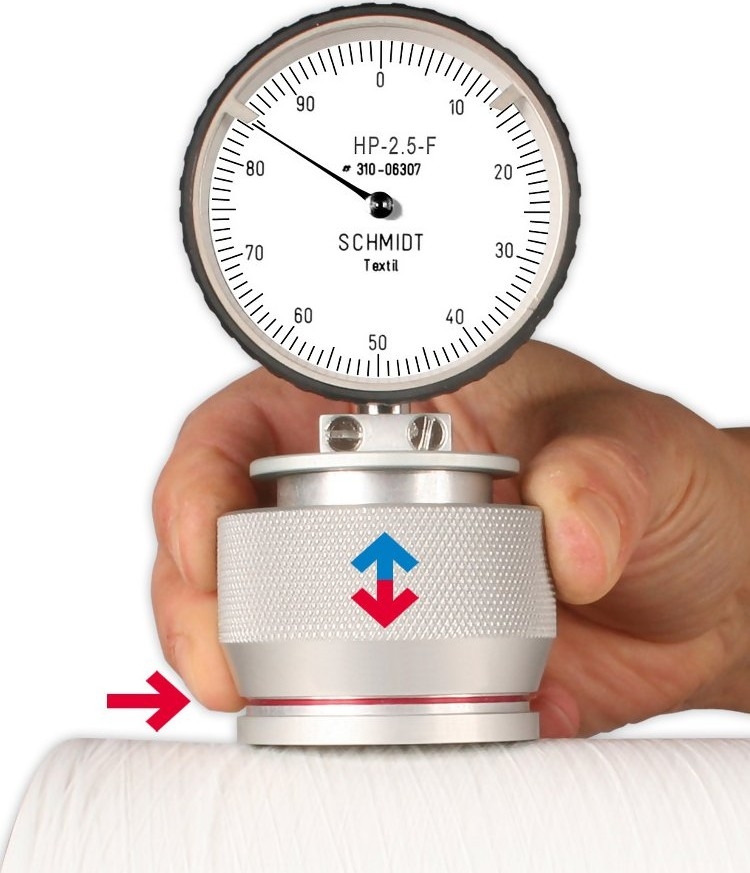

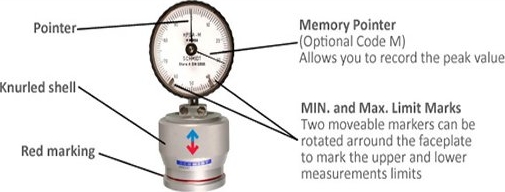

Operation is as easy as pressing the spring-loaded knurled aluminum shell down to the red line.

line
Specifications
line

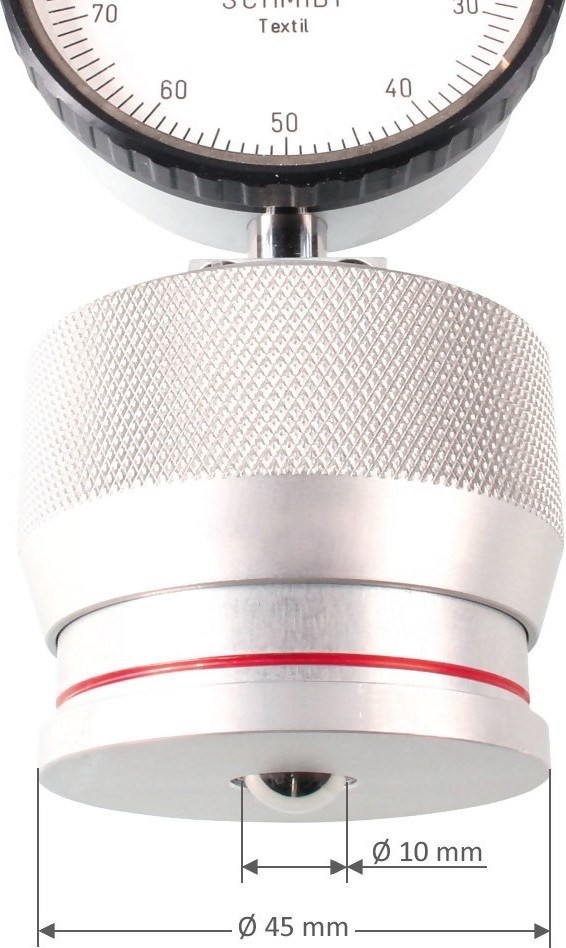

Indenter	Cone 35°, 1.3 mm Ø
Depth of indentation	0 - 2.5 mm
Test pressure	approx. 12.5 N
Measuring spring force	0.55 - 8.065 N
Display range	0 - 100 Scale
Scale diameter	56 mm
Weight, net (gross)	approx. 300g (500g)

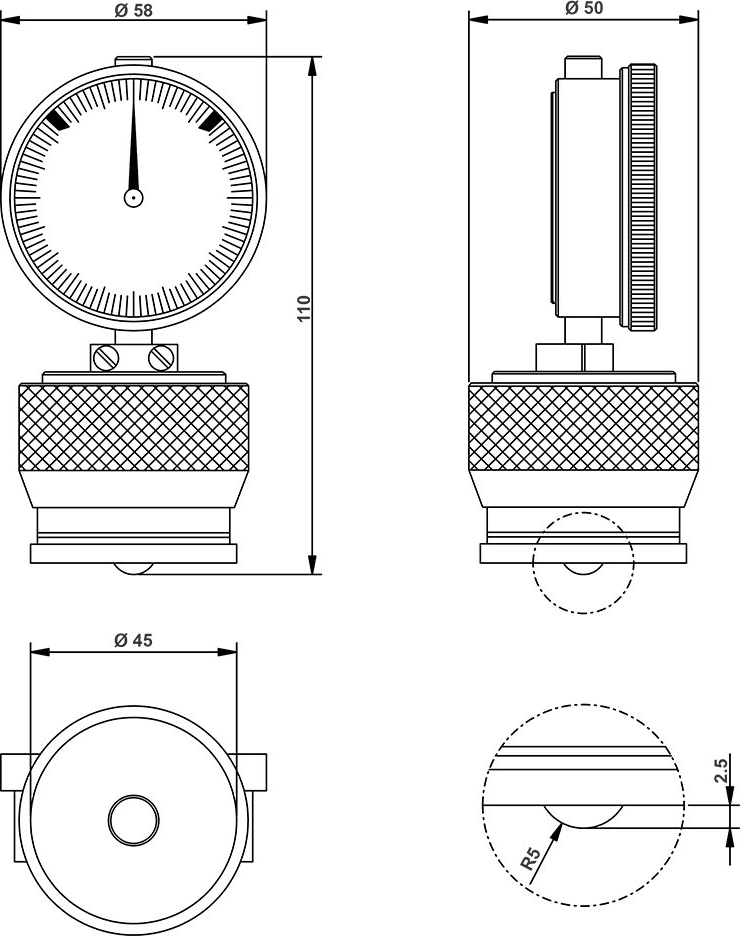

Dimensions	50 x 50 x 110 mm (L x W x H)

line
Optional Accessories
line

Model Number	Indentor Ball Size	Typical Application

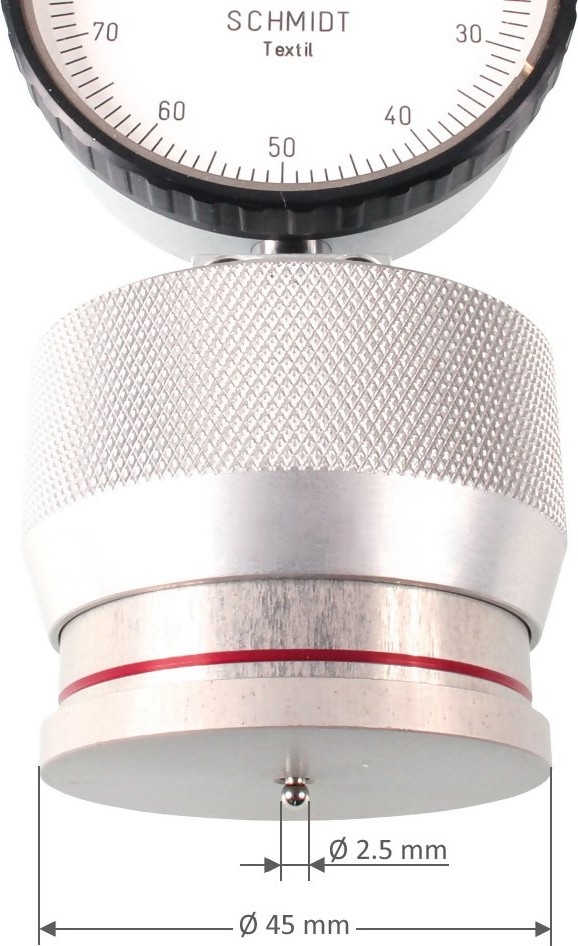

HP-2.5	2.5 mm	Closely wound synthetic, hard finish fibers and filaments.

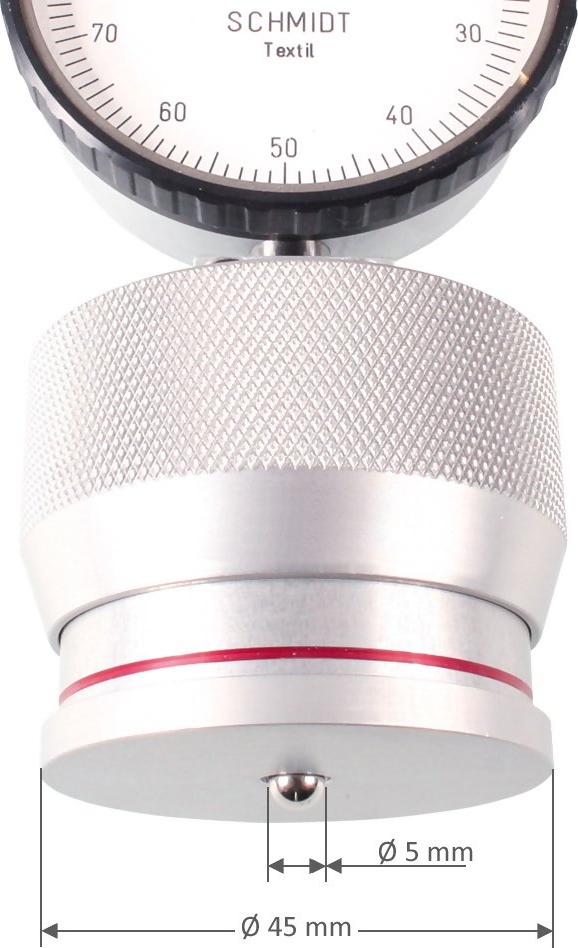

HP-5	5.0 mm	Average yarns, threads, fibers, etc., wound with moderate winding density.
HP-5F	5.0 mm	Same as HP5, except with flat base for large yarn packages over 15" (380 mm) in diameter.
HP-10	10.0 mm	Loosely wound spools of natural or synthetic yarns and fibers, bulky yarns.
HP-10F	10.0 mm	Same as HP10, except with flat base for large yarn packages over 15" (380 MM) in diameter.

line
Downloads
line

Checkline HP Textile Durometer - Data Sheet

Checkline HP Textile Durometer - Instruction Manual
