    Product Description
    Measures material thickness of non-woven fabrics, textiles, felts, geomaterials, paper, floor coverings, leather, foils, etc.

    Depth of Jaw: 40 mm
    Resolution: 0.01 mm / 0.001 inch

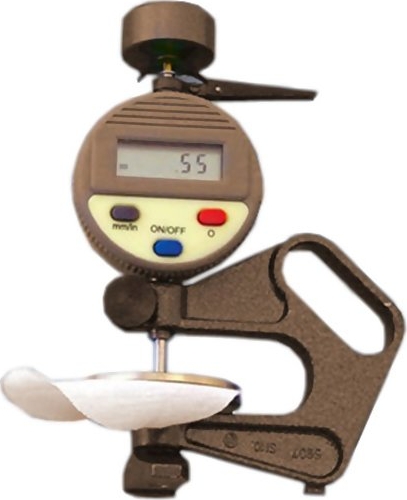

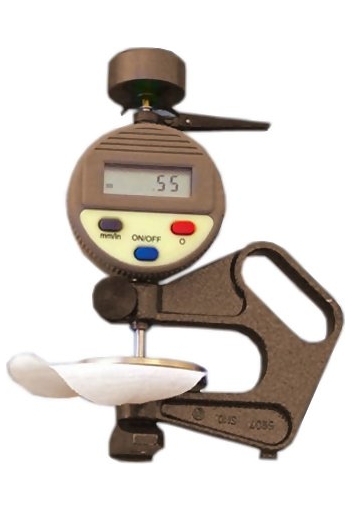

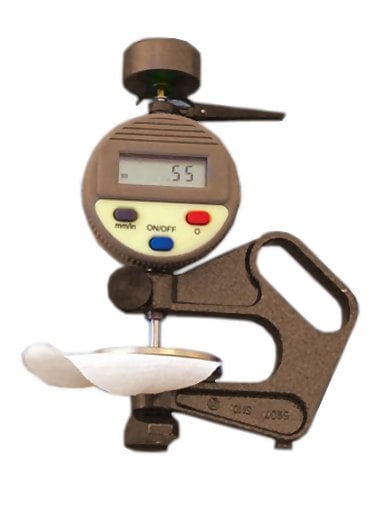

    The J-40-T thickness gauge can be used to determine the material thickness of non-woven fabrics, textiles, felts, geomaterials, paper, floor coverings, leather, foils, etc. The instrument does not meet the DIN, EN and ISO standards. The feeler shape and the pressure are corresponding to DIN EN ISO 5084 standards. This low-cost thickness gauge is suitable for quick comparison measurements.

    Features


    • Digital display with selectable units inch or mm

    Specifications


    Measuring Range0 - 10 mm
    0 - 25 mm (J-40-T-25MM only)
    Resolution0.01 mm
    Depth of Jaws40 mm
    DisplayLCD 4 Digit, 8 mm tall
    Dimensions103 x 65 x 145 mm (L x W x H)
    Weight230 g (800 g) - net (gross)

    Available Models


    ModelJ-40-TJ-40-VJ-40-L
    Standardsimilar to DIN EN ISO 5084similar to DIN EN ISO 9073-2similar to DIN 53326 (new 2589)
    Applicationtiles and Non-woven textilesStandard fleeceLeather
    Feeler Ø50.4256.4210
    Feeler Shape cm²20250.785
    Pressure1 kPA0.5 kPA50 kPA
