Running Diameter & Thickness Gauges

---

For measuring the diameter of moving wire, filaments and thickness of ribbon and narrow fabrics

---

Measuring Range: 0.001" - 0.200" (0.01-5.00mm)

---

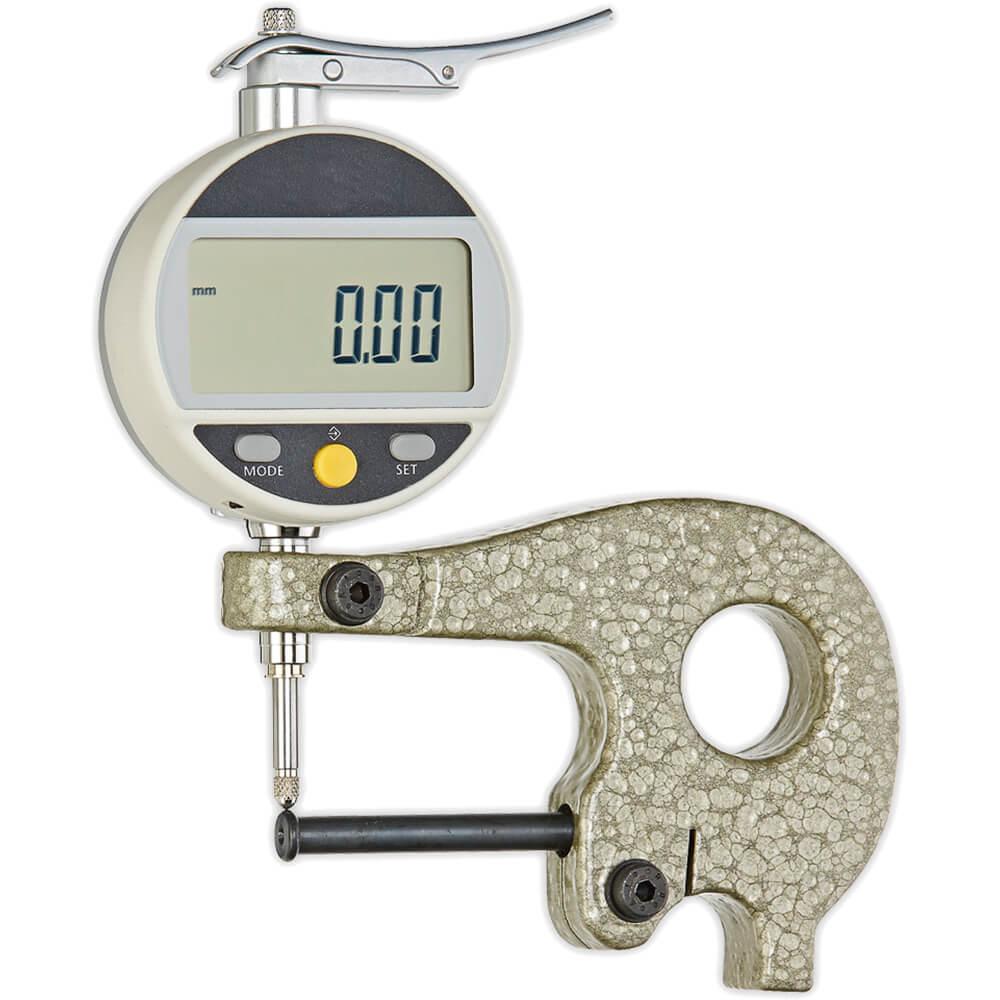

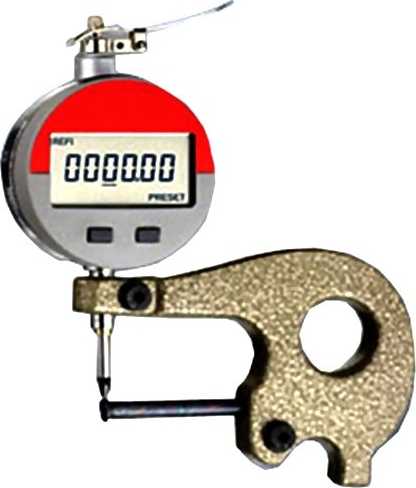

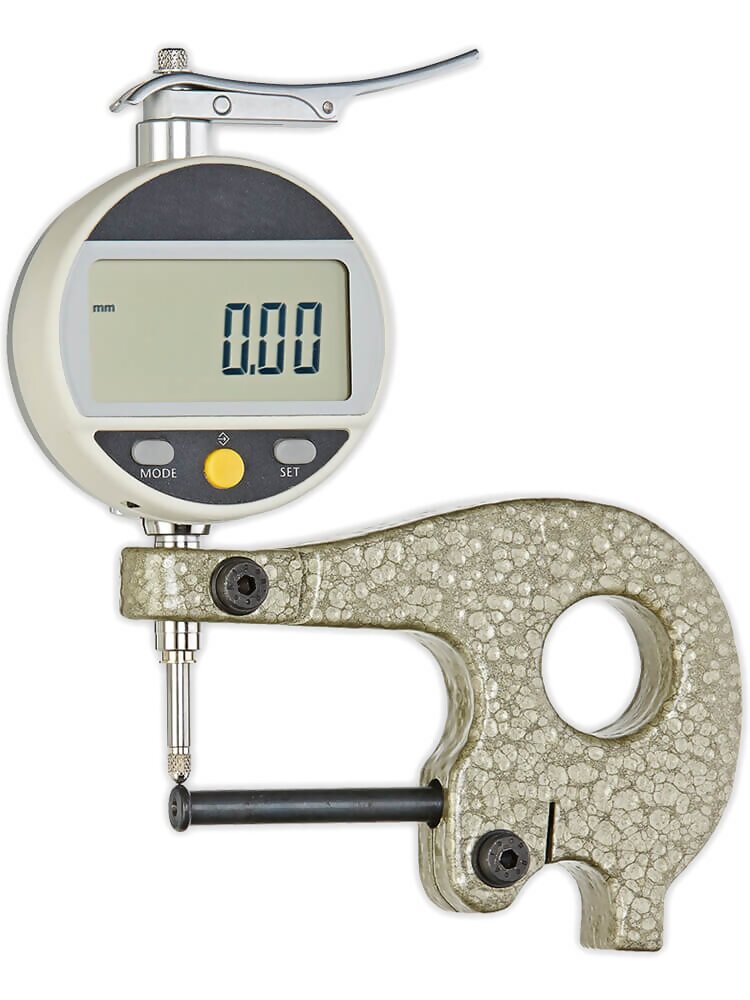

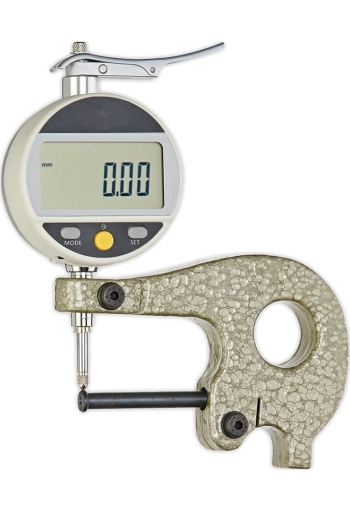

Thickness gauge for measuring tube walls.

Kit Contents

J50R Series Running Diameter & Dial Thickness Gauges transport packing case

Features

• The ground feeler is equipped with a collar 1 mm diameter for measuring tubes still have a burr from parting
• Measuring by spring force
• RS 232 output for data collection
• Opening by lifting device (lever) - self closing thickness gauge

Specifications

Resolution	0.01 mm / 0.0005 inch
Measuring range	0 - 10 mm / 0.4 inch
Depth of Jaw	50 mm
Measuring principle	Self closing
Display	LCD 6 digit, 8.5 mm high
Measuring system	Capazitiv (Sylvac)
Temperature range	10 - 45 °C
Battery	3 V Lithium, CR 2032
Data output	RS 232, galvanic isolation
Weight, net (gross)	300 g (350 g)

Downloads

Checkline JD-50-W Digital Thickness gauge for measuring tube walls - Instruction Manual
