Checkline JZ50RSO Running Diameter / Thickness Gauge, 0.0005-0.2000", with Flanges, 0.0005" resolution (Inch Model)
Discontinued
- Return Policy: Non-returnable item
- Availability: Usually ships within 6-8 weeks
- FREE Ground Shipping
View Faster Delivery Options
Resolution: 0.001”, 0.01 mm, 0.005 mm

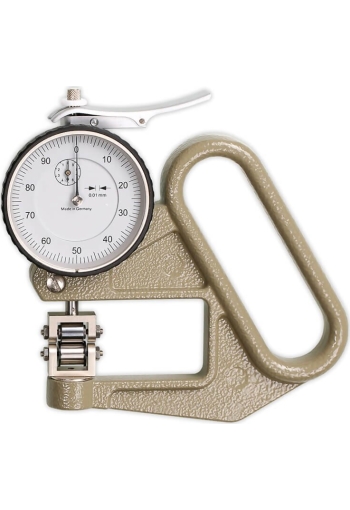

Ball bearing mounted cylindrical rollers, in lieu of flat anvil surfaces, make these dial micrometers ideal for measuring the diameter or thickness of slowly moving wire, filaments, foil, ribbon, narrow fabrics, etc. – without stopping the manufacturing process. |  |
Kit Contents
- J50R Series Running Diameter & Dial Thickness Gauges
- transport packing case
Features
- Precision steel rollers for wire speeds up to 500 ft/min
- Lightweight and compact

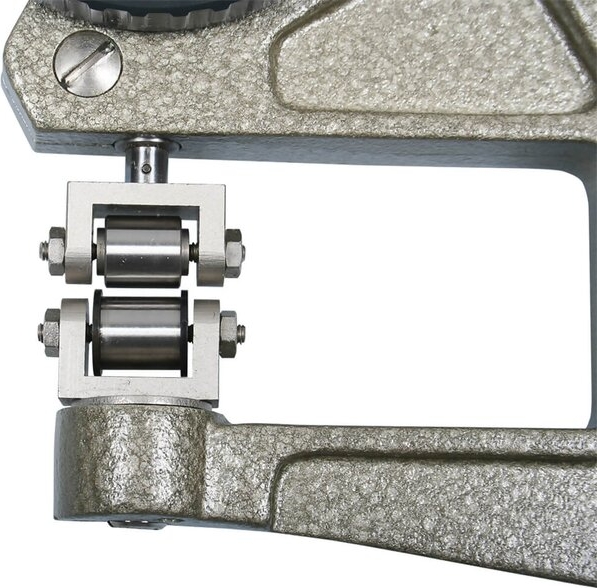

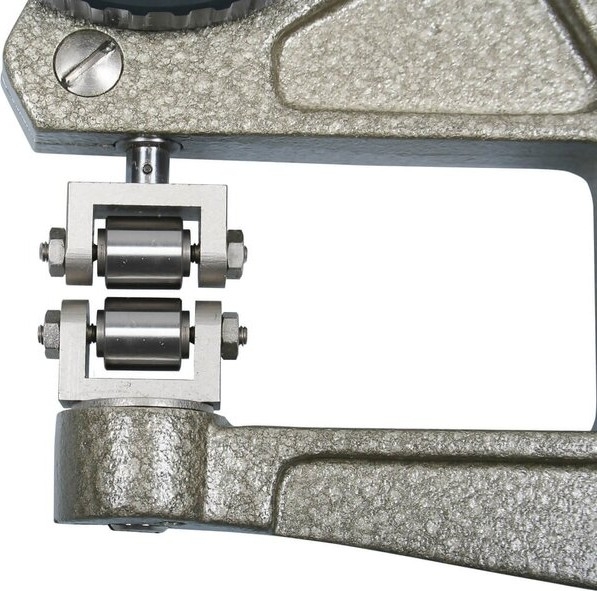

- Available with or without roller flanges
- Inch or mm versions
- Pocket-Sized
- Traceable certificate optionally available
Specifications
| Model | Measuring Range Metric | Resolution | Lower Roller Flanges |
| J50R | 0.01 mm - 5.00 mm | 0.01 mm | Yes |
| J50RO | 0.01 mm - 5.00 mm | 0.01 mm | No |
| J50RS | 0.005 mm - 5.00 mm | 0.005 mm | Yes |
| J50RSO | 0.005 mm - 5.00 mm | 0.005 mm | No |
| Model | Measuring Range Inch | Resolution | Lower Roller Flanges |
| JZ50R | 0.001" - 0.200" | 0.001" | Yes |
| JZ50RO | 0.001" - 0.200" | 0.001" | No |
| JZ50RS | 0.0005-0.2000" | 0.0005" | Yes |
| JZ50RSO | 0.0005-0.2000" | 0.0005" | Yes |
| Jaw depth | 2 inches (50 mm) |
| Spring force | 3.6 ozf (1 Newton) |
| Scale diameter | 2.25 inches (50 mm) |
| Roller width | 0.34 inches (8.70mm) |
| Maximum line speed | 164 yd/min (150 m/min) |
Note: For ribbon and narrow fabric material, use models without flanges.
