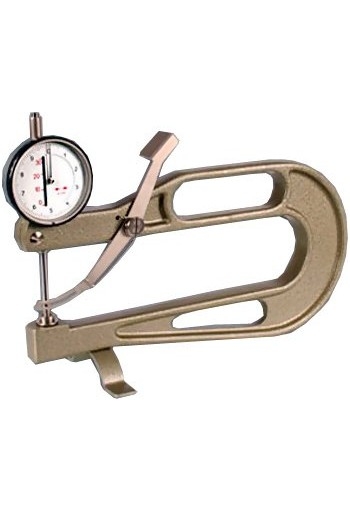

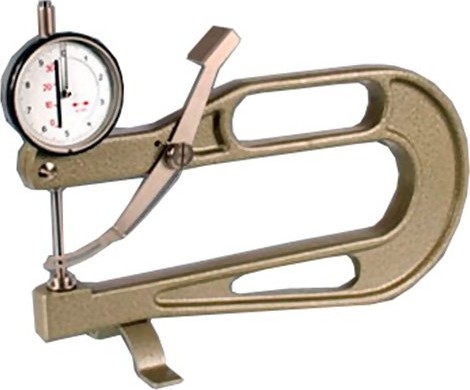

Analog Dial Thickness Gauge
Measuring Range: 0 - 30 mm / 0 - 1.00 inch
Resolution: 0.1 mm / 0.001 inch
Jaw Depth: 200 mm / 7.87 inch
The Checkline K-200 thickness gauge features an easy to read analog display along with the high accuracy.
The K-200 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.
The K-200 is ideal for determining the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc.
Standard spring Force is 1.8N, however a Reduced Force Version offering 0.9N as well as a Increased Force Version offering 2.5N is available.
Kit Contents
- K-200 Analog Dial Thickness Gauge
- Battery
- Packing Case
Features
- Thickness gauge K-200 features an easy to read analog display along with the high accuracy
- The thickness gauge is available with 5 different feelers, which can be found below
- Measuring by spring force
- Opening by lifting device – self closing thickness gauge K-200 Thickness gauge with lifting device
- Swing out foot for on-table operation
Specifications
| Resolution | 1.00" (KZ models)
30 mm (K models) |
| Measuring Range | 0.001" (KZ models)
0.1 mm (K models) |
| Depth Of Jaw | 7.87 in (200 mm) |
| Scale Diameter | 2.3 in (58 mm) |
| Measuring Pressure | 2 N (Optional: 1 N or 4 N) |
| Feeler Shape | Select Feeler "A", "B", "C", "D" or "E" |
| Measuring Principle | Self closing |
| Weight, net (gross) | 1.5 Lbs (700 g) |

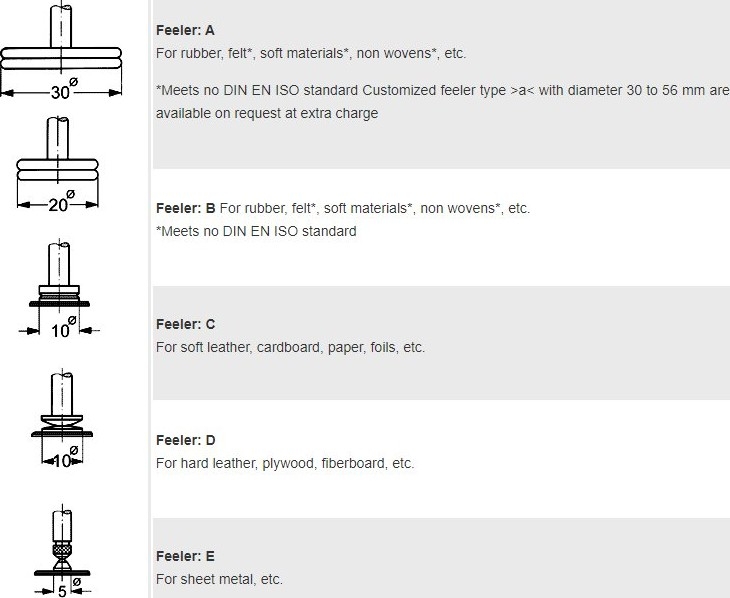

Feeler Shape
 | Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard Customized feeler type > a with diameter 30 to 56 mm are available on request at extra charge |
| Feeler: B For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard |
| Feeler: C For soft leather, cardboard, paper, foils, etc. |
| Feeler: D For hard leather, plywood, fiberboard, etc. |
| Feeler: E For sheet metal, etc. |
