Measuring Range: 0 - 30 mm / 0 - 1.00 inch
Resolution: 0.005 inch / 0.1 mm
11.80 inch (300 mm) Jaw Depth

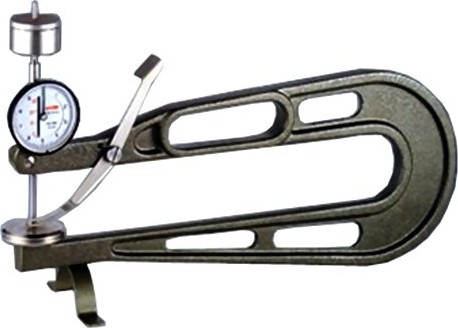

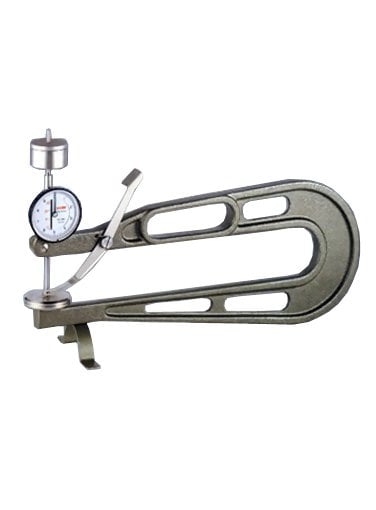

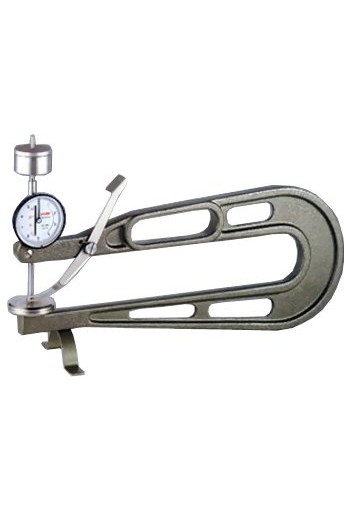

The Checkline K-300 thickness gauge features an easy to read analog display along with the high accuracy.
The K-300 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.
Kit Contents
- K-300 Analog Dial Thickness Gauge

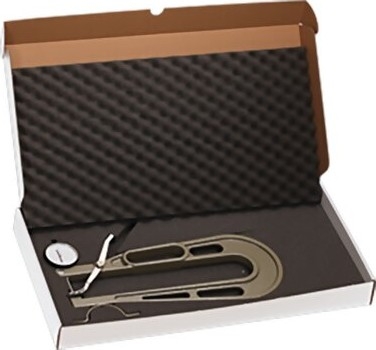

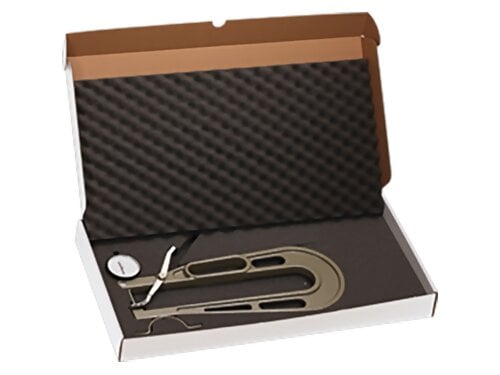

- transport packing case
Specifications
Range | 30 mm (K models) 1.00" (KZ models) |
Resolution | 0.1 mm (K models) 0.001" (KZ models) |
Accuracy | ± 0.2% Full Scale |
Range per revolution | 0.4" (10 mm) |
Bezel-Ø | 2.3" (58 mm) |
Depth of Jaw | 11.80" (300 mm) |
Feeler Typees | Select Feeler "A", "B", "C", "D" or "E" |
Test Pressure | 2 N (Optional 1 N or 4 N) |
Weight | 2.2 Lbs (1 Kg) |

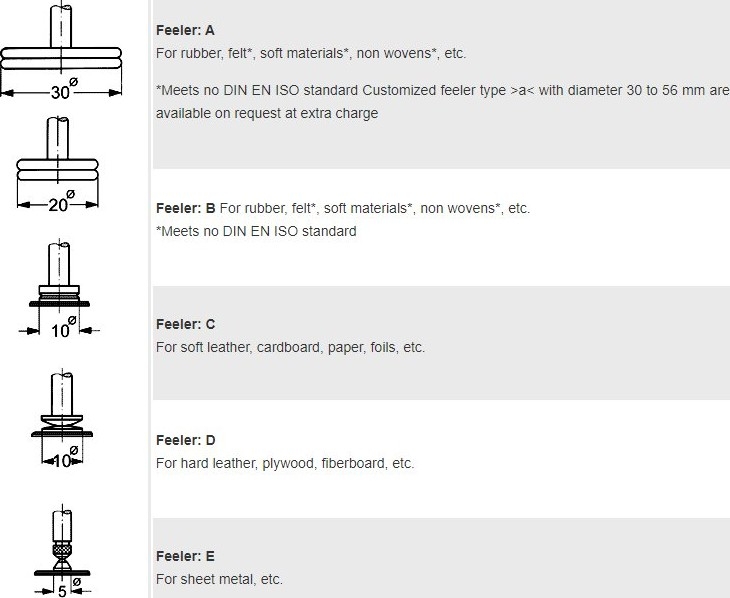

Feeler Shape
 | Feeler: A For rubber, felt*, soft materials*, non wovens*, etc. *Meets no DIN EN ISO standard Customized feeler type >a |
