Checkline LDT Ultrasonic Air Leak Detector

---

Ultrasonic Leak Detector designed for locating leakages in compressed-air systems, valves, fittings, steam pipelines etc.

---

Measuring Range: Leaks larger than 0.1 mm ⌀

---

The Checkline LDT ultrasonic air leak detector is designed for pinpointing air leakages, especially in noisy locations, where the leak is not audible by ear. It is also useful for locating leaks in compressed-air systems where air escapes at frequency which humans cannot hear. The sound, which is created by air escaping from a leak, is detected by an ultrasonic receiver and converted to an audible sound and is displayed with an optical indication on the instrument.

The LDT can be used to locate leaks in

• pneumatic systems
• vacuum equipment
• valves and fittings
• steam pipes
• oxygen sockets in hospitals
• air conditioning systems in automotive vehicles
• Door and window seals of cars, pressurized containers, ships, trucks, buses, trains, airplanes etc.

For difficult to reach locations we offer a longer goose neck probe as well as a parabolic dish with integrated ultrasonic sensor and laser pointer. The integrated laser pointer makes it easy to trace leaks over distances from 20m to more than 100m for bigger leaks. The parabolic dish is made of transparent plastic, so that the leaks are easily visible. All incoming ultrasonic waves are reflected from the dish and focused at the ultrasonic receiver. Noise is ignored.

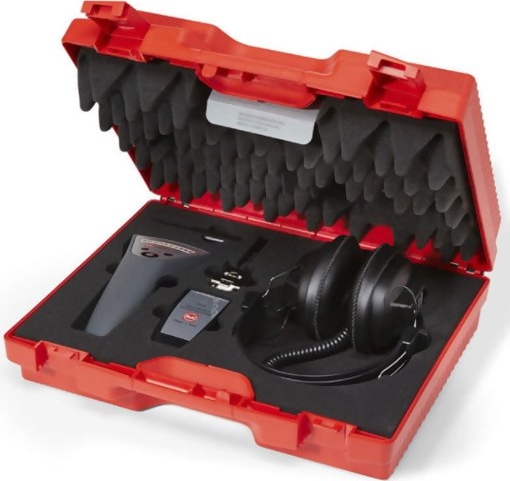

Kit Contents

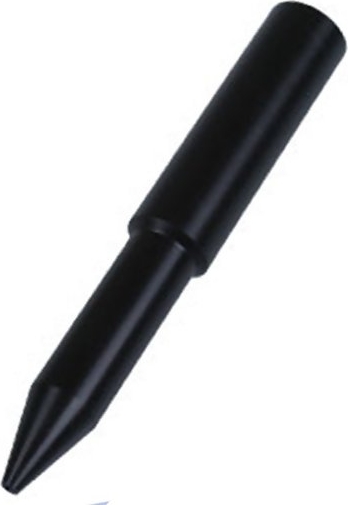

LDT Ultrasonic Leak Detector 100mm probe Pin-point detection probe Headphones Calibration certificate Carrying case

Features

• Fast and Easy to use
• Reduces running costs and consumption of compressed air
• Increases the reliability of pneumatic systems
• Optional Parabolic Reflector (p/n 55006H) For detecting leaks in the range 5-20 meters (15 - 60 ft), supplied with Laser Pointer to identify source of leak.

Specifications

Power supply	9V battery
Display	LED Indicator
Dimensions	180 x 90 x 60 mm
Weight	250g
Protection class	IP 67
Housing material	ABS with electromagnetic shield
Operating temperature	0-55 C
Approval mark	CE ( tested against electromagnetic disturbances and emissions)

Operation

1. Attach probe to LDT.
2. Plug in and put on the headphones.
3. Press power button.

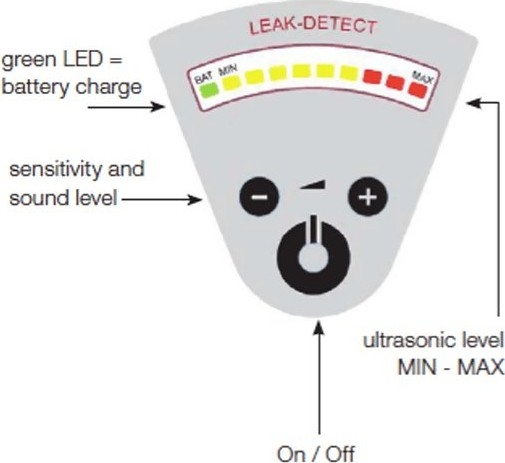

4. Adjust volume until you hear some hissing in the head phones. The first yellow LED will light up.

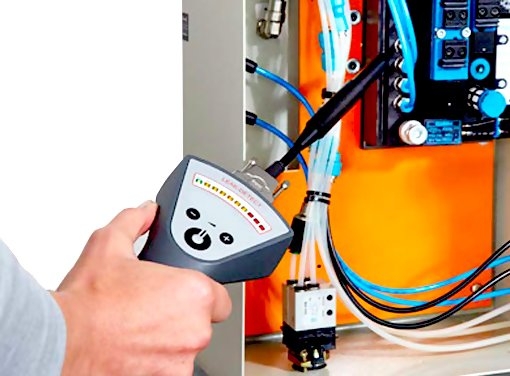

5. Direct the sensor to the area of equipment that needs to be checked. These areas are normally tubes, fittings and screws. For longer distances, the laserpointer inside the parabolic dish is a helpful direction finder.
6. A leak has been detected if the audio signal increases and the LED signal changes into the red area.

Optional Accessories

• 55001H - Long Gooseneck Probe, 260mm
• 55003H - Ultrasonic Transmitter for leakage checks inside sealed compartments
• 55004H - 9V rechargeable battery with charger

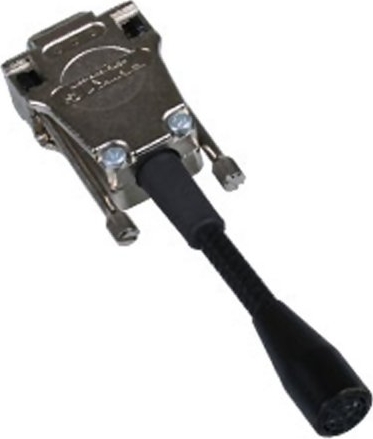

• 55005H - Short Gooseneck Probe, 85mm
• 55006H - Parabolic Reflector/Dish with laser pointer

Downloads

Checkline LDT Ultrasonic Leak Detector - Instruction Manual
