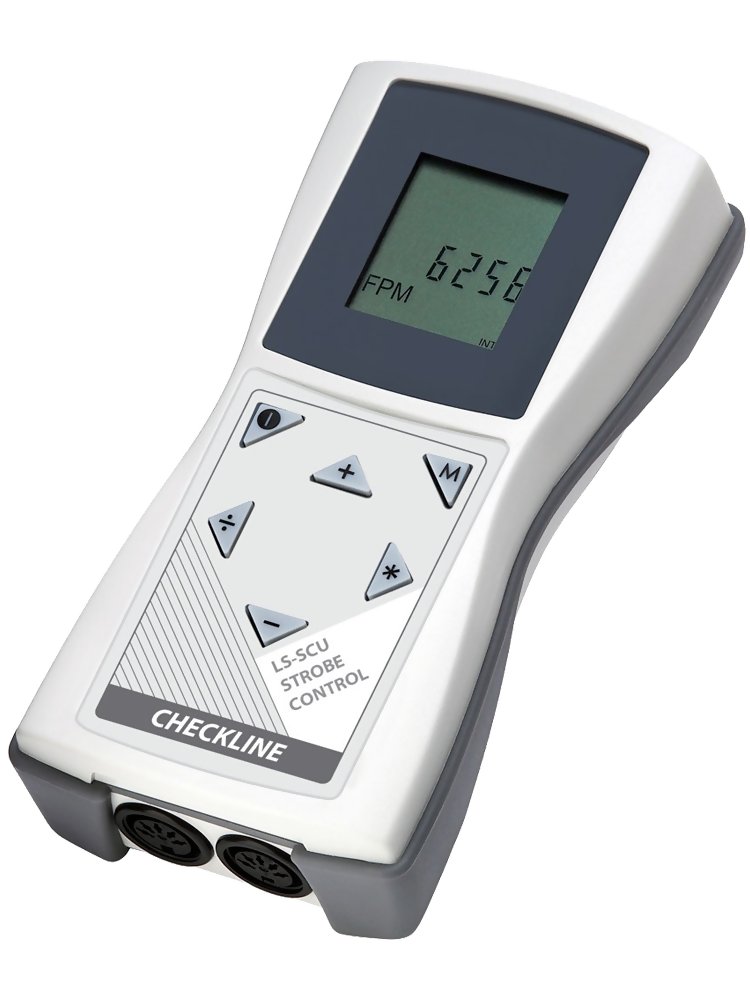

    Checkline LS-SCU Remote Control Unit and Connection Cable



    The Checkline LS-SCU Remote Control Unit and Connection Cable is designed to provide a programmable frequency output for use to Control Xenon and LED Stroboscopes. Programmable adjustments include flash rate (FPM or Hz), Pulse Duration (usec), Pulse Degree, Delay (msec), Phase Shift (Degree), Divider and more.

    All controls are accessed via 6 tactile buttons on the front of the controller with all values shown on a alpha/numeric LCD Display. Unit is 24V DC powered and is supplied with 5 ft. connection cable.

    Universal Power Supply with 4 plug adapters (for use with 100–265V AC) available as an option

    Remote Control Unit


    line
    Specifications
    line

    Frequency30.0 - 999.9 FPM ± 0.1
    1,000 - 600,000 FPM ±1
    0.5 - 999.9 Hz ± 0.1
    1,000 - 10,000 HZ ± 1
    Pulse Widthabsolute (± 1) and
    relative (± 1°) adjustable
    Phase Shift0 - 359° ±1°
    Delay0.0 - 2,000.0 ms ± 0.1 ms
    Divider1 - 255 ± 1
    Power Supply10 - 32 V DC, with reverse polarity protection
    Current intake<50 mA
    Trigger Input
    Low Level< 1 V
    Level3 - 32 V, NPN + PNP
    Minimum pulse Length50 µs
    Reverse voltage protectionYes
    Trigger Output
    PrincipleShort circuit and overvoltage proof transistor output to the optocoupler control, non-isolated
    Pulse Lengthadjustable
    Housing MaterialABS / EPDM

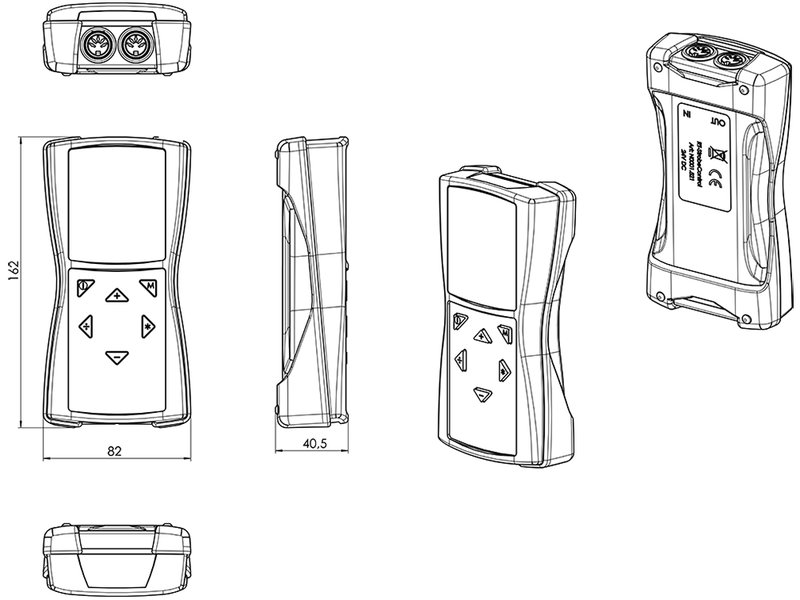

    Dimensions162x82x40 mm / 6.4x3.3x1.6 inch
    Weight230 g
    Ambient Temperature0 - 50 °C (32 - 122 °F)
