For determining the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc

---

Measuring Range: 2" (50 mm)

---

Resolution: 0.005" (0.01 mm)

---

Jaw Depth: 7.87" (200 mm)

---

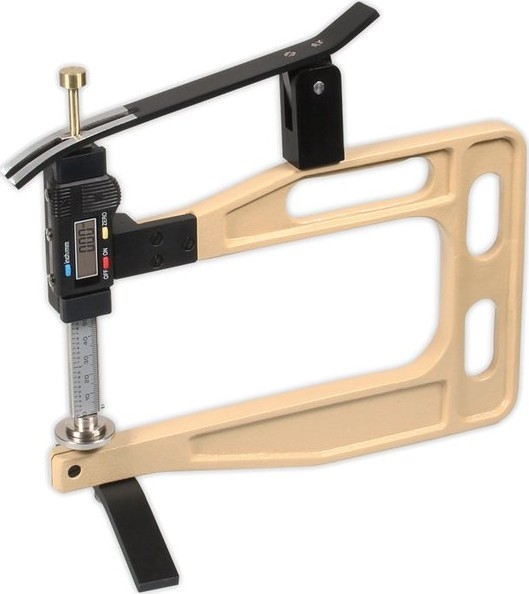

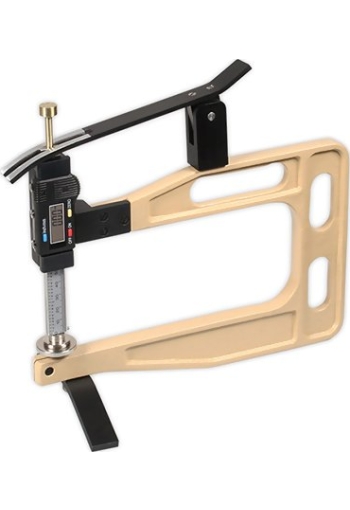

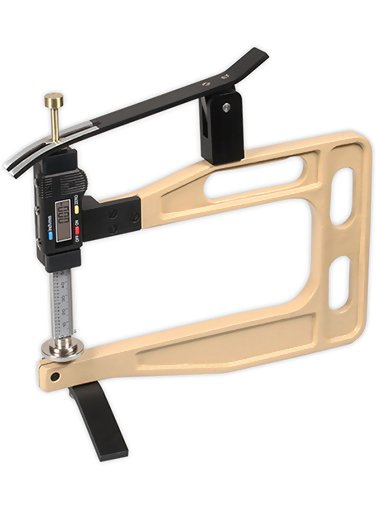

The Checkline MDM-820-1 Digital Thickness Gauge is used to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Self closing thickness gauge with high accuracy and resolution.

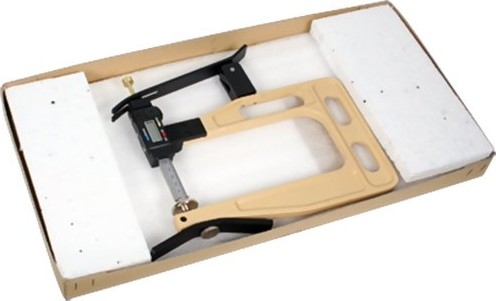

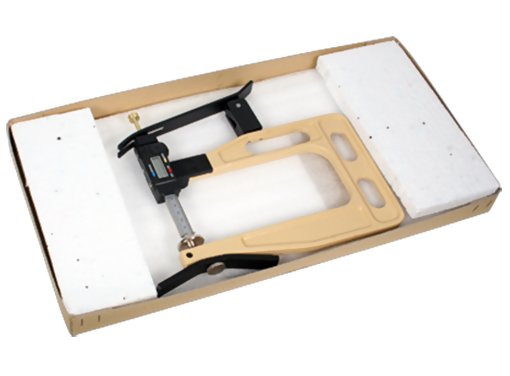

Kit Contents

---

Features

---

• Thickness gauge with RS 232 output for data collection
• Measuring by spring force
• Opening by lifting device (lever) - self closing
• LCD display with user selectable units (mm or inch)
• Zero setting by pushing a button
• Calibration certificate included

Specifications

---

Resolution	0.0005 in (0.01 mm)
Measuring range	2 in (50 mm)
Depth of jaw	7.87 in (200 mm)
Measuring pressure	2 N
Measuring principle	Self closing
Feeler shape	A/B/C/D/E
Display	LCD 7 mm high
Measuring system	Sylvac
Weight, net (gross)	700 g (750 g)

Available Models

---

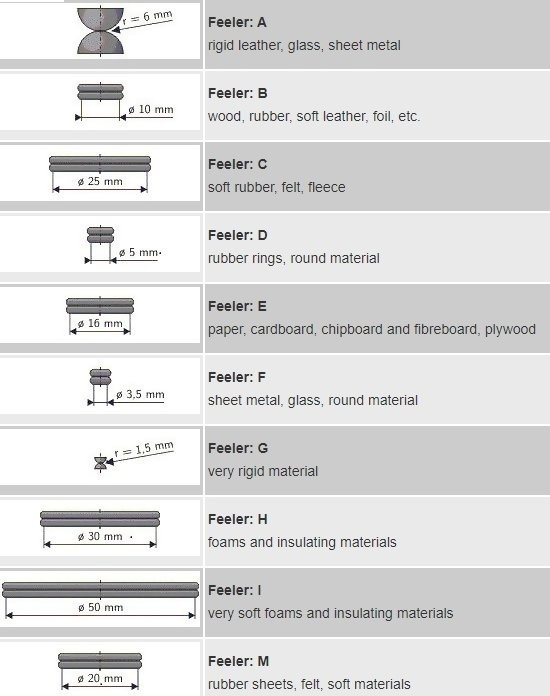

Feeler Shape

---

To order, please indicate the desired feeler, e.g. MDM-820-1 for gauge with feeler > B <. this means that not all feelers are included in the package!< />>

	Feeler: A rigid leather, glass, sheet metal
	Feeler: B wood, rubber, soft leather, foil, etc.
	Feeler: C soft rubber, felt, fleece
	Feeler: D rubber rings, round material
	Feeler: E paper, cardboard, chipboard and fibreboard, plywood
	Feeler: F sheet metal, glass, round material
	Feeler: G very rigid material
	Feeler: H foams and insulating materials
	Feeler: I very soft foams and insulating materials
	Feeler: M rubber sheets, felt, soft materials
