Material Thickness Gauge

---

Conveniently performs thickness measurement on rubber, fabrics, foams, tapes/films and a wide assortment of other soft materials

---

Range: 0-1 inch (0-25 mm)

---

Range: 1" / 25mm - (Extend Range Using Gauge Blocks)
Resolution: 0.0001" / 0.002mm

The MTG Material Thickness Gauge For Textiles, Non-Wovens, Fabrics & Soft Materials accurately measures thickness of textiles, non-wovens, technical fabrics and many other materials. Using specific diameter presser foot (feeler) and mass (weight) it can measure according to ASTM D1777, ISO 5084, D1621, D5199, D461, D751-06, D3652, ISO 9863-1, ISO 964-1 (2 kPa only) and many other international testing standards.

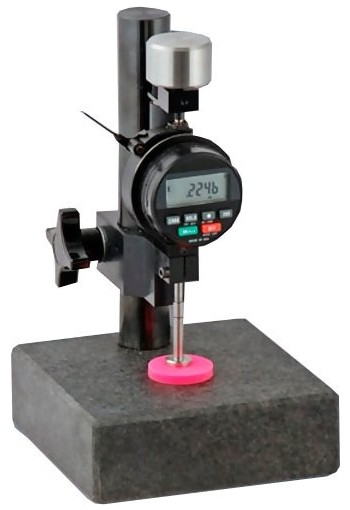

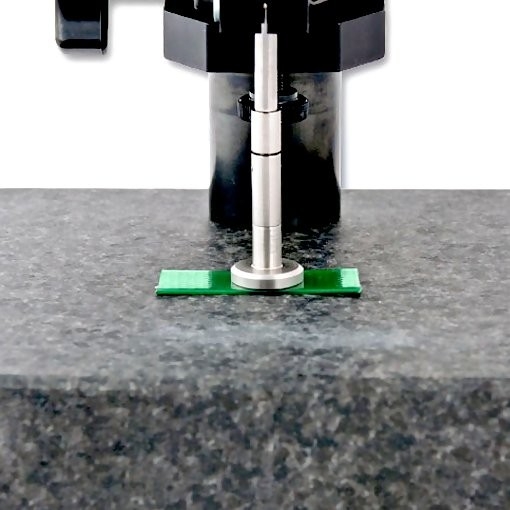

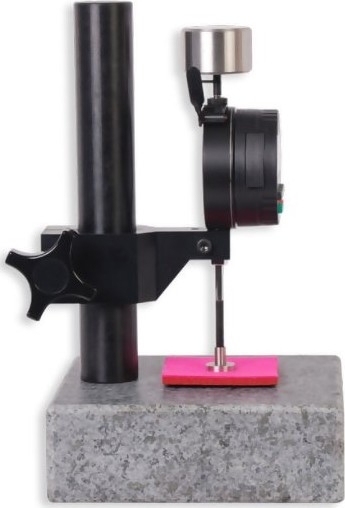

The MTG-DX2 System is supplied with a 9.5 mm diameter presser foot and 143 g mass. This configuration is designed to measure according to the ASTM D1777-2 and D751-06 specifications. Optional presser foot diameters and related weights are available and custom sizes can be supplied to accommodate your specifications. Refer to the details below.

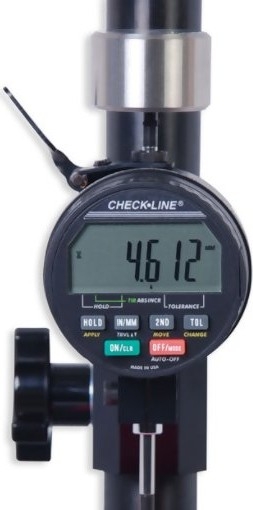

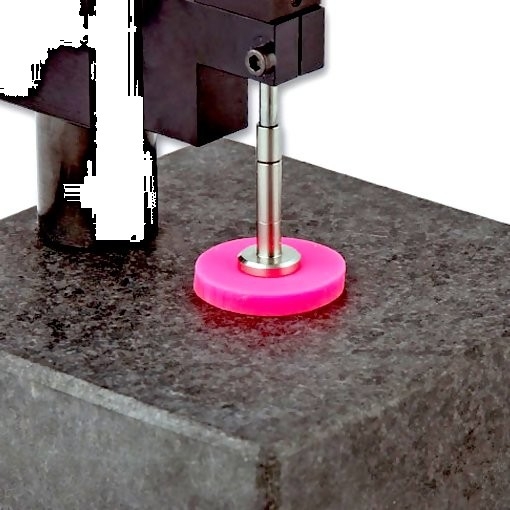

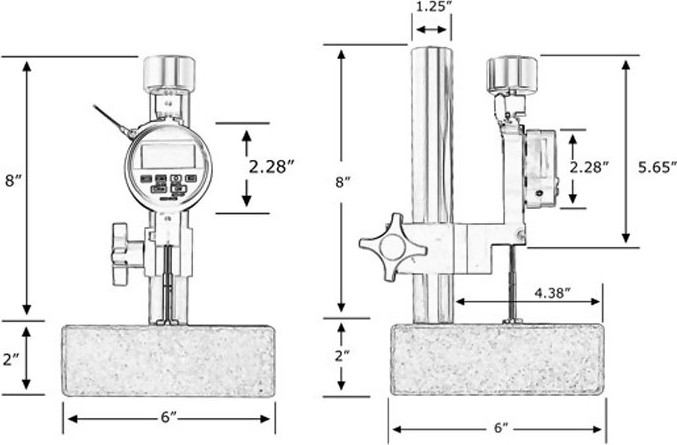

The certified digital indicator includes 3 SPC data output formats, English or Metric display, auto power-off, and a left-hand lifting lever. The indicator is fitted on an 8 inch (200 mm) tall column to allow the indicator to be raised or lowered to accommodate different size test specimens. The 6"x6"x 2" (150 x 160 x 50 mm) laboratory grade certified granite base offers a smooth and extremely hard reference plane for precise and repeatable measurements.

For those requiring data output for recording and quality documentation purposes, a serial output cable and windows-based software program is optionally available.

Custom Weights and Footers can be made to meet a wide range of specifications. Contact us for more info.

Features

• Includes NIST traceable calibration certification for Digital Indicator and Granite Base
• Includes wireless feature. (Can be disabled at the factory upon request.)
• User-selected units of inch or mm providing resolution of 0.0001" (0.002 mm)
• Hi-Lo Setpoints indicate if sample is within tolerance
• Custom diameter feet and weights can be supplied to apply the correct pressure (kPa) for your application
• Optional "swivel" connectors insures optimal alignment with test sample for the highest possible accuracy & repeatability
• Digital Indicator is battery-powered and Auto Power Off functions.
• USB Data Output Cable Optionally Available
• Made and assembled in the USA with 1-Year Warranty
• Optional Air Dampening feature allows for a repeatable, controlled rate of descent on to sample

Specifications

Measuring Range	0-1 inch (0-25 mm), Custom ranges up to 4 inches / 100mm available, inquire
Resolution	0.0001" (0.002 mm)
Accuracy	+/- 0.0002" (0.004 mm)
Repeatability	0.0000012"
Presser Foot Material	303 Stainless Steel
Base Material	Labratory Grade Granite
Power	CR2450 Lithium Coin Battery or Power Over USB with Optional Cable
Battery Chemistry	Lithium / Manganese Dioxide (Li/MnO2)
RS232 Output	9600 baud, no parity, 8 data bits, 1 stop bit (requires external power)
Warranty	1 Year
Country of Origin	USA
Spindle Thread	#4-48 UNF
ASTM D1813	For Testing the Thickness of Leather Samples Dial Graduation: 0.01 mm, Footer Diameter: 10 mm (± 0.5mm) and Mass: 393 grams (± 10 g)
Tolerance	Weight: +/- 0.5 grams Foot Diameter: +/- .005"
Maximum Mass	1000 grams (1 Kg), max can be added to create desired test pressure
System Pressure	MTG-DX, without Dampener: 20g ±3g (without Weight or Footer). This weight must be included when calculating test pressure MTG, with Dampener: This model is NOT recommended when testing requires specific test pressure
Test Pressure	MTG-DX = 1.121 kPa MTG-DX2 = 2.737 kPa MTG = 1.121 kPa, approx. (due to dampener)

Portable Battery-Powered Printer for Hardcopy Documentation

Need a hard copy printout of your measurement results?

Our P-190 Printer with the G03-0086 Cable will allow you to print each reading as it's shown on the display. The user simply depresses the thumb switch each time they want a value transferred to the printer. Simple yet effective!

The battery-powered P-190 Printer uses standard rolls of adding machine paper, unlike thermal printers the printout will not fade over time. It is supplied with a battery charger for operation on all power worldwide.
P-190 Printer
G03-0086 Data Transfer Cable and Thumb Switch

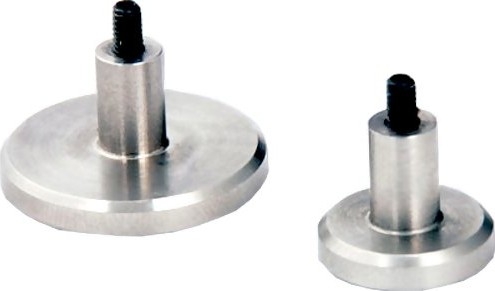

Optional Presser Foot (Feeler/Anvil) Offered

Presser Foot	"A" Dim. (mm)
MTG-01-1	10.0
MTG-01-2	8.0
MTG-01-3	6.3
MTG-01-4	6.0
MTG-01-5	5.0
MTG-01-6	4.0
MTG-01-7	3.2
MTG-01-8	16.0
MTG-01-9	25.0
