Product Description
THE PLT-5000 IS TEMPORARILY UNAVAILABLE; WE RECOMMEND THE CDT-2000HD AS AN ALTERNATIVE

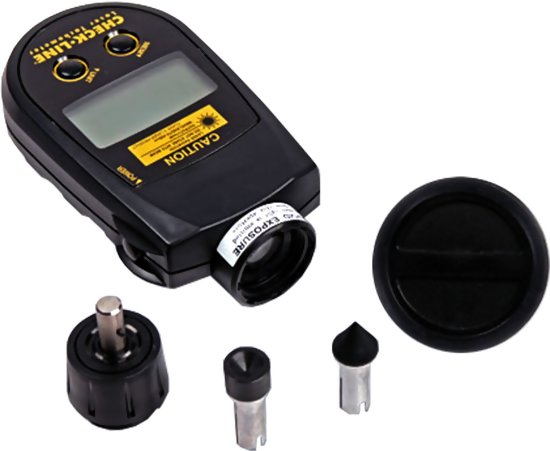

Checkline PLT-5000 Handheld Laser Tachometer
Combination Contact & Non-Contact Tachometer
Measuring Range: Non-Contact - 1.00 - 99,999 rpm | Contact - 1.00 - 25,000 rpm
Display Type: LCD
Housing Material: Plastic
Warranty: 1 years

The Checkline PLT-5000 Pocket Laser Tachometer accurately measures RPM and Surface speed using contact or non-contact measurement techniques. This battery-powered unit is extremely compact for convenient portable use and is supplied in a rugged and attractive plastic housing that is ergonomically designed for optimum comfort.

When measuring RPM in the non-contact measuring mode, the PLT-5000 emits a precision laser beam that is aimed at a small piece of reflective tape, which is affixed to the rotating target.

The Checkline PLT-5000 is extremely easy to operate and quickly converts from non-contact operation to contact operation by screwing the contact adapter in place. In addition to RPM's, a wide variety of engineering units for surface speed and length are user-selected via the front panel buttons. Units include; feet per minute, meters/min, yards per minute, inches per minute and more.

A built-in memory stores up to 10 measurements plus minimum, maximum, average and last.


line

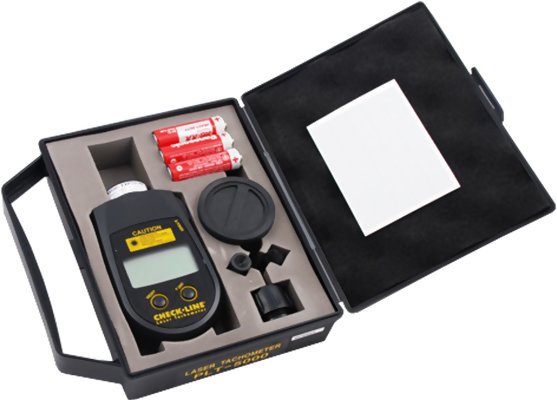

Kit Contents
line

  • PLT-5000 Handheld Laser Tachometer
  • 6" circumference wheel
  • Funnel Adapter
  • Cone Adapter
  • Contact Adapter
  • Three (3) AA Batteries
  • Reflective tape
  • NIST certificate
  • Instruction manual


line
Features
line

  • FREE NIST-traceable calibration certificate
  • Sharp Visible Laser Beam
  • Up to 60" (150 cm) Range
  • Measures RPM & surface speed and length
  • 14 memories
  • Converts Metric & English Readings
  • One year warranty
  • Simple One Button Operation


line
Specifications
line

Display5 digit 0.47" (12mm) height LCD
RPM Measuring
Range
Contact, 6.0 - 20,000 (limited for safety reasons)
Non-Contact; 6.0 - 99,999
Surface speed
6" Wheel
(m/min) 1.0-3,810, (yards/min) 1.0-4,166.4
(inch/min) 36-99,999 ( feet/min) 3
Length- ( Using
6" wheel)
(M) 0.2-99,999-(yards) 0.2-99,999 -(feet) 0.5-99,999
Total RPM1-99,999
AccuracyRevolution 6.0-599.9 rpm ± 1rpm, 600-99,999 rpm: ±
0.006% & ± 0.5 digit
Surface speed,
length
0.4% and ± 1 digit
Memory function14 Reading are stored in memory and retained for five minutes - Last, Max, Min
Update timeOne Second
DetectionLaser Diode
Auto Power Off5 Minutes
Batteries3 AA 1.5V
Low Battery
Indicator
Flashing "LO BAT" in display
Over Range
Indicator
Flashing "OVR" display
Operating Temp32-110°F (0-45° C)
Case constructionABS Resin
Dimensions4.55" L x 2.52" W x1.24"H (115.5 mm x 64 mm x 3.15 mm)
Weight6 ounces (160 g), including batteries
AccessoriesStorage Case, Cone Adapter, Funnel Adapter, Master Wheel ( 6") Contact adapter, three (3) AA Batteries, 25 reflective tapes, NIST Certificate, Instructions


line
Downloads
line

PLT-5000 Handheld Laser Tachometer - Data Sheet
PLT-5000 Handheld Laser Tachometer - Instruction Manual
PLT-5000 Handheld Laser Tachometer - Certificate
