Checkline TMT-425 Digital Textile Moisture Meter

See More Textile Moisture Meters

Checkline TMT-425 Digital Textile Moisture Meter

See More Textile Moisture Meters
Price:
$1,260.00 - $1,786.40
    warrenty

    Product Description

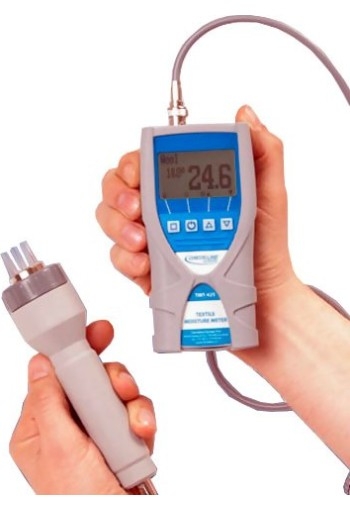

    TMT-425 Digital Textile Moisture Meter
    Measuring range: 0.3% to 26.0% moisture content
    Stored Curves for: acetate, acrylic, hemp yarn, jute yarn, cotton, nylon, polyester, viscose, flax and wool
    Non-destructive moisture measurement with temperature compensation

    Measuring Range: 0.3 to 26.0% water content
    Available with optional USB output

    The Checkline TMT-425 Digital Textile Moisture Meter is the next generation of textile moisture meters. It determines the moisture content of textiles, natural materials, synthetics and yarn during the production process within seconds. The water content of textiles and yarns influences the elasticity and tensile strength directly.

    This textile moisture tester has all textile curves stored inside and does not require any look up tables. Just select the appropriate moisture curve and start measuring. By this, maximum accuracy is guaranteed


    line

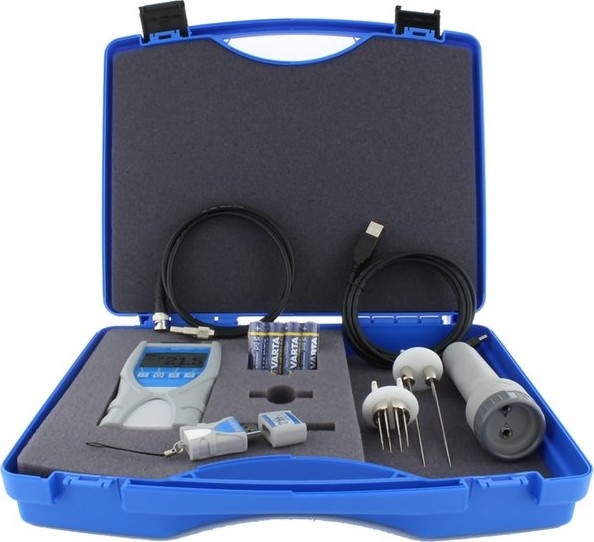

    Kit Contents
    line

    • TMT-425 Textile Moisture Meter
    • Connecting Cable TMT-425-CABLE
    • Electrode Holder 204
    • Electrode 205
    • Electrode 207
    • Batteries
    • Carrying Case


    line
    Features
    line

    • Wide measuring range of 0.3% to 26% moisture content
    • Memory Enables quality control and documentation on location
    • Many stored curves for determining humidity in textile, natural and synthetic fabrics and yarns
    • Menu languages: German, English, French, Italian, Spanish and Russian
    • Automatically calculates average measurement values
    • No conversion tables needed!
    • Automatic temperature compensation


    line
    Specifications
    line

    Measuring Range0.3% to 26% moisture content
    Resolution0.1%
    Measuring TechniqueElectrical Resistance
    Menu LanguagesEnglish, German, French, Italian, Spanish and Russian
    HousingMeter: Plastic with IP40 classification
    Data Recording10,000 measurements with date, batch and temperature
    DisplayGrafic LCD display with backlight (128 x 64 pixels)
    TemperatureAutomatically in °C or °F using a built-in temperature probe
    Operating Temperature0 °C to 40 °C
    Storage Temperature-20 °C to 60 °C

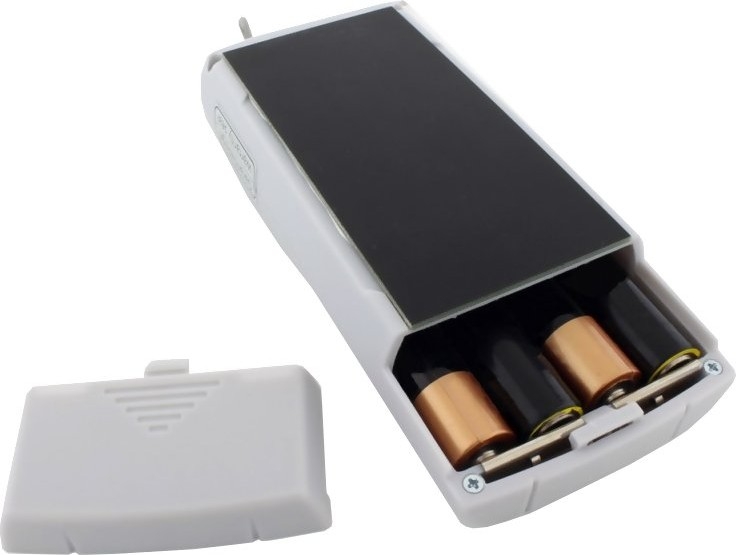

    Power Supply4 x 1.5 Volt AA Alkaline Batteries
    Data transfer (only for TMT-425-USB)Via USB-port (supplied with USB cable and software)
    Dimensions740 x 65 x 40 mm
    Weight450 gr. including batteries
    Warranty2 years


    line
    Calibration Curves
    line

    • Acetate
    • Acrylic
    • Hemp yarn
    • Jute Yarn
    • Cotton
    • Nylon
    • Polyester
    • Viscose
    • Flax
    • Wool


    line
    Electrodes
    line

    205
    • Needle electrode for yarns, cross-wound bobbins and hanks (needle length 25 mm)
    related

    line

    207
    • Needle electrode for yarns, cross-wound bobbins and hanks (needle length 100 mm)
    related

    line

    209
    • Stab electrode for textiles in sacks and rolls (needle length 325 mm)
    related

    line

    209 BSM
    • Cotton electrode, especially for measuring cotton and similar products in sacks or pressed bales;
    • piercing point: app 75 mm (total length app. 250 mm)
    related

    line

    210
    • Knife electrode for rolls or bales of textile fabric (knife length 110 mm)
    related

    line

    211
    • Roller electrode for running webs of textiles (roller 27 mm Ø)
    related

    line

    212
    • Continuous run electrode for yarn hanks and single filaments (roller 16 mm Ø)
    related

    line

    213
    • Surface electrode for fabrics (surface 23 mm Ø)
    related

    line

    299
    • Calibration electrode with a fixed calibration value
    related


    line
    Downloads
    line

    Checkline TMT-425 Digital Textile Moisture Meter - Data Sheet
    Checkline TMT-425 Digital Textile Moisture Meter- Instruction Manual
