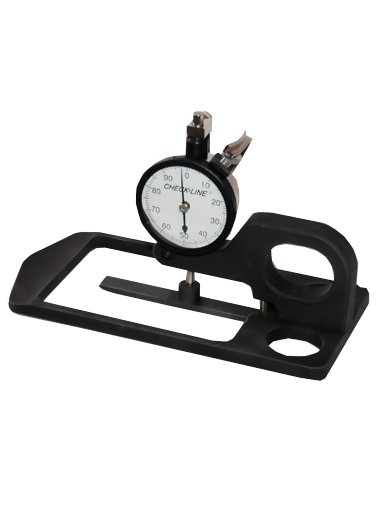

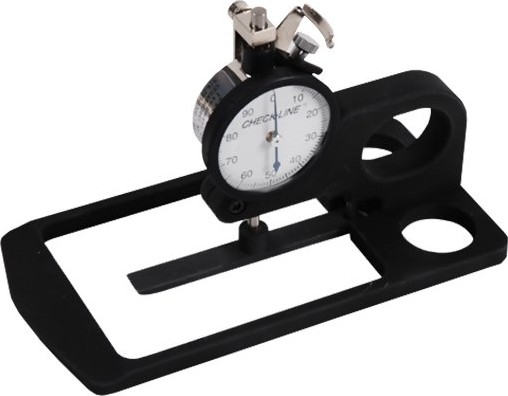

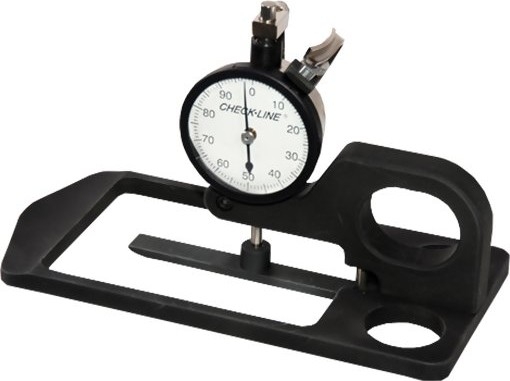

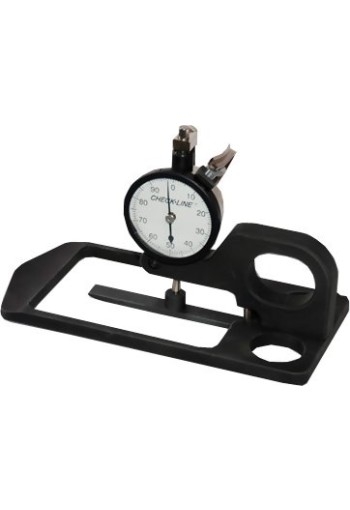

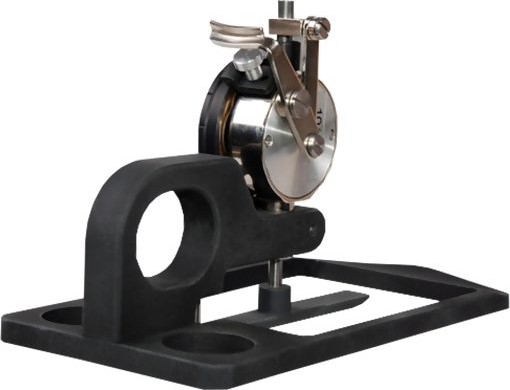

Checkline WT-100 Warp Tension Meter

See More Tension Meters, Mechanical
Price:
$795.00
  • Hassle Free 30-Day Returns
  • Availability: In Stock Usually ships within 1-2 business days
  • FREE - Standard Ground 3-5 Business Days View Faster Delivery Options
warrenty

Product Description
For textile warps
0-100 emperical unit scale
Metal Housing
Spring Loaded Operation

An easy-to-operate measuring foot and small "scooping" frame provide a quick and easy way to check warp tensions.

The Checkline WT-100 Warp Tension Meter 0-100 units scale and foot pressure have been carefully chosen to provide comparative warp tension measurements for most applications.

Special foot pressures are available where the standard foot pressure is too high or low


line
Features
line

  • Dependable, lightweight, small, rugged and easy-to-use.
  • A large, 2-3/4" wide measuring foot, provides even, perpendicular pressure for highly repeatable readings.
  • A thumb-actuated mechanism lifts the pressure foot for easy insertion into the warp and allows a scooping action by the bottom frame to select the number of ends to be measured


line
Specifications
line

Calibration0-100 empirical units
Resolution1 unit
Dial Face Diameter1-1/2" (38mm)
Foot Pressure240g ± 10 at 1 revolution of pointer
DimensionsFrame: 5-7/8" x 3" (150 x 176mm)
Height 3-5/8" (92mm)
Frame MaterialAluminum Alloy


line
Downloads
line

Checkline WT-100 Warp Tension Meter - Instruction Manual
Checkline WT-100 Warp Tension Meter - Data Sheet
