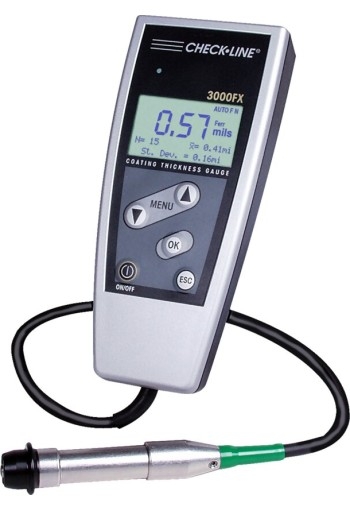

Name: Checkline 3000FX Series Coating Thickness Gauge
Brand: Checkline
SKU: 329

Measuring Range: 0-60.0 mils (0-1500 µm)

Separate Probe

Keypad-selectable units: Mils or Microns

Live Statistics Displays: Number of readings, mean, standard deviation, maximum and minimum reading of up to 10,000 readings

3 Models
DCF-3000FX - Ferrous Only Model
DCN-3000FX - Non-Ferrous Only Model
DCFN-3000FX - Combination Ferrous & Non-Ferrous Model

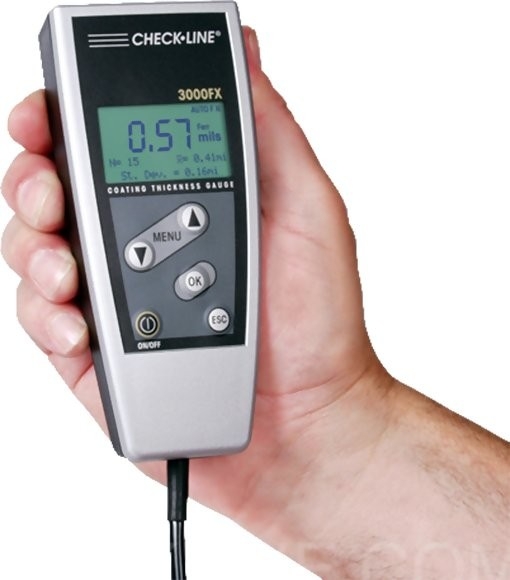

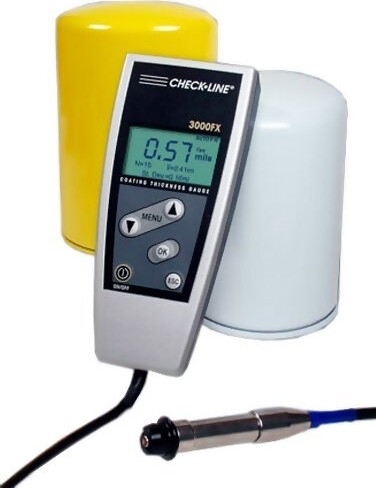

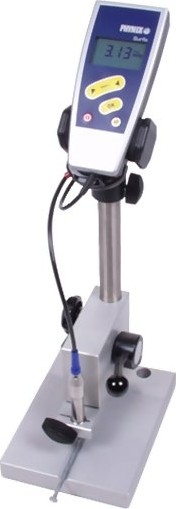

The 3000FX Series coating thickness gauge is a multifunctional fully menu driven gauge for fast, professional and precise coating thickness measurement for

varnish, paint and electroplated coatings on iron/steel and

varnish, paint and anodising coatings on non-ferrous metals and on austenitic stainless steels

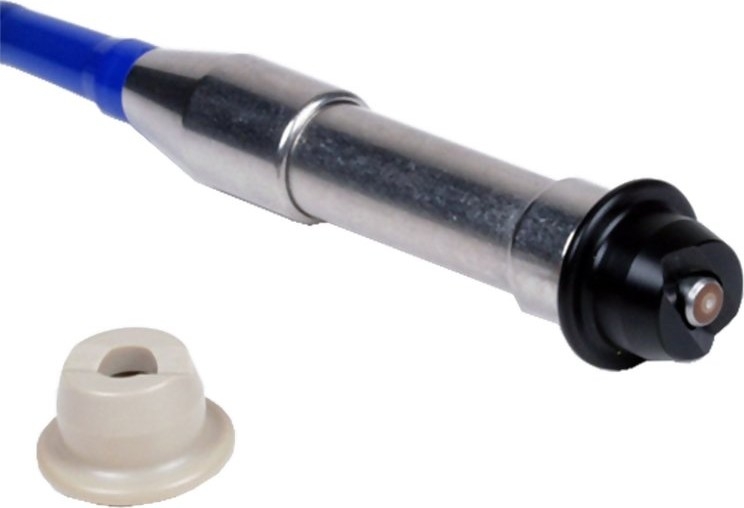

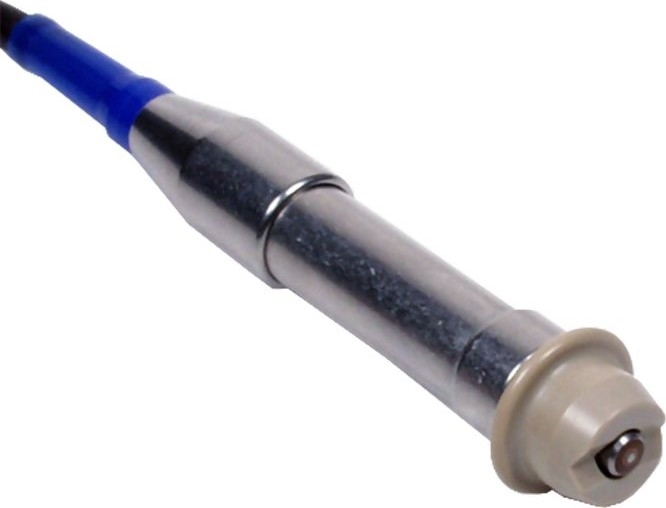

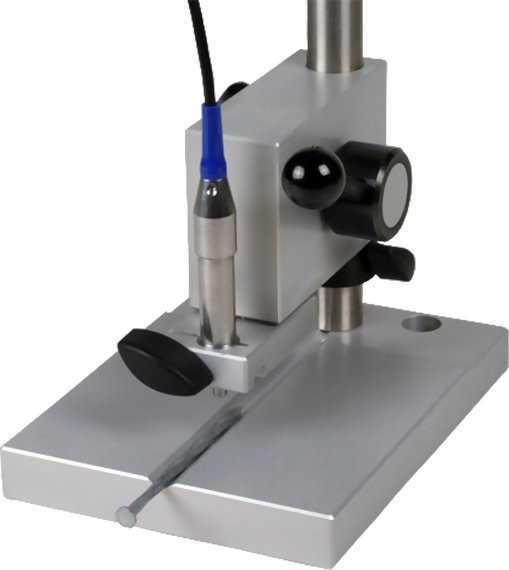

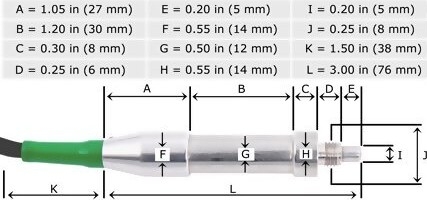

All external probes are machined to ultra-high standards and utilize a unique, hard-metal probe tip which prevents probe wear.

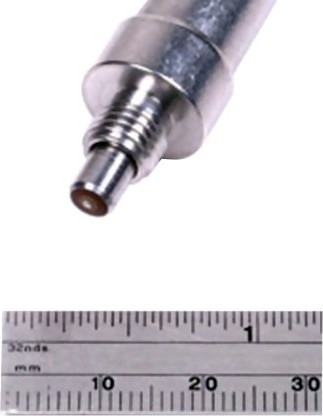

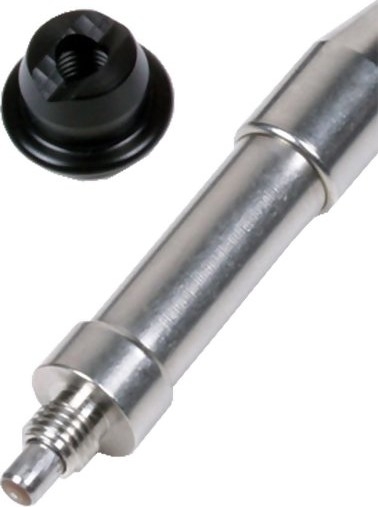

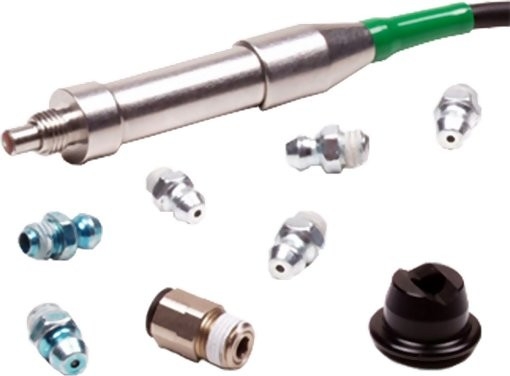

A v-notched footer provides a stable footing on small cylindrical parts, which can be removed to expose a "micro-probe" sensor perfect to measure on small surfaces and parts.

Where to use the 3000FX coating thickness gauge Series?

Wherever coatings are applied – whether on visual and aesthetic grounds, to prevent corrosion protection, or for functional and mechanical reasons – the coating thickness represents an essential quality feature. The 3000FX Series is ideal for speedy, non-destructive and exceptionally precise coating thickness measurement.

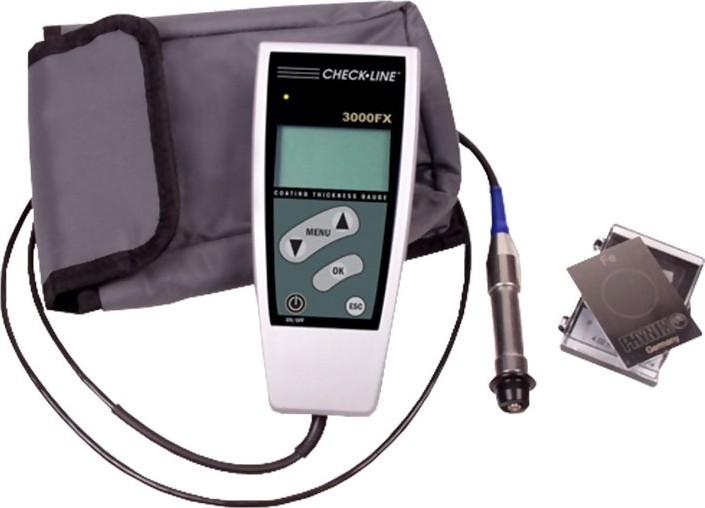

Kit Contents

3000FX Series Coating Thickness Gauge
Ferrous and or non-ferrous zero plate(model dependent)
2 calibration standards
2 AA batteries
Soft carrying pouch
Instruction manual
Calibration certificate

Features

The 3000FX Series is a compact, lightweight coating thickness gauge for operators who require both innovative and user-friendly measuring techniques
The 3000FX Series ensures non-destructive coating thickness measurement on steel and non Ferrous metals
Data transfer to a printer or PC takes place via an infra-red interface
Up to 10 000 readings can be statistically evaluated: number of readings, mean value, standard deviation, minimum and maximum reading
The 3000FX Series identifies the substrate and activates the appropriate measuring procedure
Menu in a choice of three languages ensures ease of operation
The uniform contact pressure of the sensor is kept to a minimum, preventing scratches and indentations to sensitive surfaces
Optional high temperature footer for measuring on surfaces up to 150 °C/302 °F
NIST Certificate Included at no additional cost
1 Year Warranty

Specifications

Measuring principle	magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Range	0 - 60.00 mils 0 - 1500 µm
Accuracy	±0.04 mils / 1µm + 1% of reading
Resolution	Refer to RESOLUTION TABLE, above
Display	back-light, 4-digit alphanumeric, digit height 10mm
Minimum Measuring Area	0.2" x 0.2" (5 mm x 5 mm)
Minimum Curvature Radius	convex: 0.12" (3 mm), concave: 0.2" (5 mm)
Minimum Substrate Thickness	Ferrous: 20 mils / 0.5 mm Non-Ferrous: 2 mils / 50 µm
Calibration	factory calibration, zero calibration, foil calibration, offset-function: addition or subtraction of a constant value
Memory	80 readings
Statistics Program	Number of readings, mean value, standard deviation, maximum and minimum reading of max. 10,000 readings
Data Output	Infrared IrDA Standard
Operating Temp.	32 °F - 122 °F / 0 °C - 50 °C
Surface Temp.	5° F - 140° F / -15° C - 60° C (standard) 5° - 302° F / 15° - 150° C (w/optional footer)
Storage Temp.	-4 °F to 140 °F / -20 °C to +60 °C
Power	2 AA 1.5V
Dimensions	5.6" x 2.5" x 1.2" (140 mm x 62 mm x 30 mm)
Weight	7 oz (200 g) (gauge + probe)
Protection Class	IP 52 (proof against dust and dripping water)
Standards	DIN, ISO, ASTM, BS
Warranty	1 Year
Calibration Certificate	Included

Measuring Limits

	Minimum Radius for Convex Surfaces	0.2" (5 mm)
	Minimum Radius for Concave Surfaces	2" (50mm)
	Minimum Headroom	4" (100 mm)
	Minimum Sample Diameter	0.5" (13 mm)
	Minimum Substrate Thickness - F Minimum Substrate Thickness - NFe	20 mils (0.5 mm) 2 mils (50 µm)

Resolution Table

Mils		Microns (µm)
0.00 - 9.99 mils	0.01 mils	0.0 - 99.9 µm	0.1 µm
10.00 - 24.98 mils	0.02 mils	100.0 - 249.8 µm	0.2 µm
25.00 - 49.95 mils	0.05 mils	250.0 - 499.5 µm	0.5 µm
50.0 - 99.9 mils	0.1 mils	500 - 999 µm	1 µm
		1.000 - 1.998 mm	0.002 mm
