Durable stainless steel construction

---

Includes Certificate of Accuracy

---

40 notches for superior resolution - 5 notches per side

---

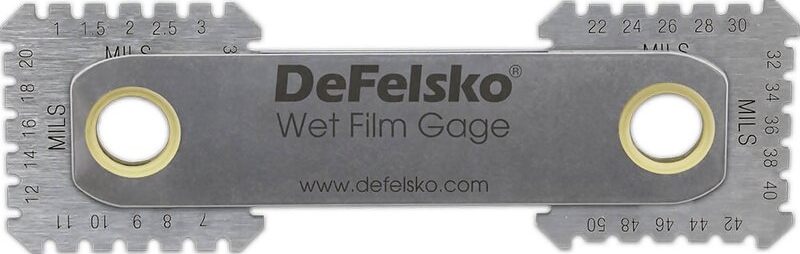

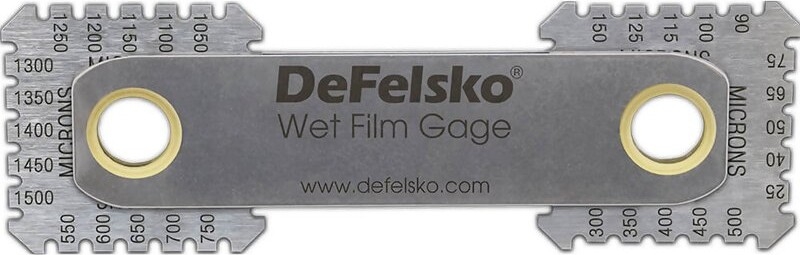

Notched Wet Film Thickness Gages measure the thickness of paint, enamels, and other wet films quickly and accurately

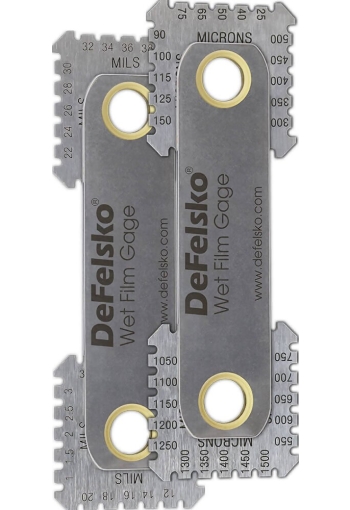

Dual-head design measures up to 1,500 μm of coating on one side and 60 mils of coating on the reverse

Conforms to ISO 2808, ASTM D4414, AS/NZS 1580.107.3, JIS K 5600-1-7, NF T30-125, US NAVY NSI 009-32 and others

Features

---

• Durable stainless steel construction
• Includes Certificate of Accuracy
• 40 notches for superior resolution - 5 notches per side
• Two-sided - Microns and Mils
• Includes compact hard-shell storage case and pictorial instruction card

Specifications

---

Order Code	Range
WFG60/1500SSC	1 - 60 mils | 25 - 1,500 μm

Downloads

---

DeFelsko Certified Stainless 8-Sided Wet Film Thickness Gage - Data Sheet
