DeFelsko KITF3

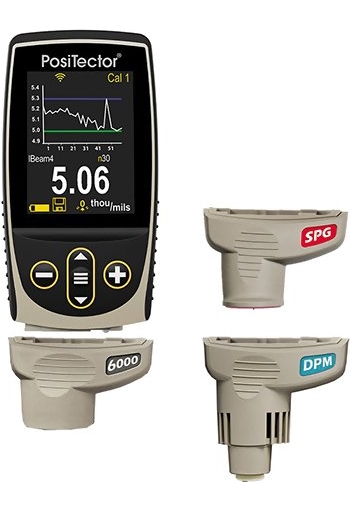

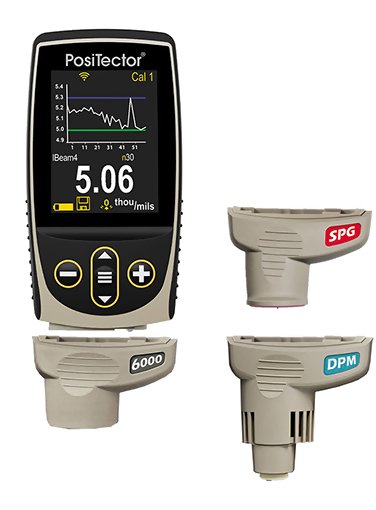

PosiTector Inspection Kit contains:
DeFelsko BDYADV-G PosiTector Advanced Body with NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, memory for 250,000 data points, USB, WiFi and Bluetooth output
DeFelsko PRBF-D PosiTector 6000 Coating Thickness Integral Probe, 0 - 1500 um (0 - 60 mils), Ferrous Metals
DeFelsko PRBSPG-B PosiTector SPG Surface Profile Probe
DeFelsko PRBDPM-C PosiTector DPM Environmental Dew Point Meter Probe
All DeFelsko PosiTector Inspection Kits contain 1 PosiTector gage body (Standard or Advanced) and 3 probes – coating thickness (Ferrous Only or Combination Ferrous Non-Ferrous), environmental dew point and surface profile, as well as accessories in a convenient hard shell carrying case.
The PosiTector Inspection Kits is available with your choice of Standard or Advanced Gage. Each PosiTector body accepts the PosiTector 6000, DPM, and SPG probes included in the kit easily converting from a coating thickness gauge to a dew point meter or surface profile gauge. Select from 12 pre-configured kits or build your own, contact us for details.

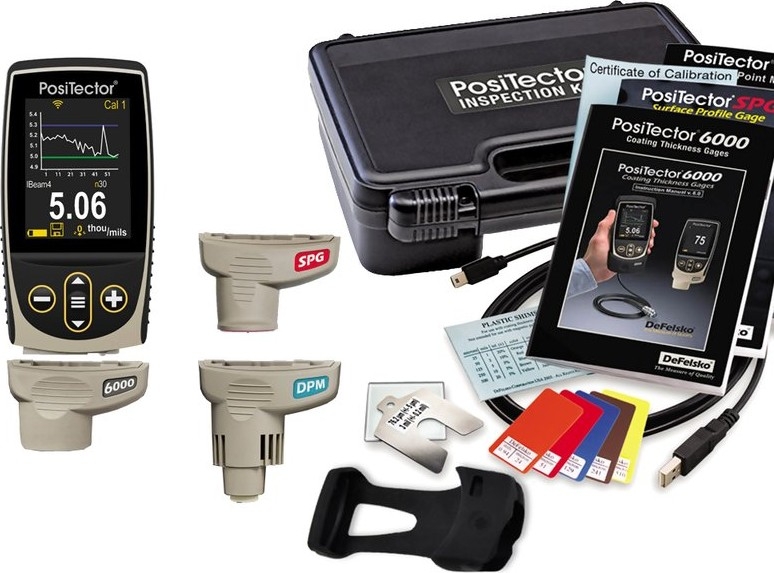

Kit Contents
- PosiTector Advanced Gage Body BDYADV-G
- DeFelsko PRBF-D PosiTector 6000 Coating Thickness Integral Probe 6000-F, 0 - 1500 um (0 - 60 mils), Ferrous only
- DeFelsko PRBDPM-C PosiTector DPM Environmental Dew Point Meter Probe PRBDPM
- DeFelsko PRBSPG-B PosiTector SPG Surface Profile Probe PRBSPG
- Precision plastic shims, glass zero plate and metal shim
- Protective rubber holster with belt clip, wrist strap
- Protective lens shield, 3 AAA alkaline batteries
- PosiSoft Software and USB cable
- 3 Long Form Certificates of Calibration traceable to NIST
- Convenient hard shell case and 3 instruction manuals
- Two (2) year warranty on gauge body and probes
Each Standard Kit contains the PosiTector Standard gage body and 3 probes – coating thickness, environmental and surface profile.
Coating Thickness with Standard models
- Storage of 1000 readings per probe - stored readings can be viewed or downloaded
Environmental Monitoring with Standard models
- Storage of 2,500 datasets (RH, Ta, Ts, Td, Ts-Td). Stored readings can be viewed or downloaded.
- Auto Log Mode runs unattended on batteries for up to 50 hours or continuously via USB
Surface Profile with Standard models
- Storage of 1000 readings per probe - stored readings can be viewed or downloaded
Standard Kits Ordering Guide:
| Surface Profile Probe | Dew Point Meter Probe | Coating Thickness Probe | Inspection Kit (Order Code) |
| PRBSPG | PRBDPM | 6000-F
0 - 1500 um (0 - 60 mils)
Ferrous only, integral | KITF1  |
| PRBSPG | PRBDPM | 6000-FS
0 - 1500 um (0 - 60 mils)
Ferrous only, with cable | KITFS1 |
| PRBSPG | PRBDPM | 6000-FT High Range
0 - 6000 um (0 - 250 mils)
Ferrous only, integral | KITFT1 |
| PRBSPG | PRBDPM | 6000-FTS High Range
0 - 6000 um (0 - 250 mils)
Ferrous only, with cable | KITFTS1 |
| PRBSPG | PRBDPM | 6000-FN
0 - 1500 um (0 - 60 mils)
Ferrous/non-ferrous, integral | KITFN1 |
| PRBSPG | PRBDPM | 6000-FNS
0 - 1500 um (0 - 60 mils)
Ferrous/non-ferrous, with cable | KITFNS1 |
DeFelsko PosiTector Inspection
Each Advanced Kit contains the PosiTector Advanced gage body and 3 probes – coating thickness, environmental and surface profile.
Features Include
- Onscreen Batch Annotation - add notes, change batch names and more with built-in QWERTY keyboard
- Live graphing of measurement data
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
Coating Thickness with Advanced models
- Storage of 250,000 readings in up to 1,000 batches and sub-batches.
- 3 Scan Modes-increase measurement speed to 180+ readings per minute
- Normal – take continuous readings without lifting the probe
- NEW Statistics – take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
- NEW Limited Count Average – take continuous readings up to a user specified count. Gage displays and records the average of the readings.
- Multiple stored calibration adjustments for measuring on a variety of substrate conditions
- SSPC-PA 2 feature determines if film thickness over a large area conforms to user specified min/max levels
Environmental Monitoring with Advanced models
- Storage of 250,000 datasets in up to 1,000 batches.
- NEW Enhanced Auto Log mode turns the gage off between readings for up to 8 months of battery life. Each reading can be uploaded to PosiSoft.net or an FTP server using WiFi. Automatically group readings into batches at daily, weekly, or monthly intervals
- User defined limits for all parameters - visible and audible warnings
- NEW Send email alerts when connected to WiFi
- Wet bulb temperature can be displayed and recorded
- Trend Charts graph readings in real-time
Surface Profile with Advanced models
- Storage of 250,000 readings in up to 1,000 batches and sub-batches.
- SmartBatchTM allows entry of user-defined parameters and criteria to comply with various standards and test methods
Advanced Kits Ordering Guide:
| Surface Profile Probe | Dew Point Meter Probe | Coating Thickness Probe | Inspection Kit (Order Code) |
| PRBSPG | PRBDPM | 6000-F
0 - 1500 um (0 - 60 mils)
Ferrous only, integral | KITF3 |
| PRBSPG | PRBDPM | 6000-FS
0 - 1500 um (0 - 60 mils)
Ferrous only, with cable | KITFS3 |
| PRBSPG | PRBDPM | 6000-FT High Range
0 - 6000 um (0 - 250 mils)
Ferrous only, integral | KITFT3 |
| PRBSPG | PRBDPM | 6000-FTS High Range
0 - 6000 um (0 - 250 mils)
Ferrous only, with cable | KITFTS3 |
| PRBSPG | PRBDPM | 6000-FN
0 - 1500 um (0 - 60 mils)
Ferrous/non-ferrous, integral | KITFN3 |
| PRBSPG | PRBDPM | 6000-FNS
0 - 1500 um (0 - 60 mils)
Ferrous/non-ferrous, with cable | KITFNS3 |
PosiSoft Suite of Software
Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More
Related Products
Downloads
F.A.Q.
Do your instruments require any formal training for use? Do you offer ‘demo’ models?
No. Our instruments are designed for simple operation, feature easy-to-use menus, both full and quick instruction manuals, and helpful videos. In lieu of demonstration models, we provide unlimited technical support via telephone and/or email, and a limited 30-day money back guarantee.
How often should the PosiTector probe be recalibrated?
DeFelsko PosiTector probes include a Certificate of Calibration with no expiry or end date. They have no shelf life, therefore the length of time in the field is not a good indicator for recalibration intervals. Many organizations with quality programs and recertification programs require annual recalibrations, and this is a good starting point for most users. DeFelsko recommends that customers establish calibration intervals based upon their own experience and work environment. Based on our product knowledge, data and customer feedback, a one year calibration interval from the date the instrument was placed in service is a good starting point.
