Name: ElektroPhysik MikroTest-Standards Coated Metal Plates for Calibration of MikroTest Coating Thickness
Brand: ElektroPhysik
SKU: 1920

ElektroPhysik MikroTest-Standards Coated Metal Plates for Calibration of MikroTest Coating Thickness

See More Coating Thickness Gauges

ElektroPhysik MikroTest-Standards Coated Metal Plates for Calibration of MikroTest Coating Thickness

Electropating Thickness Gauge utilizing the coulometric principle, a de-plating method conforming to DIN 50 955 and ISO 2177

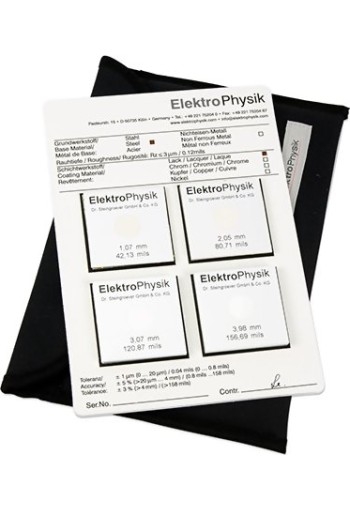

Verify or calibrate your Mikrotest Coating Thickness Gauge and other ferrous coating thickness gauge using these precision standards. All sets are supplied with 4 coated plates marked with mil and micron/mm values. The plates are attached to a rigid plastic plate with printed tolerances and serial number.

line
Features
line

Calibration Certificate is OPTIONAL
Each set is serialized
Supplied in padded pouch

line
Specifications
line

Part Number	Gauge Model	Plate 1	Plate 2	Plate 3	Plate 4
82-051-0054	G \| GM	0	10 µm \| 0.40 mils	20 µm \| 0.80 mils	40 µm \| 1.60 mils
82-051-0055	F \| FM	0	40 µm \| 1.60 mils	120 µm \| 4.7 mils	400µ \| 16 mils
82-051-0056	S3 \| S3M	220 µm \| 8.60 mils	320 µm \| 12.60 mils	1000 µm \| 40 mils	2000 µm \| 80 mils
82-051-0057	S5 \| S5M	1000 µm \| 40 mils	2000 µm \| 80 mils	3000 µm \| 120 mils	4000 µm \| 160 mils
82-051-0058	S10 \| S10M	3mm \| 120 mils	4mm \| 160 mils	5mm \| 197 mils	8mm \| 315 mils
82-051-0060	NiFe50 / NiFe50M	0	10 µm \| 0.40 mils	20 µm \| 0.80 mils	30 µm \| 1.20 mils

line
Downloads
line

ElektroPhysik MikroTest-Standards Coated Metal Plates for Calibration of MikroTest Coating Thickness Gauge - Data Sheet

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

ElektroPhysik 82-051-0054 Calibration Standards for MikroTest G/GM - MIK/011000 View Model Details

$695.00

ElektroPhysik 82-051-0055 Calibration Standards for MikroTest F/FM - MIK/011020 View Model Details

$695.00

ElektroPhysik 82-051-0056 Calibration Standards for MikroTest S3/S3M - MIK/011040 View Model Details

$695.00

ElektroPhysik 82-051-0057 Calibration Standards for MikroTest S5/S5M - MIK/011060 View Model Details

$695.00

ElektroPhysik 82-051-0058 Calibration Standards for MikroTest S10/S10M View Model Details

$695.00

ElektroPhysik 82-051-0060 Calibration Standards for MikroTest NiFe50/NiFe50M - MIK/011160 View Model Details

$3,110.00

Recommended Accessories

PRICE

NISTCAL NIST Traceable Calibration Certificate for Mikrotest Standards (Not Available for NiFE)

$175.00
