ElektroPhysik MiniTest 70 Coating Thickness Gauge: 0 - 120 mils (0 - 3 mm) MiniTest 70FN - F: 0 - 120 mils (0 - 3 mm) / N: 0 - 100 mils (0 - 2.5mm)

---

1-point and 2-point calibration

---

Pen-Type Gauge for maximum portability and performance

---

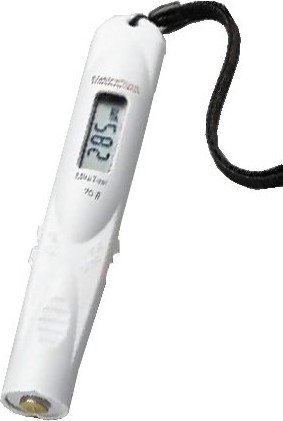

MiniTest 70F - Ferrous Only Model

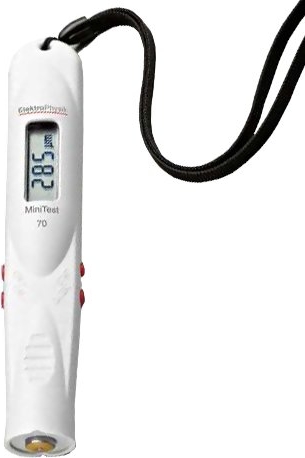

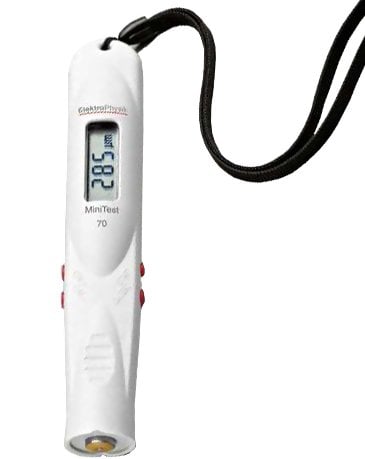

MiniTest 70FN - Combination Ferrous & Non-Ferrous Model

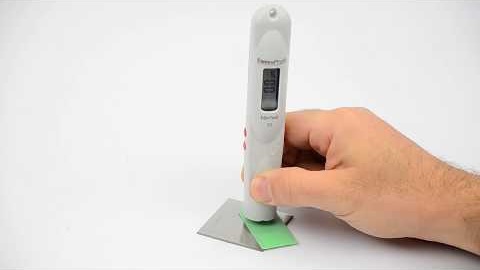

The ElektroPhysik MiniTest 70 Coating Thickness Gauge is a pocket sized, versatile and accurate thickness gauge with built-in sensor. Especially designed for easy operation, this gauge is the ideal tool to measure any non-magnetic coatings on steel and/or any insulating layers on non-ferrous metals.

Coating thickness gauges designed for measurement on non-ferrous metals can measure insulating coatings such as paint, enamels, anodic films, etc, on non-ferrous metal bases such as aluminium, copper, brass, etc. The spring-mounted sensors are equipped with wear-resistant sensor poles and ensure durability even when used for measurements on rough and abrasive substrates.

With coating thickness gauges designed for measurement on ferrous metals, non-magnetic coatings such as paint, enamels, chrome, etc., can be measured on ferro-magnetic bases such as constructional steel, car bodies, etc.

The MiniTest 70 Series provides accurate, non-destructive coating measurements on steel and non-ferrous metals (FN model). Also, the FN model is equipped with a dual sensor for automatic identification of the substrate. According to the substrate, it adjusts to the appropriate measuring principle: magnetic induction or eddy currents principle. Both models are provided with a quick statistics mode to calculate the number of readings, average, standard deviation and min./ max. value which makes the MiniTest 70 ideal for on-site operations.

Kit Contents

MiniTest 70 F or FN - Steel and aluminium test plates (for model 70FN) Calibration foils

Operating instructions Gauge tether Belt pouch

Features

• Pocket sized, compact coating thickness gauge
• Proven measuring methods
• Statistics function
• High repeatability
• For fast and precise measurements of non-magnetic coatings on steel and insulating coatings on non-ferrous metals
• Enables 1-point and 2-point calibrations
• Automatic identification of the substrate material

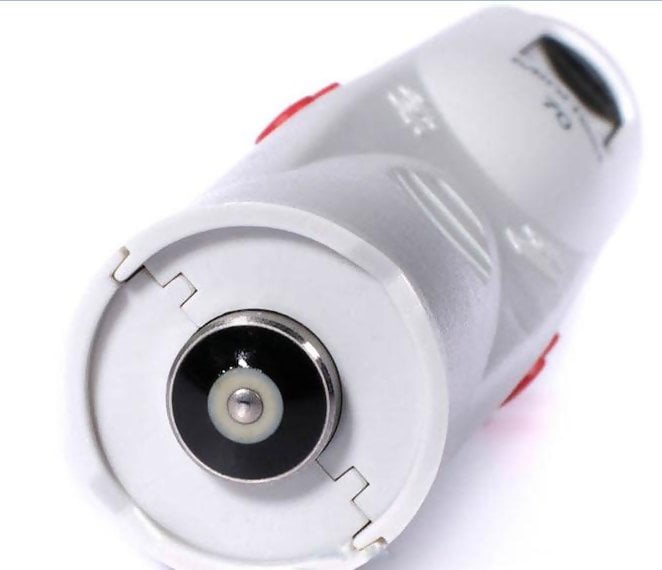

• Built-in sensor

Specifications

Measuring Range	MiniTest 70F - 0 - 3 mm (0 - 120 mils) MiniTest 70FN - F: 0 - 3 mm (0 - 120 mils) / N: 0 - 2.5mm (0 - 100 mils)
Measuring Principle	MiniTest 70F - magnetic induction MiniTest 70FN - magnetic induction / eddy currents
Signal Processing	Sensor integrated 32-bit signal processing (SIDSP®)
Accuracy	± (1.5 µm + 3 % of reading) with 1-point calibration ± (1.5 µm + 2% of reading) with 2-point calibration
Repeatability	± (1 µm + 1 % of reading) ± (0.04 mils + 1% of reading)
Low range resolution	0.5 µm (0.02 mils)
Minimum curvature radius convex	5 mm (0.2")
Minimum curvature radius concave	40 mm (1.60")
Minimum measuring area	⌀ 30 mm (1.20")
Minimum substrate thickness	F: 0.5 mm (0.02") N: 0.04 mm (0.0016")
Measuring units	Metric/Imperial switchable
Calibration modes	1-point calibration, 2-point calibration
Statistics	n, x-, s, Min, Max
Operating temperature range	-10 to 60 °C (14 - 140 °F)
Storage temperature range	-20 to 70 °C (-4 - 158 °F)
Power supply	1xAA (Mignon)-battery
International standards	DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376
Dimensions	Approx. 157 mm length, ⌀ 27 mm (5.2" length, ⌀ 1.06")
Weight incl. battery	Approx. 80 g (2.8 oz)
