Ferrous Substrates: 0 - 3 mm (0-120 mils)
Non-Ferrous Substrates: 0 - 2.5 mm (0-100 mils)

---

Automatic identification of Substrate type

---

1-Point calibrationOne model only for Fe and nFE substrates

---

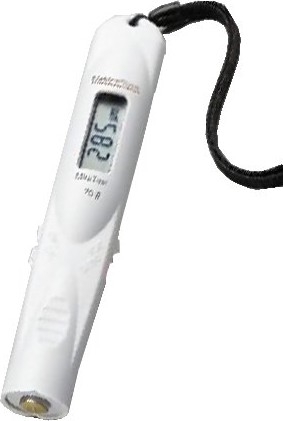

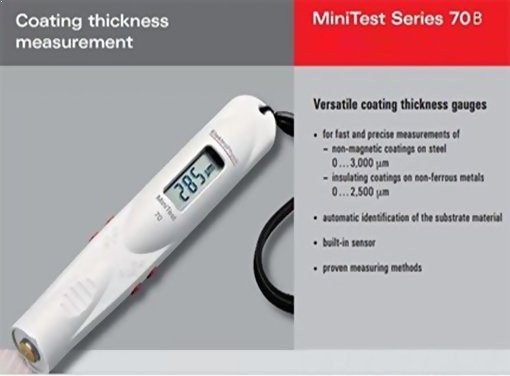

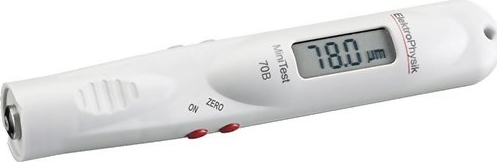

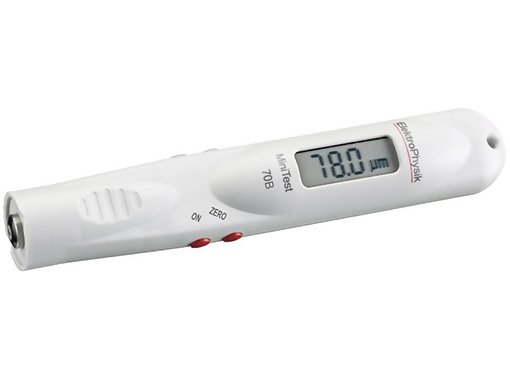

The ElektroPhysik MiniTest 70B Coating Thickness Gauge is a pocket sized, versatile and accurate thickness gauge with built-in sensor. It is a lightweight and handy coating thickness gauge in a pencil format with a built-in sensor. Especially designed for easy operation, this gauge is the ideal tool to measure any non-magnetic coatings on steel and/or any insulating layers on non-ferrous metals. The spring-mounted sensors are equipped with wear-resistant sensor poles and ensure durability even when used for measurements on rough and abrasive substrates.

Designed for measurement on non-ferrous metals can measure insulating coatings such as paint, enamels, anodic films, etc, on non-ferrous metal bases such as aluminium, copper, brass, etc.

And for measurement on ferrous metals, non-magnetic coatings such as paint, enamels, chrome, etc., can be measured on ferro-magnetic bases such as constructional steel, car bodies, etc.

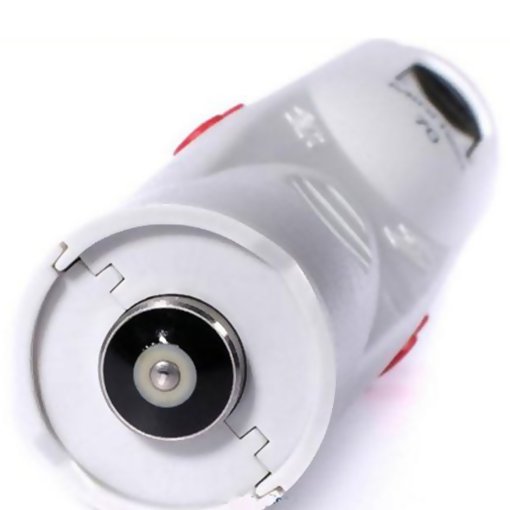

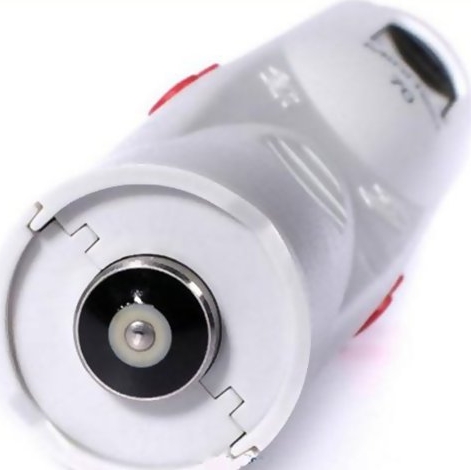

The MiniTest 70B Series provides accurate, non-destructive coating measurements on steel and non-ferrous metals. Also, the FN model is equipped with a dual sensor for automatic identification of the substrate. According to the substrate, it adjusts to the appropriate measuring principle: magnetic induction or eddy currents principle.

Measuring range 0 to 3 mm on steel substrates and 0 to 2.5 mm on non-ferrous metals.

Kit Contents

MiniTest 70B - Calibration foils Operating instructions

Gauge tether Belt pouch

Features

• Pocket sized, compact coating thickness gauge
• For fast and precise measurements of non-magnetic coatings on steel and insulating coatings on non-ferrous metals
• Lightweight: only 80 grams
• Easy 2 button operation
• Built-in spring-mounted sensor
• Enables 1-point calibrations
• Automatic identification of the substrate material
• Built-in sensor

Specifications

Measuring Range	Ferrous Substrates: 0 - 3 mm (0-120 mils) Non-Ferrous Substrates: 0 - 2.5 mm (0-100 mils)
Measuring Principle	Magnetic-induction / Eddy currents
Signal Processing	Sensor integrated 32-bit signal processing (SIDSP®)
Accuracy	± (2 µm + 3 % of reading) with 1-point calibration
Repeatability	± (2 µm + 1 % of reading) ± (0.04 mils + 1% of reading)
Low range resolution	10 µ
Minimum curvature radius convex	50 mm
Minimum curvature radius concave	40 mm
Minimum measuring area	⌀ 50 mm
Minimum substrate thickness	F: 0.7 mm N: 0.1 mm
Measuring units	Metric/Imperial switchable
Calibration modes	1-point calibration
Operating temperature range	-10 to 60 °C (14 - 140 °F)
Storage temperature range	-20 to 70 °C (-4 - 158 °F)
Power supply	1xAA (Mignon)-battery
International standards	DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376
Dimensions	Approx. 157 mm length, ⌀ 27 mm
Weight incl. battery	Approx. 80 g (2.8 oz)
Warranty	1 year
