This product has been replaced by the MiniTest 725

---

The MiniTest 720 has been replaced by the MiniTest 725

---

Advanced coating thickness gauge with SIDSP® sensor

---

High accuracy

---

Integrated Probe

---

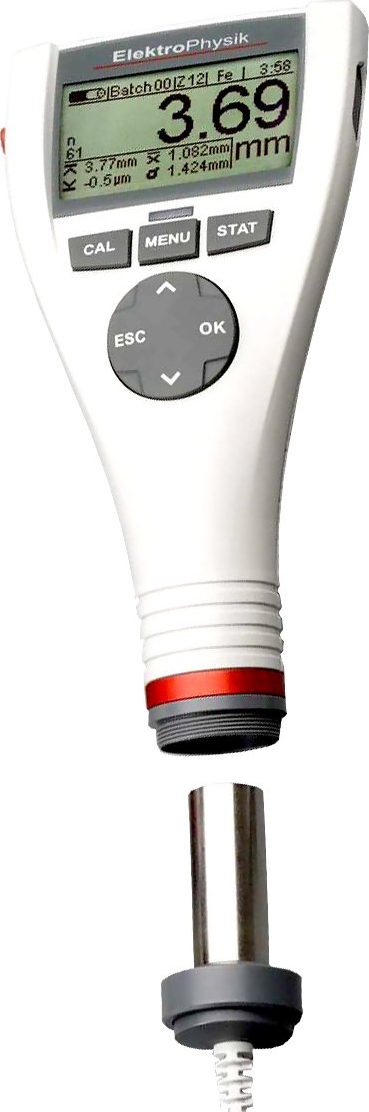

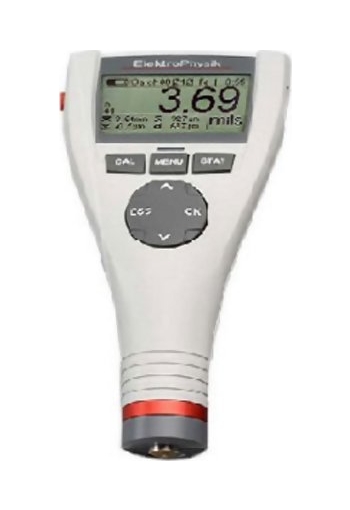

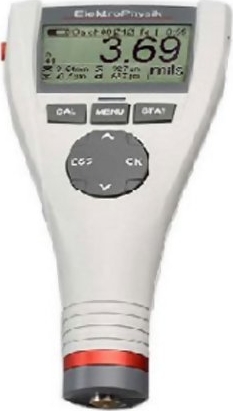

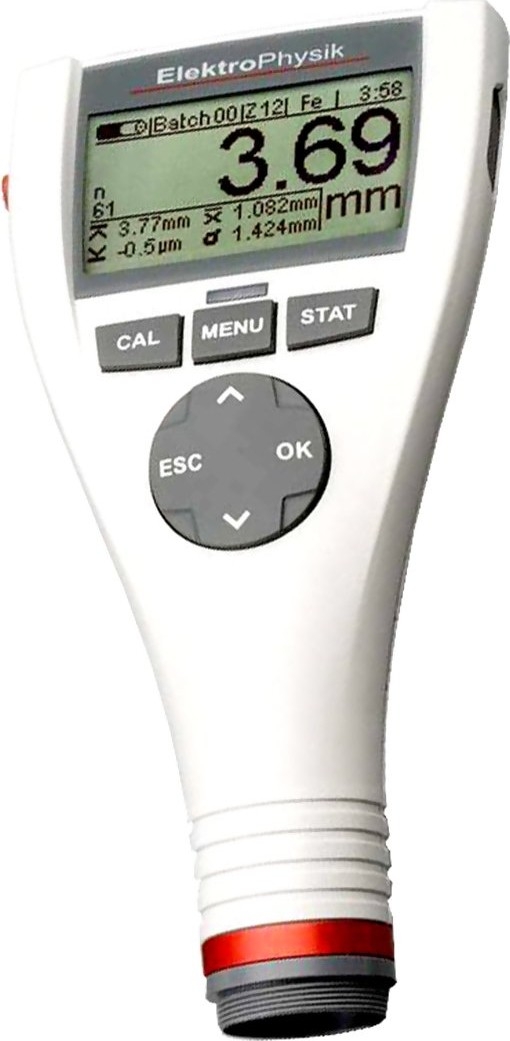

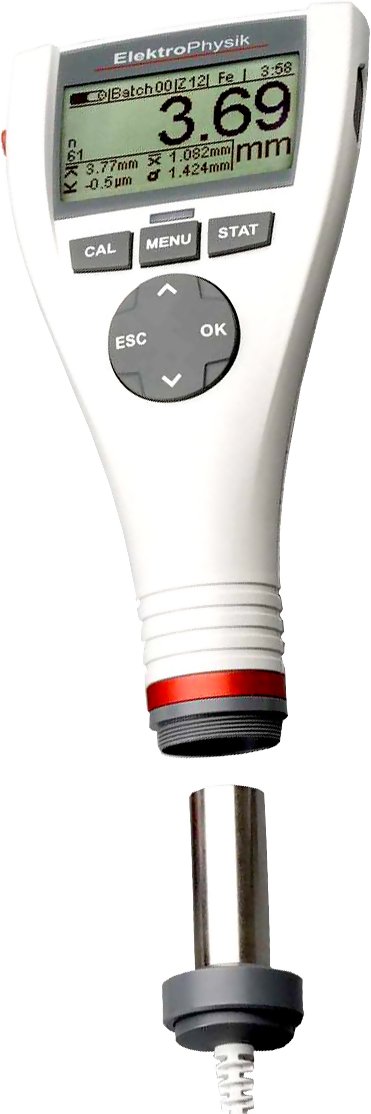

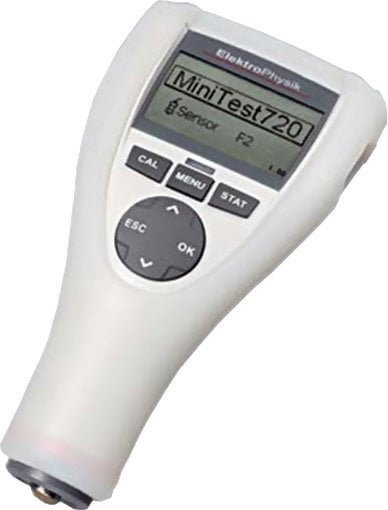

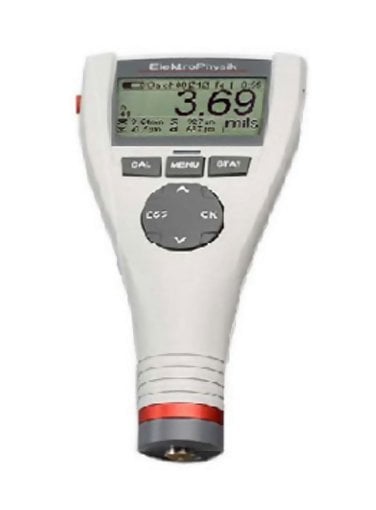

The ElektroPhysik MiniTest 720 Coating Thickness Gauge features a built-in, integrated probe built-in to gauge housing for easy, one hand operation.

The new MiniTest 700 Series Coating Thickness Gauges offer a reliable and accurate solution to all your coating thickness measurement tasks, especially when a reliable finish and perfect product appearance play are of major importance and add value to your product such as in the automotive and shipbuilding industry, steel and bridge construction, appliance manufacture and more.

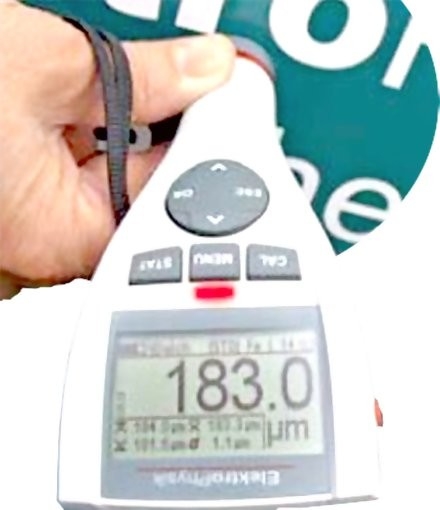

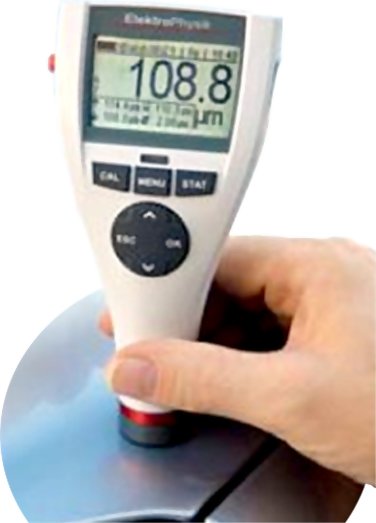

The MiniTest 720 Series is ergonomically designed to fit perfectly into the palm of your hand. Also, the MiniTest 700 gauges feature a measuring speed setting option that allows adjustment to changing requirements for utmost efficiency and optimum productivity: taking many readings in a short time with medium precision or taking only a few readings with increased accuracy.

All MiniTest 720 probes compensate for irregular shaped surfaces thanks to the predefined calibration methods that are available to adapt to a wide range of different surface conditions and accuracy requirements.

All MiniTest 700 Series gauges are equipped with the new SIDSP® technology. SIDSP® is a brand-new technology being applied to coating thickness gauges for the first time. This new technology sets a new benchmark for innovative coating thickness measurement worldwide.

SIDSP® stands for Sensor-Integrated Digital Signal Processing – a technology where the signals are completely processed into digital form inside the probe at the time and point of measurement and are manufactured according to new state-of-the-art production techniques.

Unlike conventional techniques, the SIDSP® probes create and control the excitation signal for the probe. The return signals are directly digitally converted and processed at a 32 bits accuracy to give you the complete coating thickness value. For this technique, highly sophisticated methods of digital signal processing are used as known from modern telecommunication technologies (mobile phone networks) such as digital filters, base band converting, averaging, stochastic analysis, etc. This enables the user to achieve a signal quality and precision unmatched with traditional analogue signal processing found in most other coating thickness gauges. The thickness value is digitally transmitted via the probe cable to the display unit setting a new standard in coating thickness measurement, offering significant advantages compared to the commonly used analogue probes.

The new SIDSP® sensors guarantee:

• Highest accuracy and repeatability

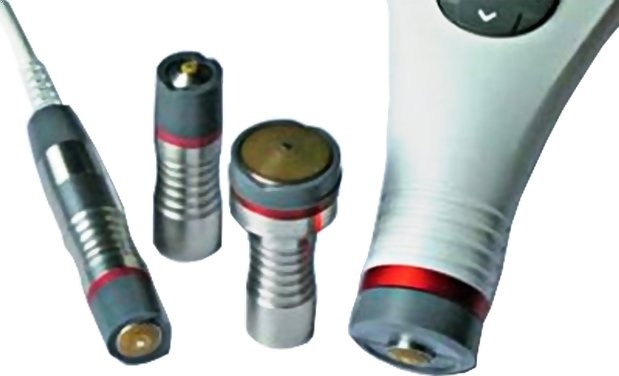

• Wide range of probes for a wide variety of applications
• Both N and FN probes compensate for substrate conductivity
• Consistent readings over a wide range of material temperature
• SExcellent wear-resistant

Features

• All 720 models feature integrated probes built-in to gauge housing for 1-hand operation
• Automatic substrate identification with FN probes
• Audible and visual (red and green LED) alarms
• Large memory capacity for 10,000 readings in 10 batches
• All probes are temperature compensated
• Large, easy-to-read backlit graphics display
• Downloadable probe and gauge firmware updates
• Display orientation can rotate 180° so readings will never be upside down
• Large memory capacity for 10,000 readings in 10 batches
• Factory set, zero, 2-point, 3-point and roughness calibration
• Individual readings and statistical values can be recalled to the display
• SSPC-PA2, ISO, Swedish (SS 18 41 60), Australian (AS 3894.3), ISO 19840 and ASTM D 7091 (formerly D 1186 and D 1400)
• Easy menu-guided operation, 25 menu languages available
• Built-in IrDA port for infrared data transmission to printer or PC

Complete Kit

The MiniTest 720 is supplied as a complete kit with: MiniTest 720 gauge SIDSP® sensor (according to choice) Calibration set with calibration standards and zero reference plate(s) Instruction manual in German, English, French and Spanish on CD 2 Mignon/ AA batteries

Specifications

Sensor Type	Built-in sensor
Substrate Identification	Yes, with FN sensors
SIDSP® sensor	Yes, for increased accuracy and reproducibility
Sensor characteristics	High-accuracy sensor characteristics through up to 50 calibration points during the sensor manufacture
Individual temperature compensation	Yes
Number of memories	10, user-definable memory arrangement according to batches
Total memory capacity	max. 10,000
Memory batches	Include readings, a defined calibration mode, parameters and statistics calculated from batch readings
Statistical evaluation	Number of readings, minimum, maximum, mean value, standard deviation, coefficient of variation
Single reading statistics	Block value statistics (norm-conforming/ user-configurable), stored readings and statistical values can be called seperately, print-out readings and statistics on MiniPrint 7000 data printer, transfer of readings and statistics to a PC
Calibration modes	Factory calibration, zero-point, 2-points, 3-point calibration, calbiration method "rough", user-adjustable off-set value, user-adjustable correction value for substrate roughness
International calibration procedures	ISO, SSPC, "Swedish", "Australian"
Measuring units	metric (μm, mm, cm) / imperial (mils, inch, thou) switchable
Display	Large graphical display, backlit, 180° rotatable
Menu	User-friendly, 25 languages
Software	Sensor and gauge software updates available via download
Measuring rate/ accuracy	User adjustable to standard, quick, high precision
Thickness identification	Continuous mode for quick identification of changes in thickness
Automatic switch-off	Battery saving mode with adjustable switch-off mode
Protection	IP40
Operating temperature	–10°C to 60°C
Storage temperature	–20°C to 70°C
Data port	IrDA 1.0 (infrared)
Power supply	2 x AA (Mignon cells), rechargeable NiMH accu batteries type AA/HR6 (as an option)
Norms and standards	DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, 19840, ASTM B 244, B 499, D7091, E 376, AS 3894.3, SS 1841 60, SSPC-PA 2
