This product has been replaced by the DeFelsko PEN
The ElektroPhysik PenTest Magnetic Pull-Off Coating Thickness Gauge has been replaced by the DeFelsko PEN PosiPen Magnetic Pull-Off Coating Thickness Gauge, 0.25-20 Mils
Measuring Range: 25 - 700 microns / 1 - 30 mils
Simple device to measure paint on steel

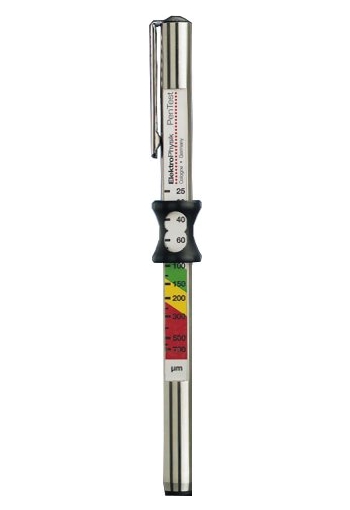

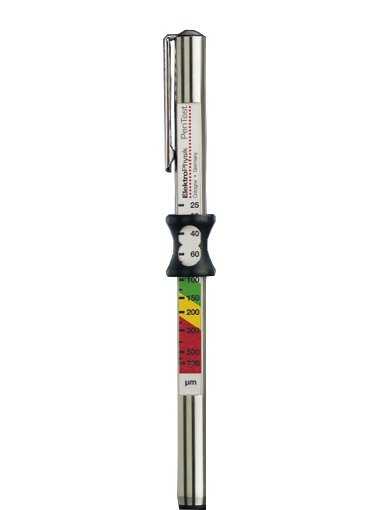

| The ElektroPhysik PenTest Magnetic Pull-Off Coating Thickness Gauge operates according to the magnetic attraction principle for non-destructive, quick and easy measurement on coatings such as paint, plastics, enamel on steel. Featuring a patented HOLD mechanism, the PenTest gauge keeps the thickness indicator in place for easy reading. The HOLD mechanism can be used as a “memory” for the last reading. Applications include quick-check measurements on steel constructions, painted steel panels and all kinds of steel substrates. Measuring principle according to DIN EN ISO 2178. No batteries or other power supply required.
Features
- Simple device to measure paint on steel
- Colored coded zones for quick go/no-go quality assessment
- Doesn't require power source
Related Products
MikroTest
Magnetic Coating Thickness Gauge
Specifications
| Measuring Range | 25 - 700 ?m / 1 - 30 mils | | Minimum measuring area | 25 mm / 1in dia. | | Accuracy | ± 10% of reading | | Dimensions | 151 mm / 6in length, 10 mm dia. | | Temperature Range | -10 - + 80°C |
