Blades Sold Separately

---

For testing according to ISO 2409 and ASTM D3359-02

---

Multi cutting blade with 6 cutting edges

---

Cutting edges lie on the surface

---

With Magnifying glass for clear evaluation of the cut edges

---

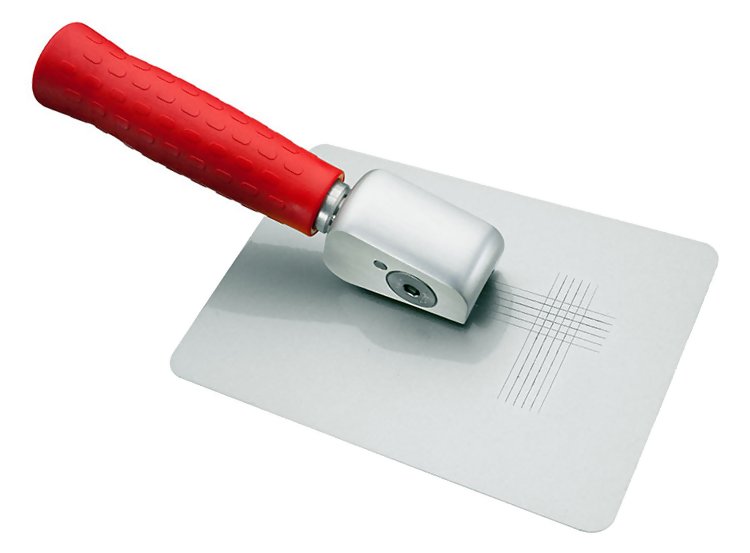

Exceptionally strong and handy cross hatch cutter made on the lines of DIN EN ISO 2409 and ASTM D3359-02 to conduct cross cut tests. The SecoTest is used for the assessment of adhesiveness of single or multiple coatings (varnishes, synthetic materials, etc.) on hard (steel) and soft (wood) substrates.

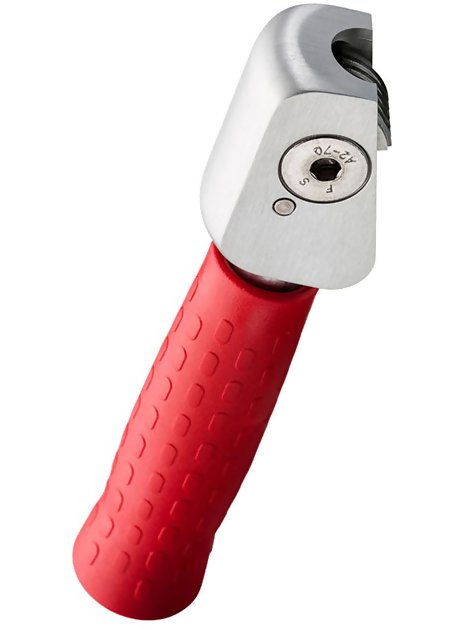

The cross cut testers of the SecoTest series consist of a sturdy holder for the six-edge multi cutting blade and a rotatable non-slip grip, which prevents the multi cutting blade from canting.

To ensure that this procedure is repeatable, put the test object through a suitable conditioning process (see DIN EN ISO 2409, section 6); while testing at construction sites make a note of the ambient conditions in the test report.

The procedure defined by ISO 4642 can be employed to measure adhesiveness.

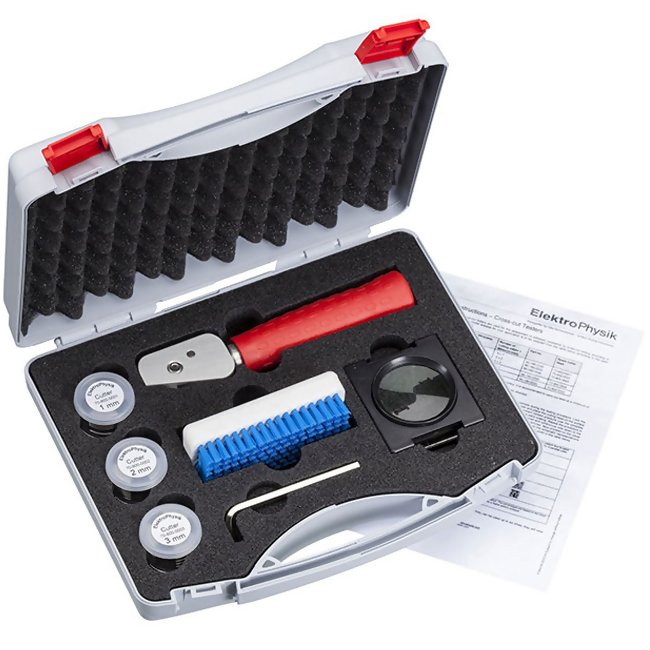

Kit Contents

SecoTest gauge with cutting head Hex tip screwdriver for changing the blades Magnifier for visual inspection Brush Carrying case Instruction Manual Blades are sold separately

Features

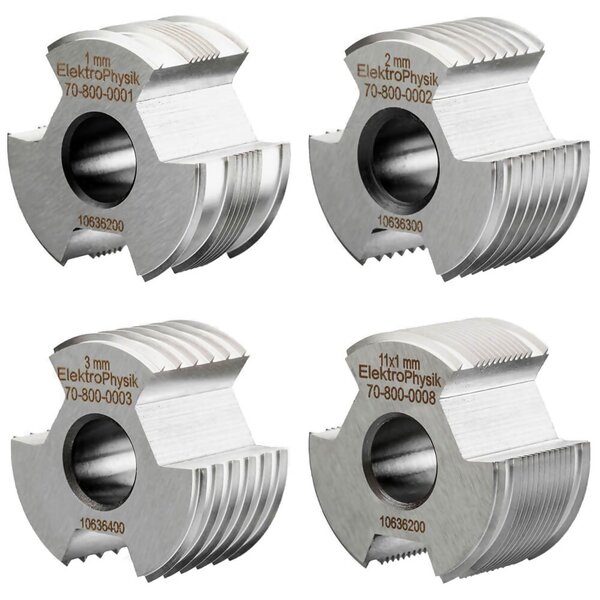

• High-grade, tool-steel multi cutting blade in 4 different models with standard cutting-edge geometry
• Movable cutter head
• Multi cutting blade with 6 cutting edges
• Versions for tests according to DIN EN ISO 2409 and ASTM D 3359
• Cutting edges lie on the surface
• With Magnifying glass for clear evaluation of the cut edges

Specifications

Dimensions	18 x 3,8 x 3 cm
Weight	330 gram
Warranty	1 year

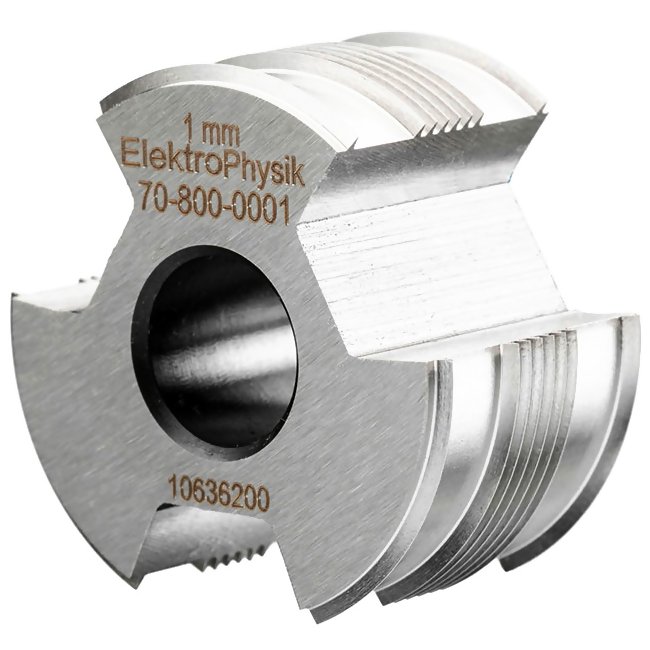

SecoTest 1

Coating Thickness	up to 60 μm on hard substrates (e.g. metal, plastics)
6 x 1 mm	Number of cutting edges x distance (mm)
Norm	DIN EN ISO 2409

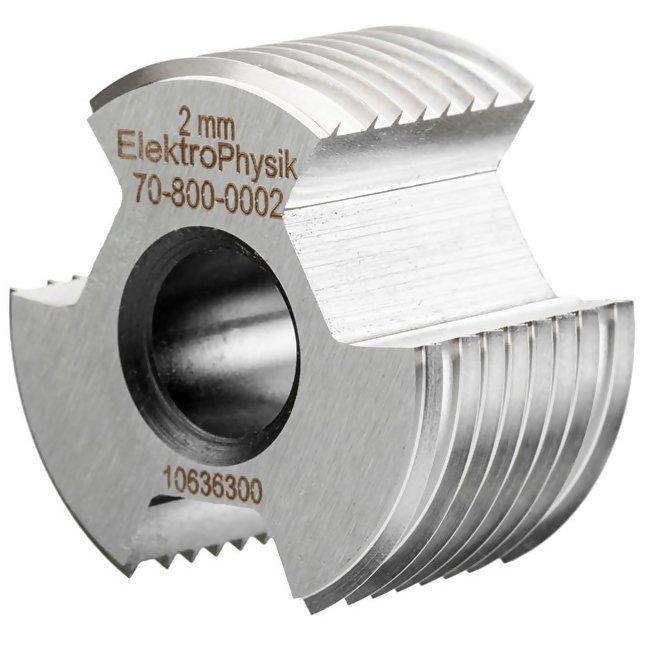

SecoTest 2

Coating Thickness	up to 60 μm on soft substrates (e.g. wood, render)
Coating Thickness	from 61 μm to 120 μm on hard and soft substrates
6 x 2 mm	Number of cutting edges x distance (mm)
Norm	DIN EN ISO 2409

SecoTest 2

Coating Thickness	from 51 μm to 125 μm
6 x 2 mm	Number of cutting edges x distance (mm)
Norm	ASTM D 3359

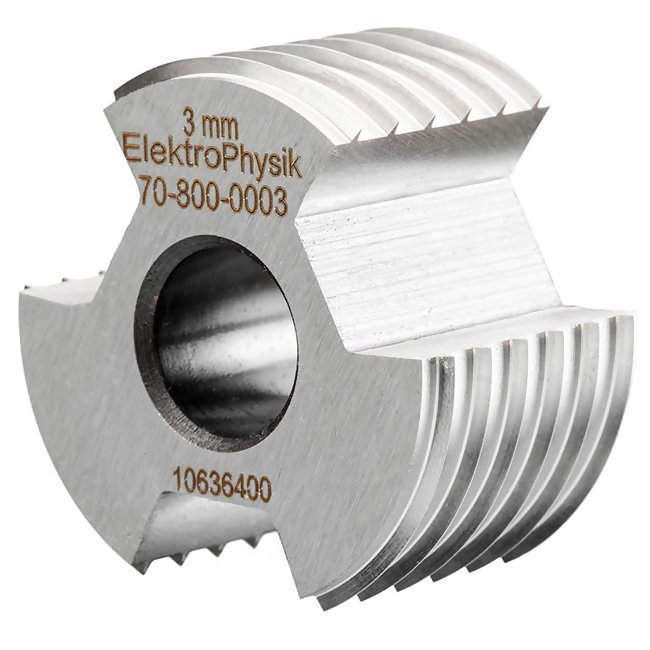

SecoTest 3

Coating Thickness	from 121 μm to 250 μm on hard and soft substrates
6 x 3 mm	Number of cutting edges x distance (mm)
Norm	DIN EN ISO 2409

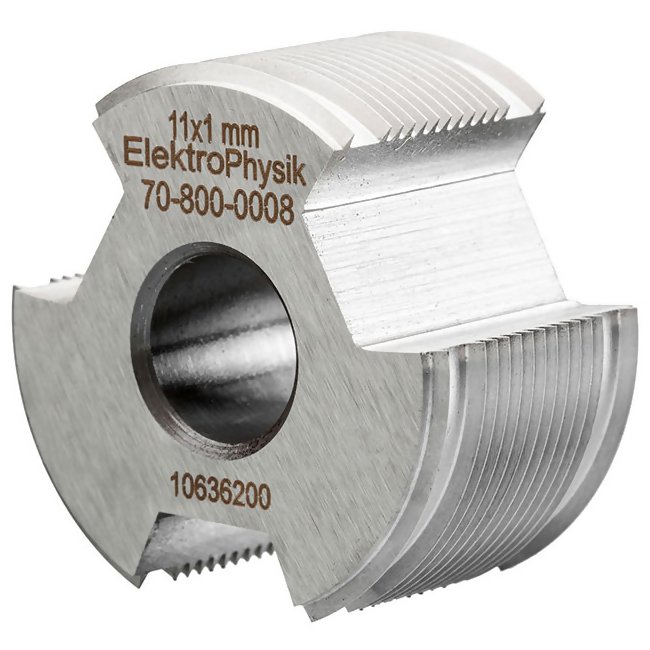

SecoTest 4

Coating Thickness	up to 50 μm
11 x 1 mm	Number of cutting edges x distance (mm)
Norm	ASTM D 3359
