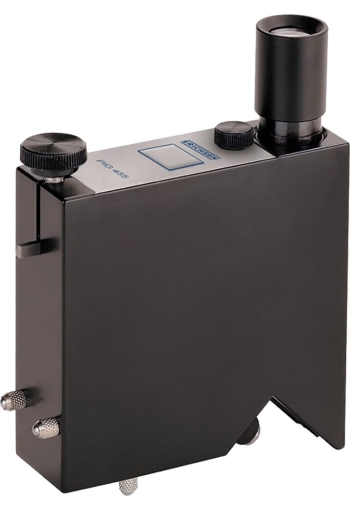

The ElektroPhysik P.I.G. 455 Wedge Cut Coating Thickness Gauge is a universal coating thickness gauge utilizing the wedge cut method to measure organic coatings on metal, wood, and synthetic material. The P.I.G. is also suitable for multiple coatings.

Measurement of non-identified coating materials

Measurement on all coatable base materials (wood, synthetic material, metal, etc.)

Exchangeable cutter formed of carbide metal

Tilt-free cutting guide

Integrated microscope with precision vernier

Features

---

• Measurement of unknown layer materials
• Measurement of unknown layer materials
• Exchangeable cutter made of hard metal
• Controlled guiding of the cutting operation without tilting
• Integrated microscope with precision vernier

Specifications

---

Range	No. 1: 20 µm - 2,000 µm | No. 4: 10 µm - 1,000 µm | No. 5: 5 µm - 500 µm | No. 6: 2 µm - 200 µm
Cutting angle α	No. 1: 45 ° | No. 4: 26.6 ° | No. 5: 14 ° | No. 6: 5.7 °
Factor (μm/sc.div.)	No. 1: 20 | No. 4: 10 | No. 5: 5 | No. 6: 2
Measuring accuracy	1 %
Battery	2x Mignon AA
Dimensions	110 mm x 85 mm x 25 mm
Weight	400g
