    Product Description
    Tooke Gauge - Micro-Metrics OG212 Took Paint Inspection Gauge
    Dual-Measure scope
    Assists in measuring brittleness and adhesion of coatings and materials
    Tooke Gages meet ASTM D4138-82 and ISO 2808

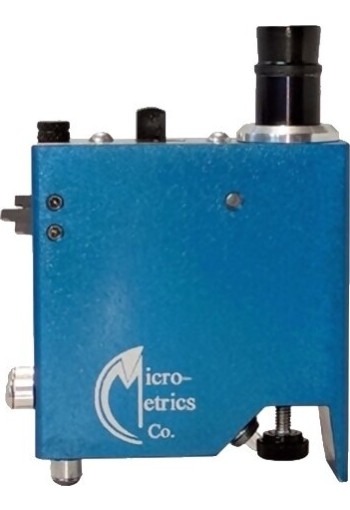

    The OG212 Tooke Paint Inspection Gage is a precision tool for inspection and dry-film thickness measurement (in accordance with ASTM D4138) of single or multiple coats on any substrate, and for microscopic observation and measurement of substrate and film defects.


    line
    Kit Options
    line

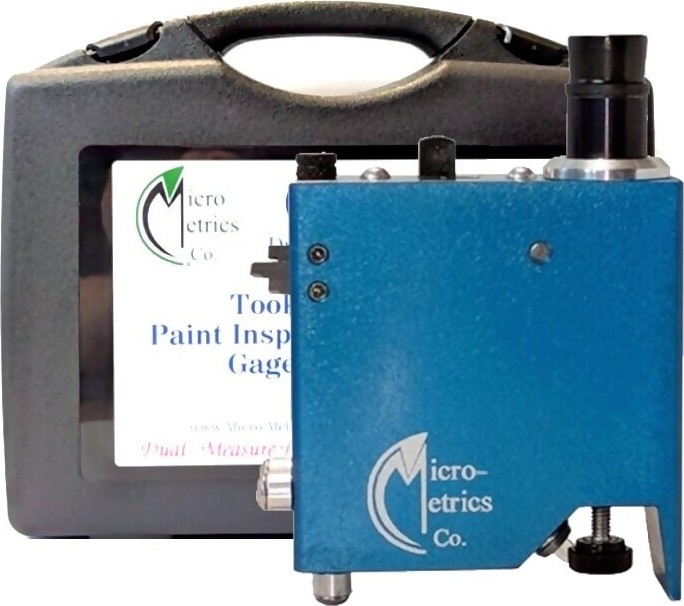

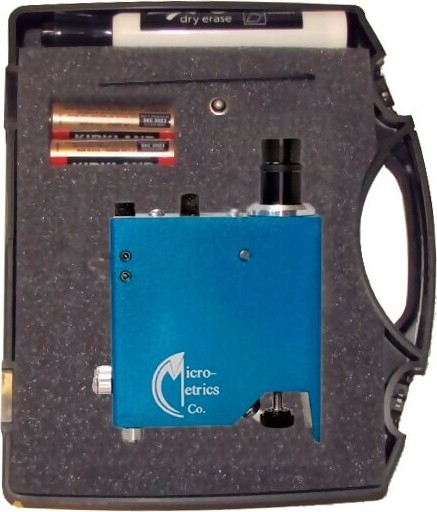

    The machined aluminum Tooke Gage comes ready for use in a polycarbonate plastic carrying case with two spare batteries, a spare LED bulb, a indelible marking pen, a hex wrench, and a technical data sheet.

    • Standard cutting tip configuration is 1X, 2X, and 10X.
    • An optional 5X cutting tip is available.
    • Any configuration of tips may be requested (for example, three 10X tips; or a 1X, 2X, and 5X).

    You may also order (for a lower price) a gauge with only a single cutting tip and two blank tips (spacers).

    MaterialMachined anodized aluminum body
    Overall dimensions4.5" x 3.5" x1" | 11.4cm x 8.9cm x 2.5cm
    Microscope50-power, 45-degree, illuminated with Dual-Measure reticle
    PowerTwo 15V AA drycells in the gauge, plus two spares
    LampLED 222 bulb plus a spare bulb
    Cutting tipsPrecision-ground tungsten-carbide cutting tips: 1X, 2X, and 10X (or as desired)
    Shipping Weight~2 pounds (0.9 kg)


    line
    Features
    line

    • Dual-Measure scope, with 1 mil per hashmark space above the line and 20 microns per hashmark space below the line scale.
    • Measures thickness of coatings applied to wood, plastic, cement, glass, ceramics, mirror backings, metal, etc.
    • Assists in measuring brittleness and adhesion of coatings and materials.
    • Both the OG212 and OG214 are supplied with 1, 2, and 10 cutting tips installed in the gauge body. An optional 5 cutting tip is available.
    • Gauges come in a rugged plastic carrying case with cutting tip wrench, indelible marker, spare LED bulb, and spare batteries

    The gauge in standard configuration mounts 1X, 2X, and 10X cutting tips. (An optional 5X tip is available.) The gauge can be ordered in any desired configuration, such as with three tips of the same size. You may also order (for a lower price) a gauge with only a single cutting tip and two blank tips (spacers).

    Direct measurement of total dry-film coating thickness and thickness of individual coats of paint is a unique capability of the Tooke Paint Inspection Gage. Thus, in addition to routine use, it often serves as a “referee” instrument to calibrate indirect or non-destructive thickness measuring instruments.

    Note: Each microscope is validated before sale against a certified gage block traceable to the National Institute of Standards & Technology (NIST). An OEM calibration certificate is available for an additional fee


    line
    Applications
    line

    The Tooke Gage has been used to assess sandblast cleaning work, to measure plating and paint thickness on ceramics, metal, wood, and concrete, and even to measure protective backing thickness on mirrors. It is virtually the only tool for measuring paint on plastics. The quality of the incision in the film discloses much about the characteristics of the brittleness and adhesion of the material.

    Other uses include assessment of substrate conditions and coating adhesion, and observation of microscopic cracking, tendency for brittleness, cratering, or other microscopic film symptoms.


    line
    Construction
    line

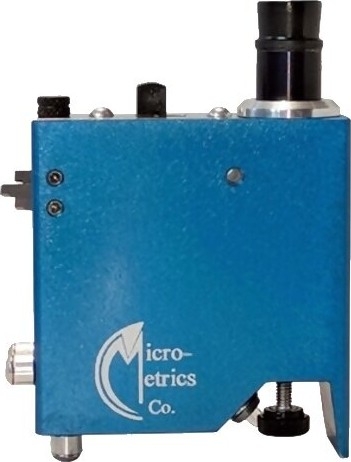

    The aluminum gauge body contains an illuminated microscope and mounts three tungsten-carbide cutting tips (that incise the “V-groove” for measuring) on the narrow side. Two guide studs project from the body on the same side as the cutting tips. The tripod thus formed by the three legs (guide studs and cutting tip) provides precise alignment of the tool with the surface to be grooved. A lanyard with keeper looped through the body secures the instrument to the inspector’s wrist. The entire unit is designed for convenience and completeness in field inspection tasks.

    The aluminum gauge body contains an illuminated microscope and mounts three tungsten-carbide cutting tips (that incise the “V-groove” for measuring) on the narrow side. Two guide studs project from the body on the same side as the cutting tips. The tripod thus formed by the three legs (guide studs and cutting tip) provides precise alignment of the tool with the surface to be grooved. A lanyard with keeper looped through the body secures the instrument to the inspector’s wrist. The entire unit is designed for convenience and completeness in field inspection tasks.


    line
    Operation
    line

    A special cutting tool (the cutting tip) that is integral to the gauge is used to incise a small precision V-groove through the paint film and into the substrate.

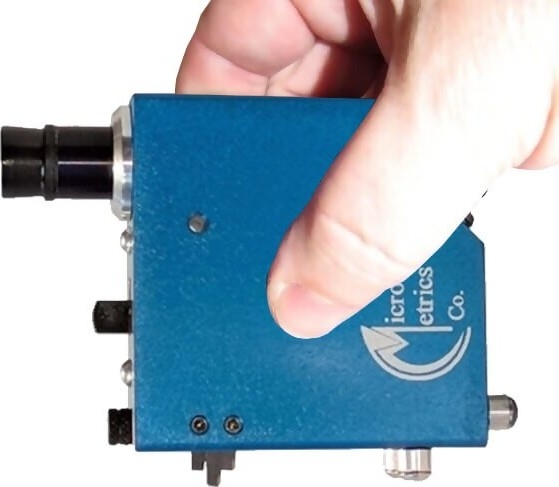

    Ensure the operable tip and both guide studs are in solid contact when incising the V-groove with the anodized OG212 Tooke Gage
    Incorrectly incising the V-groove with the anodized OG212 Tooke Gage. Notice the closer guide stud is not touching the surface.
    Tooke Gage cutting tips are precision-ground from tungsten-carbide blanks.

    The gauge in standard configuration mounts 1X, 2X, and 10X cutting tips. (An optional 5X tip is available.) The gauge can be ordered in any desired configuration, such as with three tips of the same size. You may also order (for a lower price) a gauge with only a single cutting tip and two blank tips (spacers).

    Diagram of cutting tip incisions
    The tip slot is marked for the standard tip arrangement (in the anodized body)
    Close-up of the 1X tip extended for use and two blank tips; mounted in a (very) old-style gauge body


    line
    Principle: using the Dual-Measure microscope
    line

    Measurement with a Tooke Gage is a function of the cutting tip face-angle and NOT of the microscope.

    One of the best things about the new Dual-Measure scopes is the return to an easy calculation system related to the cutting tip face-angle. As described in the measuring demo, and shown in the drawings in the Geometry section, below, count the hashmarks spaces for each layer of coating, and then calculate the coating depth using the the Dual-Measure scope conversion shown below.

    Conversion for the Dual-Measure scope:

    Cutting tip used:Face RatioEach counted hash measures:
    1X1 : 11 mil
    2X1 : 21/2 mil
    10X1 : 101/10 mil
    View through the new Dual-Measure reticle: the metric scale is marked in 20μm per hashmark.
    The discontinued universal microscope reticle is marked in 50μm per hash. For universal scope conversions, see the Reticles section below.


    line
    The geometry of the Tooke Gage incision
    line

    The easiest example of the process is demonstrated using the 1X cutting tip. In essence, you are cutting a triangle into your coating by incising the hypotenuse of a right-angle triangle. With the 45° precision-ground face of the 1X tip, you’re cutting an equi-lateral triangle: 1X tip has a 1 : 1 ratio. (See the 1X tip drawing below.) That is, by counting the hashmarks that define the horizontal triangle-side at the “bottom” of the triangle (and your view through the microscope), you are measuring across the ‘cut-width.’ The 1:1 ratio means your cut-width equals that is your coating depth. With the 10X tip, you’re drawing a right-angle triangle, and one-tenth (1/10) the number of hashmarks across the cut-width is your coating depth. (See 10X figure below.)

    Cutting tip diagram and ratio of cut-width : coating-depth

    An interim measuring demonstration
    This demonstration, using pictures through the no-longer available “universal” scope shows the process. A demonstration using the Dual-Measure reticle will be posted soon.

    Note that in the photo below, the zero-line of the reticle is not lined up for the actual measurement (nor does it need to be; any hashmark will do). The gray/silver-colored “line” is the metal substrate; the white “line” is the (inside of the) green coating, which is what is measured visually through the scope. (See below for a different annotated version.) The cutting tip “draws” the (specifically-angled, depending on the chosen tip face) incision, which allows for calculation of the coating thickness. In this photo, the black marker has not been used to make the edge (top) of the green coating more easily seen.

    The view through the universal microscope

    In the next photo, the “zero-line” of the reticle is not lined up with the edge of the primer coating (the white line to the left of the zero-line); it is approximately centered in the substrate (gray/silver line). (This was not intentional; lining up the camera moved the gauge slightly.* Nor does it need to be lined up; any hashmark will do.) “Line A” is on the edge between the substrate and the beginning of the primer-coating: begin your measurement there. “Line B” marks the top of the primer coating/beginning of the top coating (light blue). “Line C” is the incision into the top coating, made easier to see by using the black marker provided with the Tooke Gage. (* The next major Micro-Metrics project after the Dual-Measure scopes is a camera adapter! Stay tuned!)

    Annotated close-up through universal scope

    Thus, in this photo and using the discontinued “universal” scope with 50μm per hashmark space, the thickness measured for each tip equals:

    1 X tipwhite primer2 reticle / hashmark spaces100μm
    blue topcoat5 reticle / hashmark spaces250μm
    2X tipwhite primer2 reticle / hashmark spaces50μm
    blue topcoat5 reticle / hashmark spaces125μm
    10X tipwhite primer2 reticle / hashmark spaces10μm
    blue topcoat5 reticle / hashmark spaces25μm

    If you have an older gauge, with an English-only or metric-only reticle, please see this page for the measurements that would apply to this incision. These old-style scopes have a green-anodized barrel. The old-style scope is no longer available More information about this gauge is posted at that link.


    line
    Replacement tungsten-carbide cutting tips
    line

    Available in 1X (45°), 2X (26° 6') and 10X (5° 7') configurations. An optional 5X tip (11° 18') and blank unfaced tips are also available. (The blank tips provides lateral stability for the operable tip, if only one faced tip is used.)


    line
    Related Products
    line

    Micro-Metrics CTH01 Cutting Tip Holder

    • The Cutting Tip Holder, at a little under two inches long, allows easy use of a cutting tip without having to manipulate the Tooke® Paint Inspection Gage to make the incision and then manipulate the gauge again to view the incision through the microscope.
    related

    line

    Micro-Metrics CTH02 Cutting Tip Holder

    • The CTH02 (two-tip) Cutting Tip Holder allows easy use of carbide cutting tips without having to manipulate the Tooke® Paint Inspection Gage to make the incision and then manipulate the gauge again to view the incision through the microscope.
    related


    line
    Downloads
    line

    Micro-Metrics OG202 / OG212 Tooke Paint Inspection Gauge II - Data Sheet
    Micro-Metrics OG202 / OG212 Tooke Paint Inspection Gauge II - Dual-Measure Scope Swap Program
