Product Description

Coating Thickness Gages for ALL Metal Substrates

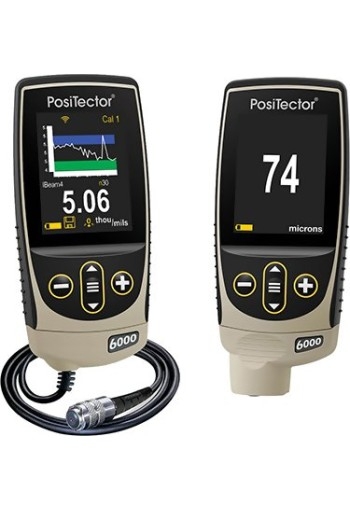

The DeFelsko PosiTector 6000 is a rugged, fully electronic coating thickness gauge that uses magnetic and eddy current principles to measure coating thickness on both ferrous and non-ferrous metals, accurately and quickly.

  • Ready to measure - no calibration adjustment required for most applications
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
  • Wear resistant ruby probe tip, for long-lasting calibration
  • PosiTector interchangeable platform - attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration showing traceability to NIST or PTB included (Long Form)

Conforms to ISO 2178/2360/2808, ISO 19840, ASTM B244/B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2, US Navy NAVSEA PPI 63101-000, US Navy NAVSEA 009-32, AS 2331.1.4, AS3894.3-B, and others

Kit Contents

The DeFelsko PosiTector 6000 Coating Thickness Gage Kit includes everything needed for testing:

  • PosiTector 6000 Coating Thickness Gauge Body
  • PosiTector 6000 Probe
  • Precision Plastic Shim(s)
  • Protective Rubber Holster
  • Wrist Strap and Protective Lens Shield
  • 3 AAA Alkaline Batteries
  • PosiSoft Software and USB Cable
  • Long Form Certificate of Calibration Traceable to NIST or PTB
  • Protective Carrying Case and Instructions
  • Two (2) Year Warranty

Features

Simple

  • Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
  • Ready to measure - no adjustment required for most applications
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • Flashing display - ideal in a noisy environment
  • RESET feature instantly restores factory settings

Durable

  • NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Wear-resistant probe tip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe

Accurate

  • Certificate of Calibration showing traceability to NIST or PTB included
  • Built-in temperature compensation ensures measurement accuracy
  • Hi-RES mode increases displayed resolution for precision applications
  • Conforms to national and international standards including ISO and ASTM

Versatile

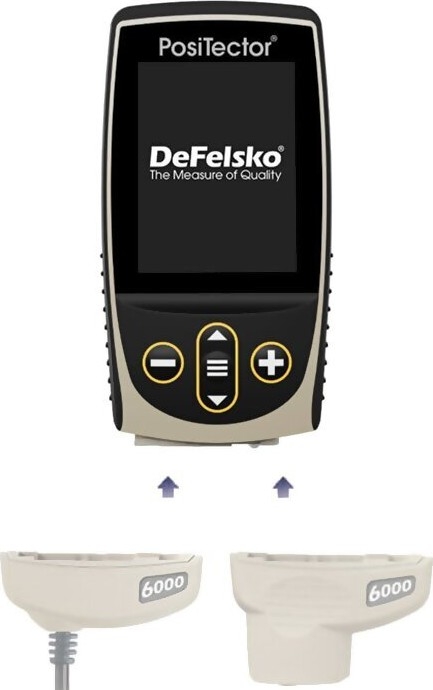

  • PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or hardness tester
  • Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors

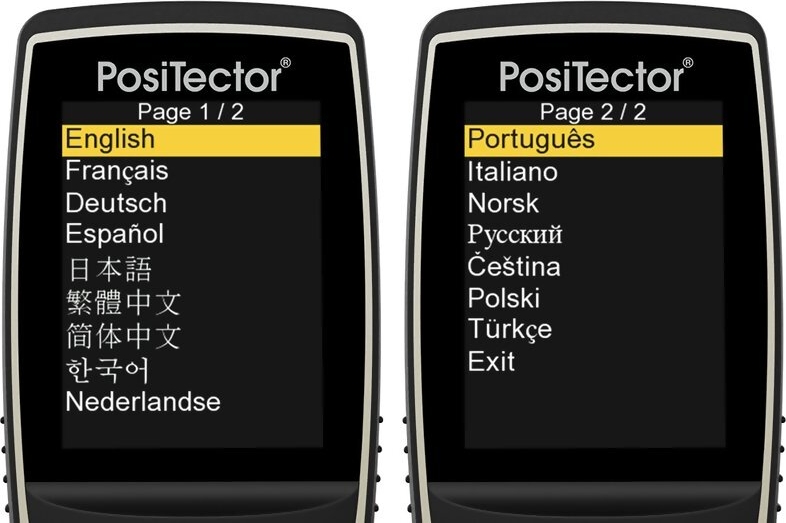

  • Selectable display languages
  • NEW Auto rotating display with Flip Lock
  • Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
  • Mils/Microns/mm switchable

Powerful

  • Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
  • NEW Screen Capture - save 100 screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • NEW Up to 30% longer battery life

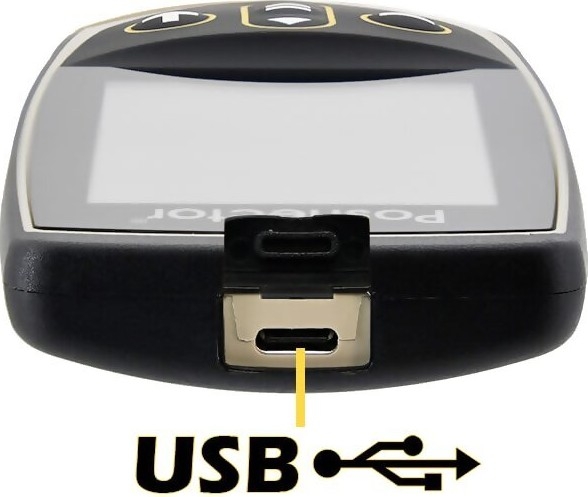

  • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
  • Every stored measurement is date and time stamped
  • Software Updates via web keep your gage current
  • Software Solutions for viewing, analyzing & reporting data

Standard Models Features

Includes ALL features as shown above plus:
  • NEW Storage of 1,000 readings per probe-stored readings can be viewed or downloaded

Advanced Models Features

Includes ALL features as shown above plus:
  • NEW Storage of 250,000 readings in up to 1,000 batches and sub-batches
  • Live graphing of measurement data
  • NEW Prompted Batch Mode-create pre-defined batches with on-screen text and image prompts for each reading
  • 3 Scan Modes - increase measurement speed to 180+ readings per minute
    • Normal - take continuous readings without lifting the probe
    • Statistics - take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
    • Limited Count Average - take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
  • NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
  • Multiple stored calibration adjustments for measuring on a variety of substrate conditions
  • NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

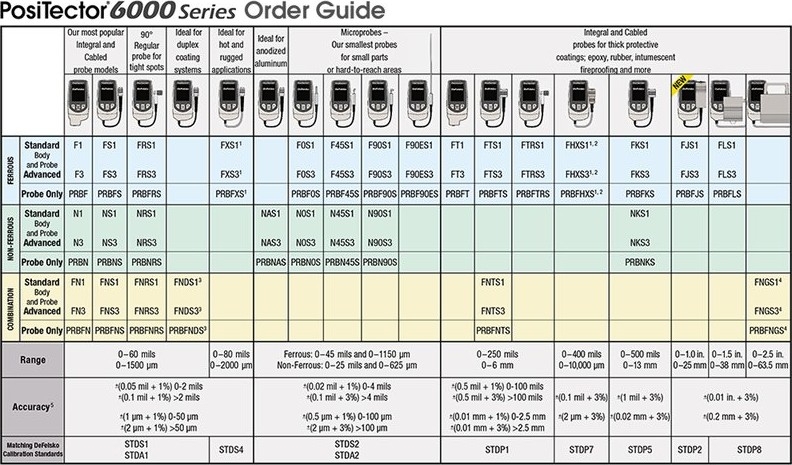

Order Guide

APPLICATIONS
Our most popular built-in and separate probe models
Non-magnetic coatings on FERROUS metals (Steel & Cast Iron) F1 (Standard)
F3 (Advanced)		FS1 (Standard)
FS3 (Advanced)
Non-conductive coatings on NON-FERROUS metals (Aluminum, Copper, etc.) N1 (Standard)
N3 (Advanced)		NS1 (Standard)
NS3 (Advanced)
Combination - ALL METALS FN1 (Standard)
FN3 (Advanced)		FNS1 (Standard)
FNS3 (Advanced)
Measuring Range



0 - 60 mils (0 - 1500 μ)

line
APPLICATIONS
Ideal for anodized aluminumMicroprobes - Our smallest probes for small parts or hard-to-reach areas
Non-magnetic coatings on FERROUS metals (Steel & Cast Iron) F0S1 (Standard)
F0S3 (Advanced)
Non-conductive coatings on NON-FERROUS metals (Aluminum, Copper, etc.) NAS1 (Standard)
NAS3 (Advanced)		N0S1 (Standard)
N0S3 (Advanced)
Measuring Range 0 - 25 mils (0 - 625 μ)

line
APPLICATIONS
High-range probes for very thick protective coatings on All Metals
Non-magnetic coatings on FERROUS metals (Steel & Cast Iron)FT1 (Standard)
FT3 (Advanced)		FTS1 (Standard)
FTS3 (Advanced)		FKS1 (Standard)
FKS3 (Advanced)
Non-conductive coatings on NON-FERROUS metals (Aluminum, Copper, etc.)  NKS1 (Standard)
NKS3 (Advanced)
Combination - ALL METALS FNTS1 (Standard)
FNTS3 (Advanced)
Measuring Range0 - 250 mils (0 - 6 mm)0 - 250 mils (0 - 6 mm)0 - 500 mils (0 - 13 mm)

  • Other models available.Click to view PDF for complete Order Guide.
  • Accuracies are stated as a fixed value plus a percentage of the gauges actual reading.
  • Check with us for the recommended calibration standards for each model of gauge.
  • Click to view DeFelsko PosiTector 6000 Probe Details

    • Comparison Chart

    DeFelsko Positector 6000 Standard Body
    Standard    		DeFelsko Positector 6000 Advanced Body
    Advanced
    NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
    NEW On-gage help explains menu items at the touch of a button
    NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
    NEW Ergonomic design with durable rubberized grip
    NEW Auto rotating display with Flip Lock
    Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
    NEW Screen Capture - save 100 screen images for record keeping and review
    NEW Instant-on feature quickly powers up the gage if recently powered down
    NEW Up to 30% longer battery life
    Reading Storage Capacity1,000 per probe250,000 in up to 1,000 batches
    Live graphing of measurement data———
    NEW Prompted Batch Mode - create pre-defined batches with on-screen text and image prompts for each reading———
    3 Scan Modes - increase measurement speed to 180+ readings per minute:
  • Normal – take continuous readings without lifting the probe
  • Statistics – take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
  • Limited Count Average – take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
    		• ———
    NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more———
    Multiple stored calibration adjustments for measuring on a variety of substrate conditions———
    NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result———
    WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates———
    Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software———
    Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols———

    Specifications

    Measuring principlemagnetic induction principle (Ferrous)
    eddy-current principle (Non-Ferrous)
    DisplayBacklit & Reversible LCD
    Data OutputUSB - "1" & "3" Models
    Bluetooth - "3" Models
    Surface Temp.Maximum 120 °F / 49 °C
    Power3 AAA batteries, Included
    Dimensions5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
    Weight5.8 oz. (165 g) without batteries
    Protection ClassMeets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
    Warranty2 Years
    Calibration CertificateCertificate of Calibration showing traceability to NIST included
    Min. Concave Radius1 inch (2" OD)

    Related Products

    DeFelsko Certified Polystyrene Test Block Kits

    • Ideal for use in the calibration lab, in the field or on the factory floor
    Click image for more info

    DeFelsko Certified Coated Metal Plates

    • Certified and labeled in both Metric and Imperial units
    Click image for more info

    DeFeslko STDCSS NIST Certified Plastic Shim Set, Includes 8 Size Shims

    • For use with all Type 2, electronic coating thickness gages
    Click image for more info

    DeFelsko STDZ Zero Plates

    • Use with Certified Coated Metal Standards
    Click image for more info

    DeFelsko Inspection Kits

    • Select from a variety of gage bodies and probes
    Click image for more info

    Downloads

    DeFelsko PosiTector 6000 Coating Thickness Gauges - Data Sheet
    DeFelsko PosiTector 6000 Coating Thickness Gauges - Instruction Manual
    DeFelsko PosiTector 6000 Coating Thickness Gauges - Quick Guide
    DeFelsko PosiTector 6000 Coating Thickness Gauges - Online Probe Details
    Accessories for DeFelsko Inspection Instruments - Online Catalog
    DeFelsko PosiTector 6000 Coating Thickness Gauges - Online Instruction Manual with Videos

    F.A.Q.

    Is the DeFelsko PosiTector 6000 calibrated at the factory?

     DeFelsko PosiTector 6000 instruments arrive fully calibrated and include a Long-Form Certificate of Calibration traceable to NIST or PTB. The Certificate of Calibration documents actual readings taken by your instrument at our calibration laboratory, on standards traceable to a national metrology institute. Beware of ‘Certificates’ or ‘Certificates of Conformance’ offered by competitors. These typically do not include actual instrument readings, and are often insufficient to meet common quality requirements.

    Does the DeFelsko PosiTector 6000 need to be ‘calibrated’ or ‘adjusted prior’ prior to use? Do I need to perform a two-point adjustment prior to measuring?

     The innovative probe technology and factory calibration in the DeFelsko PosiTector 6000 means that it arrives ready-to-measure - usually there is no need to perform a two-point calibration adjustment. Ruby or alumina probe tips on standard probe models eliminate wear, meaning that the factory calibration is maintained throughout the lifetime of the probe. Whether out of the box or after years of use, DeFelsko PosiTector 6000 will continue to provide accurate results.For highest confidence and best measurement accuracy, observe our “golden rule” - simply check ZERO (or the known thickness of a shim) on the uncoated part, adjust if necessary, and then measure the coated part. This ensures that the probe is properly adjusted for substrate characteristics including mass, metallurgy, curvature, temperature and roughness.

    Do your instruments require any formal training for use? Do you offer ‘demo’ models?

     No. Our instruments are designed for simple operation, feature easy-to-use menus, both full and quick instruction manuals, and helpful videos. In lieu of demonstration models, we provide unlimited technical support via telephone and/or email, and a limited 30-day money back guarantee.

    How often should the DeFelsko PosiTector 6000 be recalibrated?

     DeFelsko PosiTector 6000 probes include a Certificate of Calibration with no expiry or end date. They have no shelf life, therefore the length of time in the field is not a good indicator for recalibration intervals. Many organizations with quality programs and recertification programs require annual recalibrations, and this is a good starting point for most users. DeFelsko recommends that customers establish calibration intervals based upon their own experience and work environment. Based on our product knowledge, data and customer feedback, a one year calibration interval from the date the instrument was placed in service is a good starting point.

    What can the DeFelsko PosiTector 6000 measure?

    DeFelsko PosiTector 6000 paint thickness probes have different capabilities depending on the model.

    • ‘Ferrous’ model probes (order code beginning in ‘F’
      ex. FS1) can measure non-magnetic coatings applied to ferrous (magnetic) metals, typically carbon steel.
    • ‘Non-ferrous’ model probes (order code beginning in ‘N’ ex. NRS3) can measure non-conductive coatings applied to non-ferrous metals.
    • ‘Combination model probes (order code beginning in ‘FN’ ex. FNTS1) can measure non-magnetic coatings applied to ferrous (magnetic) metals, AND non-conductive coatings applied to non-ferrous metals

    Is the DeFelsko PosiTector 6000 affected by the surface roughness (profile) of the metal substrate below the coating?

     All coating thickness gages are influenced to some degree by substrate roughness, as shown in the below image. It is generally accepted that coating thickness should be measured from the highest ‘peaks’ in the rough surface thus ensuring they are covered by the protective coating. However, coating thickness gages will instead measure the coating thickness from the ‘effective magnetic plane, which is located somewhere between the highest peaks and deepest valleys of the profile. SSPC-PA 2 proposes several solutions depending upon the instrument type and the particular situation. Similar methods are suggested by ASTM D7091 and ISO 19840. One option is to verify the gage reads zero on the uncoated steel substrate, and adjust to zero if necessary. This is a popular solution when the metal surface is relatively smooth. Since it is difficult to ensure that the probe tip is sitting on the highest peaks of the surface profile, another option is to place a plastic shim of a known thickness that is close to the expected thickness of the applied coating between the probe and substrate and adjust to the stated thickness of the shim- referred to as a 1-point adjustment. The plastic shim sits on the peaks of the surface profile over a greater area than the probe tip, ensuring that the adjustment is being taken ‘over the peaks’. This best simulates a coating covering the peaks of the surface profile.

    Can the DeFelsko PosiTector 6000 measure coatings on stainless steel?

     "Stainless steel" is a term used to generally categorize a wide variety of corrosion and heat-resistant alloys. In specific terms of metallurgy, a “stainless steel” is any iron-based alloy containing a minimum of 10.5% chromium content by mass. Some stainless steel alloys have a relatively low magnetic response (often called “partially/weakly magnetic”). Others have no magnetic response whatsoever, and some possess a ferromagnetic response similar to carbon steel.The DeFelsko PosiTector 6000 is uniquely able to measure partially magnetic stainless steel alloys, an application that is challenging for many competitive instruments. DeFelsko PosiTector 6000 FN (combination ferrous/non-ferrous) probe models can often measure consistently on partially magnetic substrates with a simple Zero adjustment. For more challenging applications, the “N-Lock” measurement mode permits accurate measurement of non-conductive coatings applied to partially magnetic substrates.

    Can the DeFelsko PosiTector 6000 measure coatings on hot surfaces?

     The DeFelsko PosiTector 6000 FXS and FHXS Xtreme probes are ideal for measuring coating thickness on hot and/or rough surfaces (250°C, 500°F maximum). All DeFelsko PosiTector 6000 probe are capable of measuring on hot surfaces. Standard probe models can operate at environments up to 50˚C (120˚F). However, if the probe is lifted clear of the surface as soon as a reading is taken and is allowed to cool, measurements can be taken at higher temperatures. Simply ensure that the probe remains at a temperature of less than 50˚C (120˚F), and cool enough to handle with an unprotected hand.

    What is the minimum part size required to take a reading?

     To ensure a part’s dimensions are suitable for a DeFelsko PosiTector 6000 probe, simply check ZERO on the uncoated part and adjust if necessary. Verify accuracy by measuring a plastic shim placed on the uncoated part. If the measurement is within the combined tolerances of the shim and probe, the probe is suitable for measuring the coated part.

    Can the DeFelsko PosiTector 6000 be used underwater?

     While the PosiTector gage body and probe connector are not suitable for immersion in water, DeFelsko PosiTector 6000 regular cabled probes are hermetically sealed and ideal for underwater use. Extended cables are available (up to 75 m/250 ft) for underwater or remote measuring.

    Is the DeFelsko PosiTector 6000 intrinsically safe?

     While the DeFelsko PosiTector 6000 is not designed as an intrinsically safe device, our PosiTest mechanical gages are ideal for measuring coating thickness in hazardous operating environments.

    Can the DeFelsko PosiTector 6000 measure nickel on steel?

     Yes, but it depends upon the particular type of nickel coating that has been applied to the steel. When nickel plating is deposited by a process of electrolysis (employing an electric current in the nickel bath), the resultant coating – commonly called “e-nickel” – is always conductive and magnetic to some degree and cannot be accurately measured by our gages when applied to ferrous or non-ferrous metals. Electroless nickel coatings are deposited by an autocatalytic process which does not involve the addition of an electric current. If the nickel bath in this process contains a minimum concentration of ~8% phosphorus, the resulting nickel plating is effectively non-magnetic and its thickness can be accurately measured on ferrous steel with a magnetic principle coating thickness gage such as a DeFelsko PosiTector 6000 F model.

    What is the measurement range of the DeFelsko PosiTector 6000?

     The coating thickness measurement range of the DeFelsko PosiTector 6000 is dependent on which interchangeable probe is attached. DeFelsko PosiTector 6000 probes are available for measuring a wide variety of coating thickness applications.For example, the DeFelsko PosiTector 6000 FN probe can measure coating thicknesses up to 1500 um (60 mils), while the DeFelsko PosiTector 6000 FNGS probe measures coatings up to 63.5 mm (2.5 inches) thick. No matter your application, DeFelsko likely has a measuring solution to satisfy your requirement.

    What is a mil?

     A mil, also known as a Thou, is equal to 1 one-thousandth of an inch (25.4 microns).

    What is a micron?

     A micron, sometimes called a micrometer, is equal to one-millionth of a meter or one-thousandth of a millimeter (~0.000039").
    ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
    MODELS
    Ferrous Metals - Standard Models
    $720.00
    $835.00
    $890.00
    $1,120.00
    $1,120.00
    $1,120.00
    $835.00
    $1,120.00
    $1,460.00
    $945.00
    $1,010.00
    $1,010.00
    $1,585.00
    $1,350.00
    $1,240.00
    Non-Ferrous Metals - Standard Models
    $800.00
    $1,030.00
    $910.00
    $980.00
    $1,120.00
    $1,120.00
    $1,120.00
    $1,120.00
    All Metals - Standard Models
    $1,120.00
    $1,240.00
    $1,295.00
    $1,350.00
    $1,865.00
    Ferrous Metals - Advanced Models
    $1,185.00
    $1,300.00
    $1,355.00
    $1,585.00
    $1,585.00
    $1,585.00
    $1,300.00
    $1,585.00
    $1,925.00
    $1,410.00
    $1,475.00
    $1,475.00
    $2,050.00
    $1,815.00
    $1,705.00
    Non-Ferrous Metals - Advanced Models
    $1,265.00
    $1,375.00
    $1,445.00
    $1,585.00
    $1,585.00
    $1,585.00
    $1,585.00
    $1,495.00
    All Metals - Advanced Models
    $1,585.00
    $1,705.00
    $1,760.00
    $1,815.00
    $2,330.00
    ACCESSORIES
    $385.00
    $385.00
    $385.00
    $385.00
    $385.00
    $340.00
    $20.00
    $45.00
    $10.00
    $225.00
    $65.00
    $65.00
    $30.00
    $225.00
    $25.00
    View Cart
    Copyright © 2025 Abq Industrial
    Loading...
