Determines the film hardness by pencil test (Wolff-Wilborn) in accordance with ISO 15184 and ASTM D3363

---

Conforms to ISO 15184, ASTM D3363, JIS K-5600, BS 3900-E19, MIL C 27 227, ECCA-T4-1, SNV 37113, SIS184187, NEN 5350

---

Determines the film hardness by pencil test (Wolff-Wilborn) in accordance with ISO 15184 and ASTM D3363

• Quickly and easily evaluate the scratch resistance and relative hardness of coatings
• 14 quality graphite pencils-6B to 6H hardness values in a protective case
• Custom aluminum pencil sharpener specifically designed for the Pencil Hardness Test-includes 5 and 6 mm reference marks for precision graphite length
• Comes complete with everything needed for testing
• Optional Pencil Cart exerts a constant force of 7.35 N (~1.65 lbf) at the specified 45° angle (included with Complete Kit)

Conforms to ISO 15184, ASTM D3363, JIS K-5600, BS 3900-E19, MIL C 27 227, ECCA-T4-1, SNV 37113, SIS184187, NEN 5350

Kit Contents

Pencil Cart Leveling Rod

Features

• Quickly and easily evaluate the scratch resistance and relative hardness of coatings in accordance with ISO 15184 and ASTM D3363
• For use on paint, films, lacquer, and resins
• 14 quality graphite pencils-6B to 6H hardness values – in a protective aluminum case-6B, 5B, 4B, 3B, 2B, B, HB, F, H, 2H, 3H, 4H, 5H, 6H
• Custom aluminum pencil sharpener with hardened steel blades specifically designed for the Pencil Hardness Test. Includes 5 and 6 mm reference marks for precision graphite length in conformance to national and international standards.
• Included pack of 400 grit sandpaper for flattening pencil leads prior to testing
• Comes complete with everything needed for testing

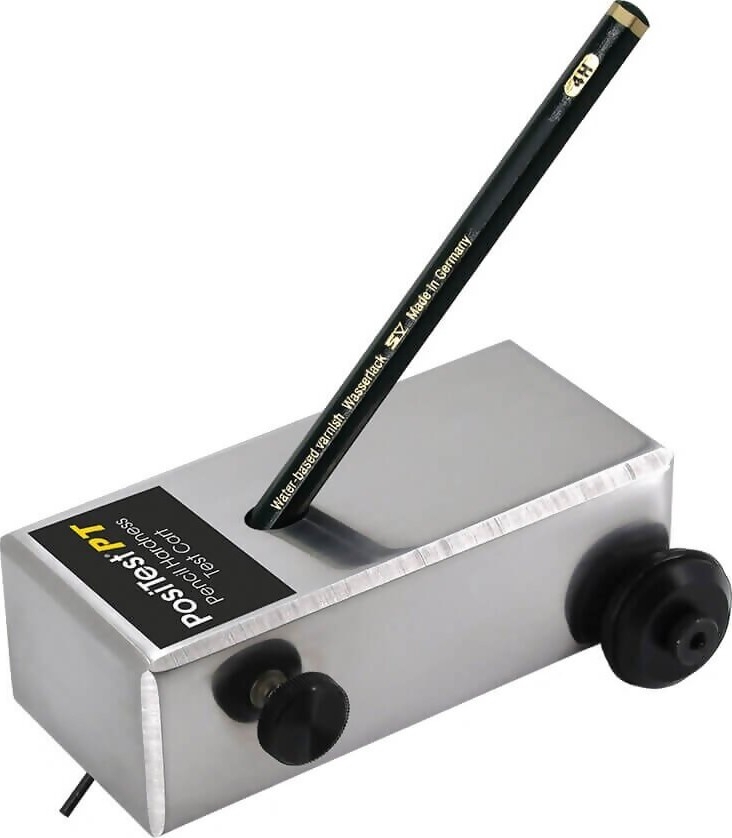

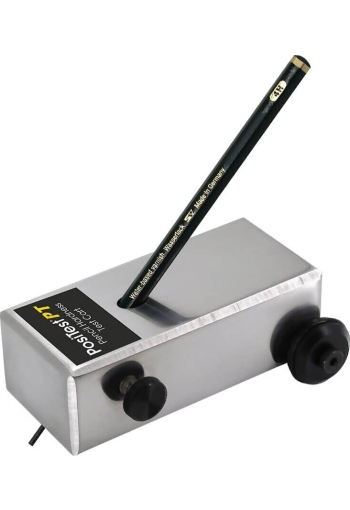

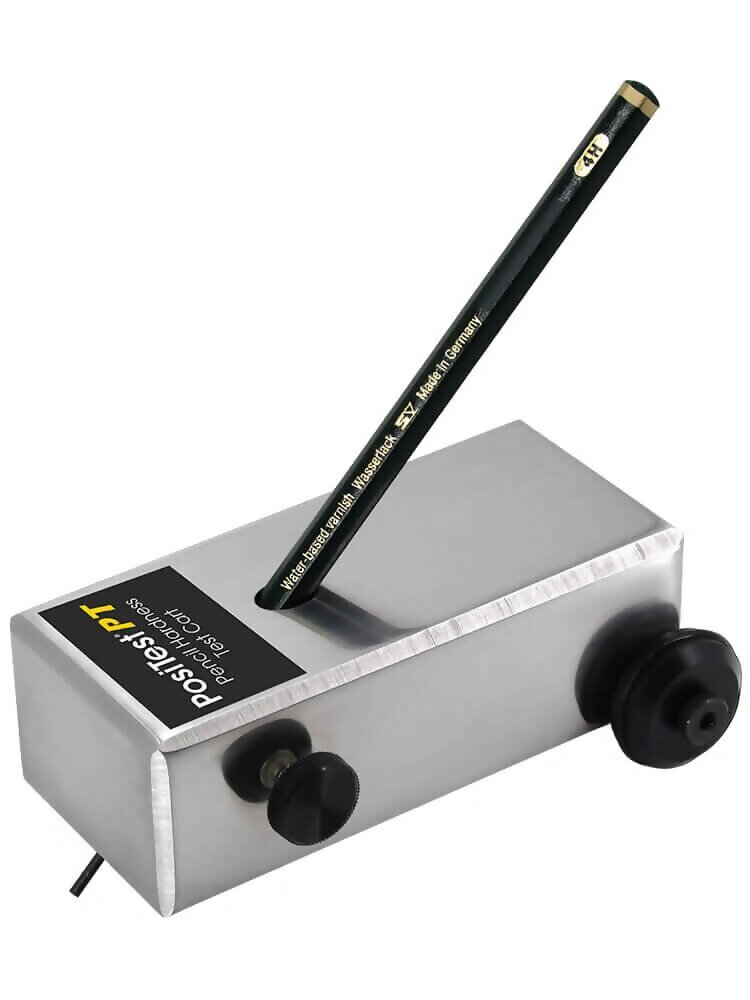

Pencil Cart Features

• Optional Pencil Cart exerts a constant force of 7.35 N (~1.65 lbf) at the specified 45° angle (included with the Complete Kit)
• Included Leveling Rod ensures the cart is parallel to the surface
• Convenient thumbscrew allows for quick pencil changes

Accessories

DeFelsko Replacement Pencils Replacement pencils are available as a complete set of 14 or as a 12 pack for individual hardnesses DeFelsko PTPENCILSET Complete Set of 14 Replacement Pencils one each-6B to 6H DeFelsko PTPENCIL6H - 12 Pencils of Individual Hardness - 6H DeFelsko PTPENCIL5H - 12 Pencils of Individual Hardness - 5H DeFelsko PTPENCIL4H - 12 Pencils of Individual Hardness - 4H DeFelsko PTPENCIL3H - 12 Pencils of Individual Hardness - 3H DeFelsko PTPENCIL2H - 12 Pencils of Individual Hardness - 2H DeFelsko PTPENCILH - 12 Pencils of Individual Hardness - H DeFelsko PTPENCILF - 12 Pencils of Individual Hardness - F DeFelsko PTPENCILHB - 12 Pencils of Individual Hardness - HB DeFelsko PTPENCILB - 12 Pencils of Individual Hardness - B DeFelsko PTPENCIL2B - 12 Pencils of Individual Hardness - 2B DeFelsko PTPENCIL3B - 12 Pencils of Individual Hardness - 3B DeFelsko PTPENCIL4B - 12 Pencils of Individual Hardness - 4B DeFelsko PTPENCIL5B - 12 Pencils of Individual Hardness - 5B DeFelsko PTPENCIL6B - 12 Pencils of Individual Hardness - 6B

DeFelsko PTBLADES Replacement Blades Replacement Blades (qty 10) for PosiTest PT Pencil Sharpener

DeFelsko CHDTMAG10X Illuminated 10x Magnifier For visual assessment of scratch and gouge marks

Downloads

DeFelsko PosiTest PT Pencil Hardness Test - Data Sheet

DeFelsko PosiTest PT Pencil Hardness Test - Instruction Manual
