Product Description

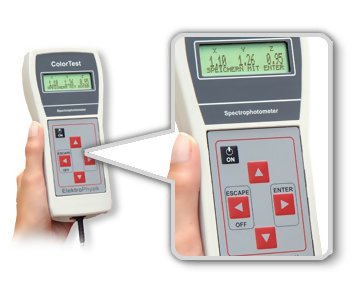

ColorTest

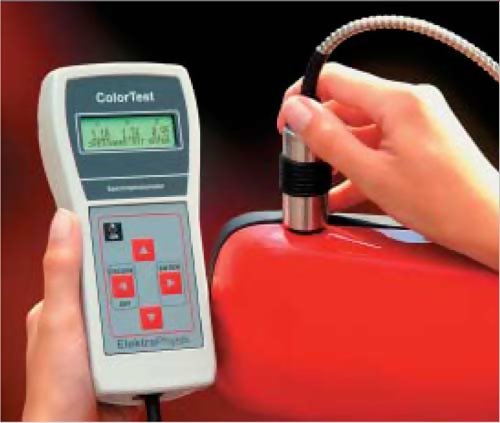

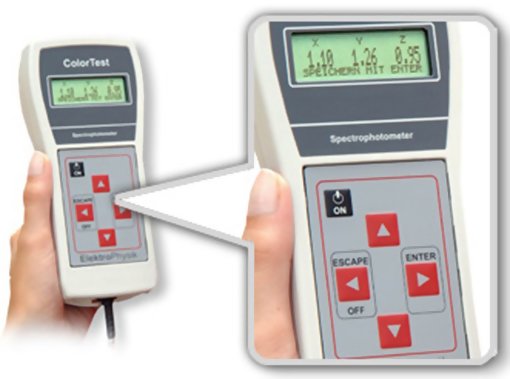

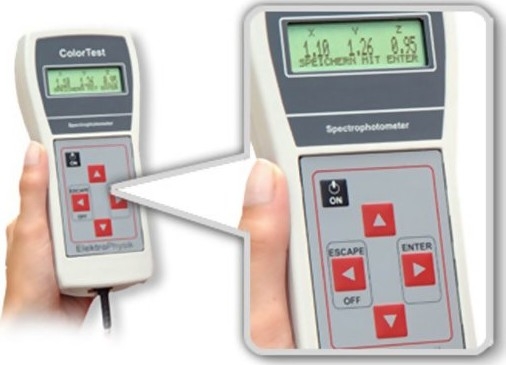

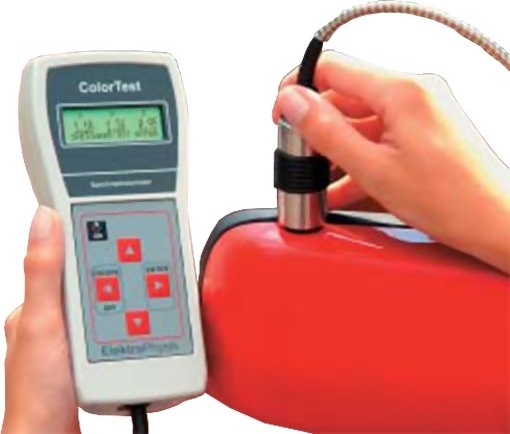

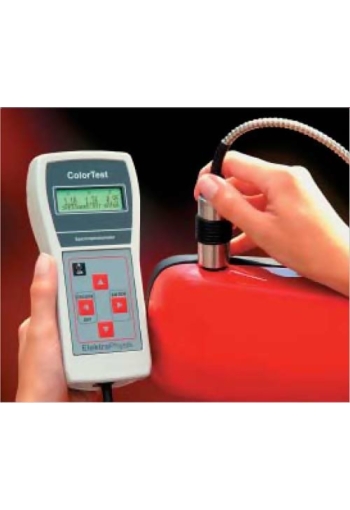

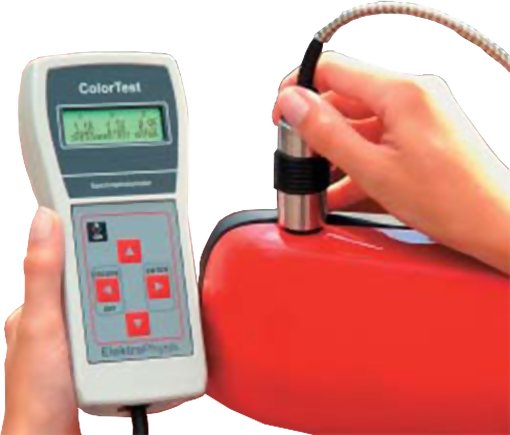

Designed for high-precision color measurement, the versatile ColorTest works on the spectrophotometric principle which is by far the most advanced and precise color measurement method. Featuring a 45°/0° measuring geometry according to DIN 5033, the external probe illuminates the sample with a defined light source to measure spectrally the light remitted.


line
Kit Contents
line

  • ElektroPhysik ColorTest
  • NiMH rechargeable battery pack
  • Temperature secured charging station 100 – 240 V, 50/60 Hz AC white reference with BAM-calibration certificate
  • CD-ROM with interactive instruction software and Color DaTra demo-version
  • Transport case


line
Features
line

  • Quality control on the production
  • Floor (reduced reject rates)
  • Color measurement and recording for quality conformance inspection for QM-systems according to DIN EN ISO 9000 standards
  • Color distance measurement (sample/reference)
  • Measurement of absolute color spaces (in a pre-selected color system and with selected type of standard illumination and observation angle)
  • Evaluation of measured color information (optional report software)

High repeatability, comprehensive report software and an excellent cost/performance ratio make ColorTest an indispensable and powerful tool for quality control. Other advantages:

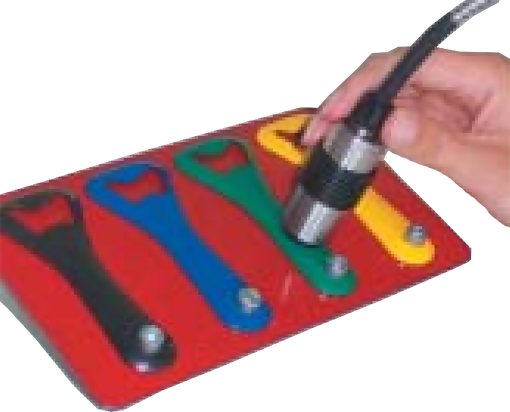

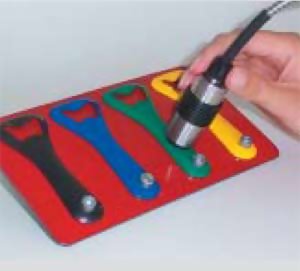

  • External, spring-loaded probe for measuring even small parts at any angle
  • Small probe head due to sample illumination through LEDs
  • Nonvolatile data memory for up to 1000 color readings and for 100 color readings including remission spectra
  • Serial data transmission


line
Optional Accessories
line

ColorDaTra report-software:

  • data transfer
  • data base for color readingsand spectral information
  • graphical display of colorcoordinates and color differences as related to stored color references, e.g. in the CIE L*a*b* color system
  • trend line capability
  • quality-check: selectable colordistances E, passed/failed toolstatistics
  • printing function for graphsand data reports
  • RS-232C interface cable
  • additional NiMH rechargeablebattery pack
  • precision support for measuringon smaller samples


line
Downloads
line

ColorTest - Instruction Manual
