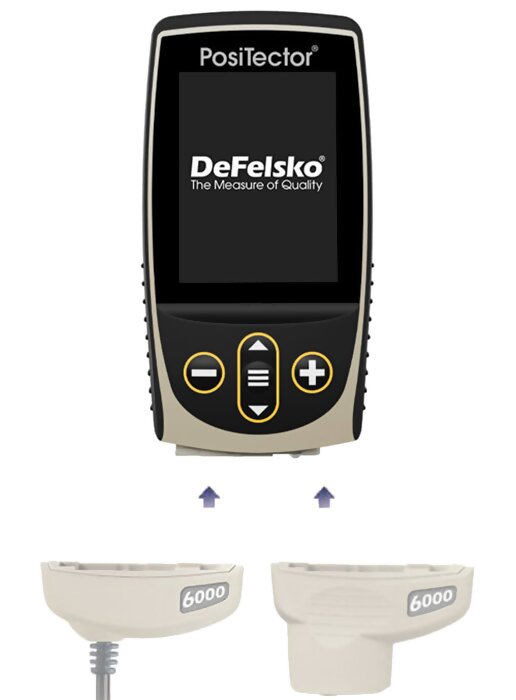

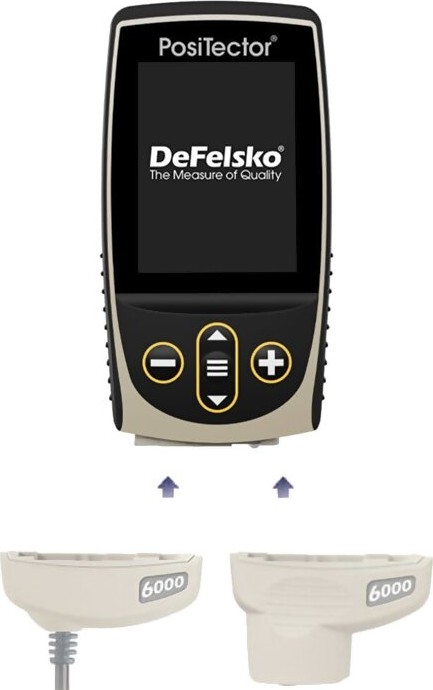

PosiTector Gage Bodies can be used with all PosiTector probes.

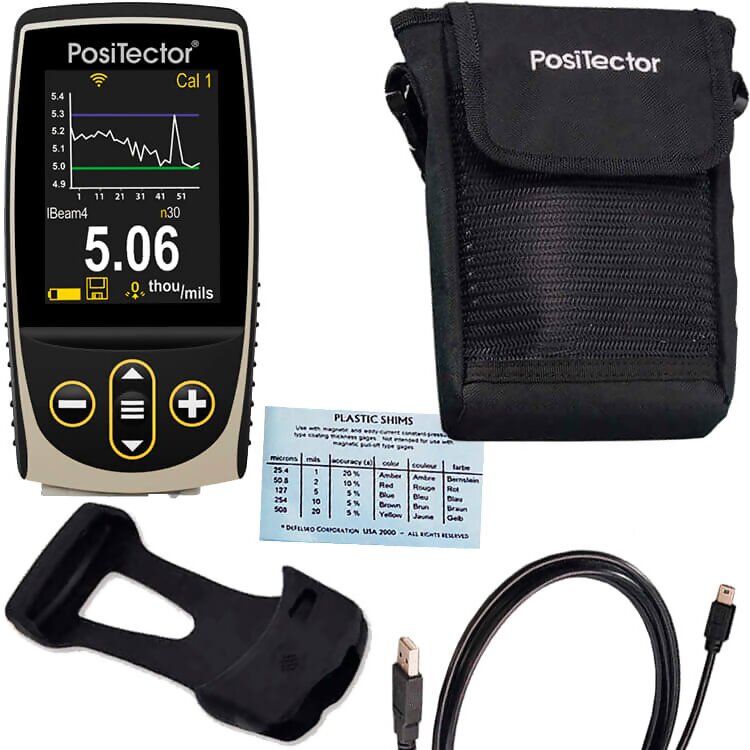

Kit Contents

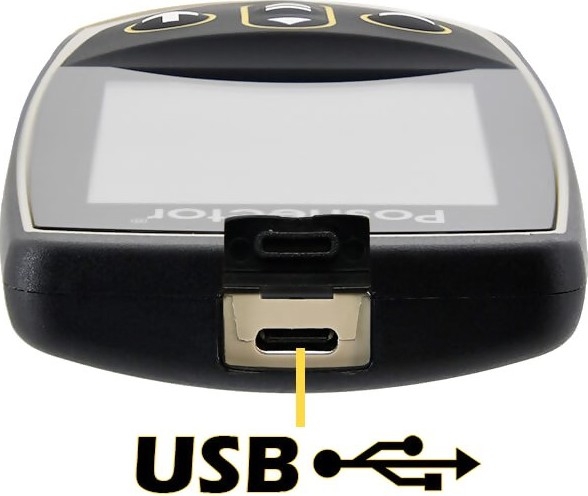

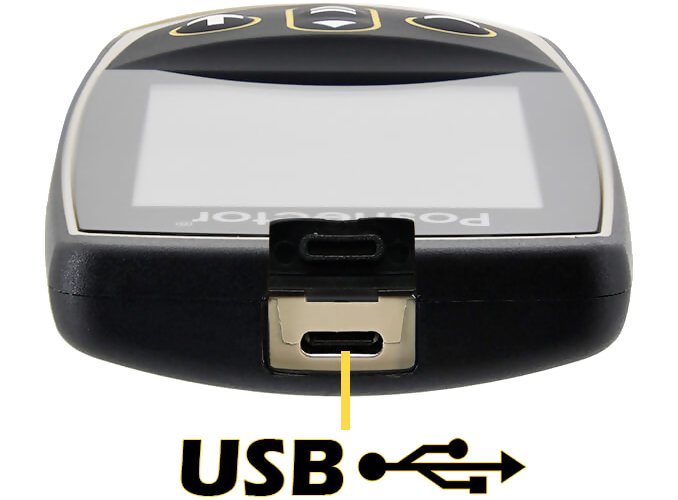

PosiTector Standard Gage Body BDYAVD-G Protective rubber holster with belt clip Wrist strap and protective lens shield 3 AAA alkaline batteries USB cable Nylon carrying case Two (2) year warranty

Features

• Storage of 250,000 readings in up to 1,000 batches and sub-batches
• Touchscreen keyboard quickly renaming batches, adding notes, and more
• WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
• Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
• Store thickness, profile, environmental, wall thickness, hardness and salt contamination measurements in individual batches

DeFelsko PosiTector Gage Bodies: Feature Comparison Chart

Feature Comparison Chart For all DeFelsko PosiTector:	Standard	Advanced
NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
NEW On-gage help explains menu items at the touch of a button
NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
NEW Ergonomic design with durable rubberized grip
NEW Auto rotating display with Flip Lock
NEW Screen Capture - save 100 screen images for record keeping and review
NEW Up to 30% longer battery life
Reading Storage Capacity	1,000 per probe	250,000 in up to 1,000 batches
NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more	---
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates	---
Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software	---
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols	---

DeFelsko PosiTector 6000 Only:
Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
NEW Instant-on feature quickly powers up the gage if recently powered down

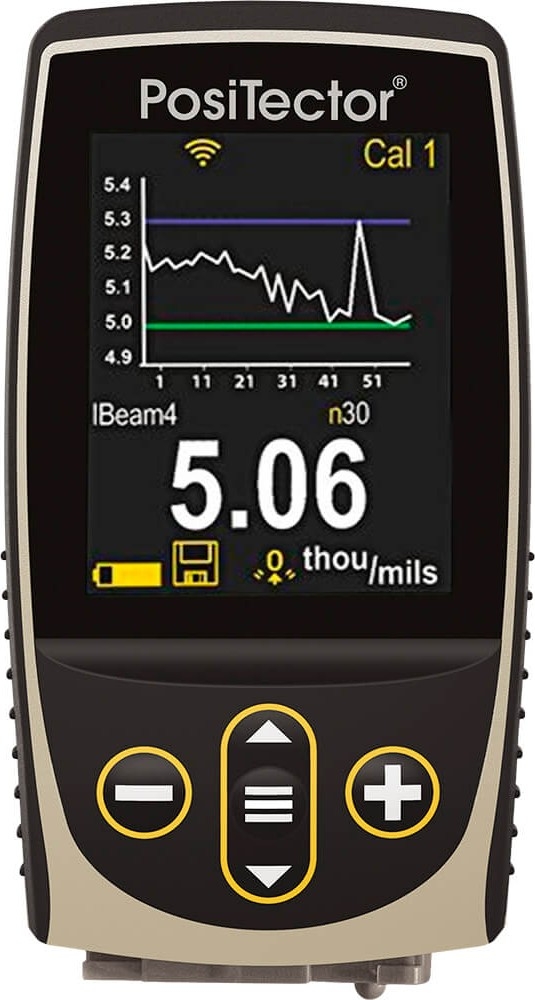

Live graphing of measurement data	---

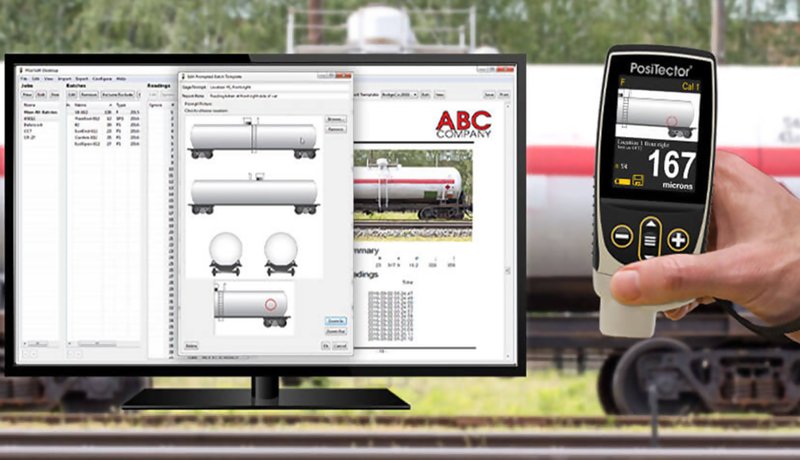

NEW Prompted Batch Mode - create pre-defined batches with on-screen text and image prompts for each reading	---
3 Scan Modes - increase measurement speed to 180+ readings per minute: Normal – take continuous readings without lifting the probe Statistics – take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning Limited Count Average – take continuous readings up to a user-specified count. The gage displays and records the average of the readings.	---
Multiple stored calibration adjustments for measuring on a variety of substrate conditions	---
NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result	---

DeFelsko PosiTector 200 Only:
Measure the total thickness of a coating system or up to 3 individual layer thicknesses in a multi-layer system	---
Graphics mode with screen capture for detailed analysis of the coating system	---
NEW Prompted Batch Mode - create pre-defined batches with on-screen text and image prompts for each reading	---
Live graphing of measurement data	---

DeFelsko PosiTector SST Only:
Easy 1-2-3 gage interface guides users through the Bresle test method

DeFelsko PosiTector SPG Only:
NEW Instant-on feature quickly powers up the gage if recently powered down
SmartBatch™ allows entry of user-defined parameters and criteria to for quick statistical analysis comply with standards such as ASTM D4417 and SSPC PA-17	---
Live graphing of measurement data	---

DeFelsko PosiTector DPM Only:
NEW Instant-on feature quickly powers up the gage if recently powered down
Enhanced Auto Log mode turns the gage off between readings for up to 8 months of battery life. Each reading can be uploaded to PosiSoft.net or an FTP server using WiFi. Automatically group readings into batches at daily, weekly, or monthly intervals.	---
User defined limits for all parameters - visible and audible warnings. Receive email alerts when connected to WiFi.	---
Trend Charts graph readings in real-time	---
Wet bulb temperature can be displayed and recorded	---

DeFelsko PosiTector UTG Only:
Pre-programmed velocities - simply select from a list of common materials or enter your own with ease
A-Scan with adjustable Gain and screen capture. UTG M and UTG P probes include dual cursors to measure the distance between echoes	---
B-Scan - displays a cross sectional profile of the test material	---

DeFelsko PosiTector RTR-H Only:
Produces a more accurate peak-to-valley height measurement. See linearized peak height (HL)

DeFelsko PosiTector RTR-3D Only:
NEW Ergonomic design with durable rubberized grip
Live graphing of measurement data	---
Download high resolution Surface Data Files (.SDF) for analysis in the included PosiSoft or third-party software	---
Generates two dimensional (2D) and three dimensional (3D) thumbnail images. Ideal for inclusion into reports and confirming consistent blasting results	---

DeFelsko PosiTector IRT Only:
NEW Instant-on feature quickly powers up the gage if recently powered down
Trend Charts graph readings in real-time	---
Store thickness, profile, environmental salt contamination, hardness, and wall thickness measurements in individual batches	---

DeFelsko PosiTector SHD Only:
NEW Instant-on feature quickly powers up the gage if recently powered down
Auto Sub-Batch - automatically create sub-batches after the required number of readings are taken	---
Live graphing of measurement data	---
Store thickness, profile, environmental, wall thickness, and hardness measurements in individual batches	---

DeFelsko PosiTector BHI Only:
NEW Instant-on feature quickly powers up the gage if recently powered down
Auto Sub-Batch - automatically create sub-batches after the required number of readings are taken	---
Live graphing of measurement data	---
Store thickness, profile, environmental, wall thickness, and hardness measurements in individual batches	---

For use with the: DeFelsko PosiTector 6000, DeFelsko PosiTector 200, DeFelsko PosiTector SPG, DeFelsko PosiTector RTR H, DeFelsko PosiTector RTR 3D, DeFelsko PosiTector DPM, DeFelsko PosiTector IRT, DeFelsko PosiTector SST , DeFelsko PosiTector UTG, DeFelsko PosiTector SHD, DeFelsko PosiTector BHI
