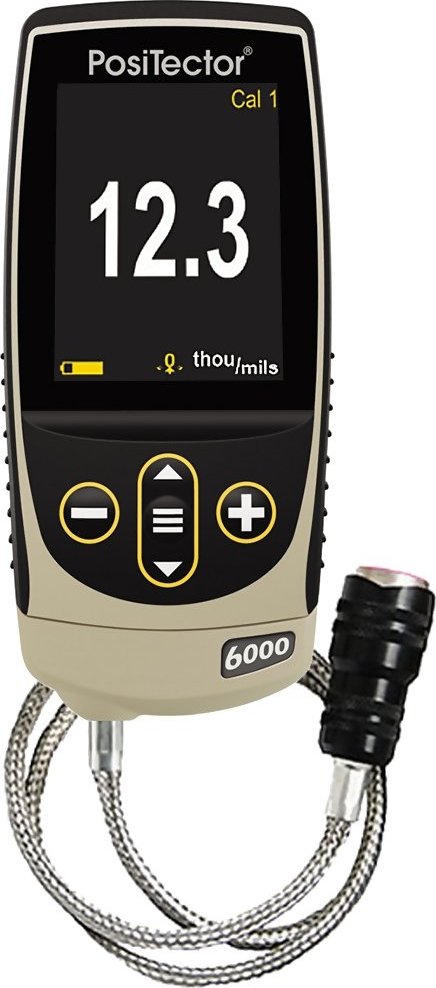

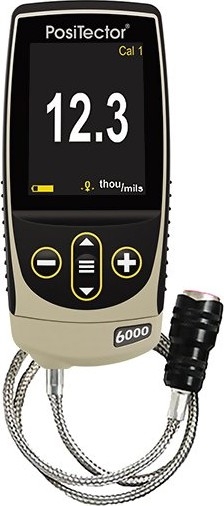

DeFelsko FHXS1-G PosiTector 6000 FHXS1 Standard Hi Temperature Coating Thickness Gauge with separate probe for measuring on hot and rough surfaces.

---

FHXS Xtreme™ - Measures non-conductive coatings on steel substrates. Alumina wear face and braided cable for hot or rough surfaces. Hot surfaces up to 250° C (500° F).

---

Model: FHXS1 with Standard (1) Body

---

Temperature: up to 500°F (250°C)

---

Range: 0 - 400 mils (0 - 10000 um)

---

Resolution: 1 mil (0.02 mm)

---

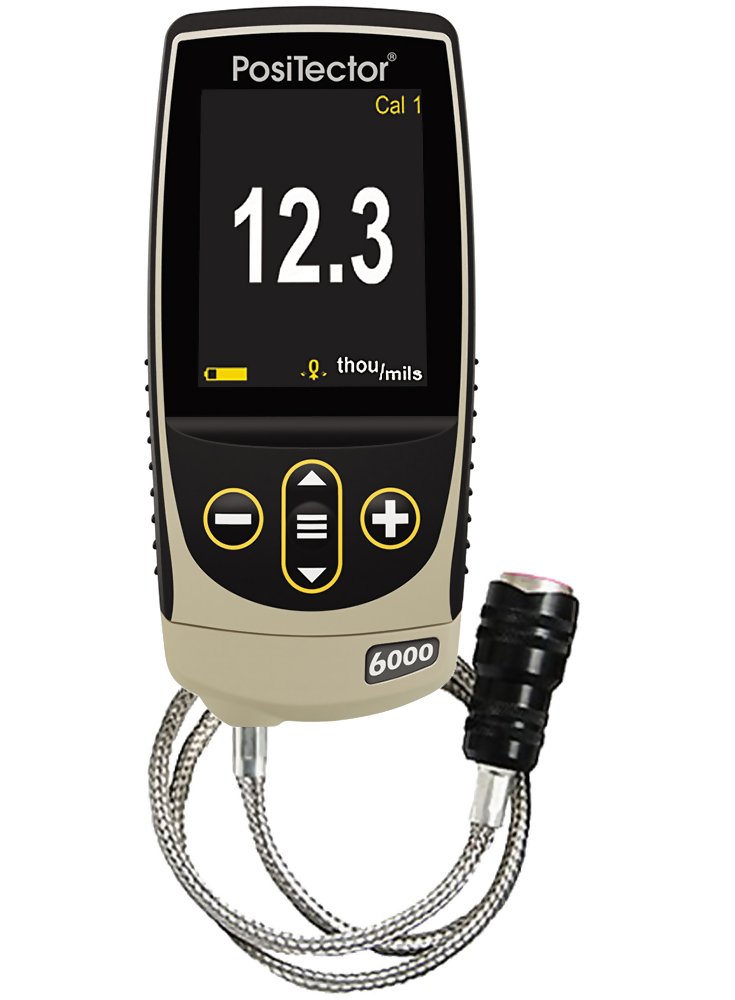

The DeFelsko FHXS1-G Positector 6000 FHXS1 Standard Ferrous Coating Thickness Gauges is a precise, rugged tester designed to measure non-conductive coatings on steel substrates.

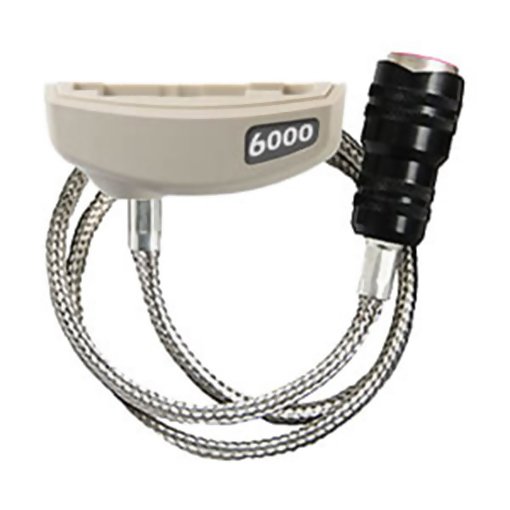

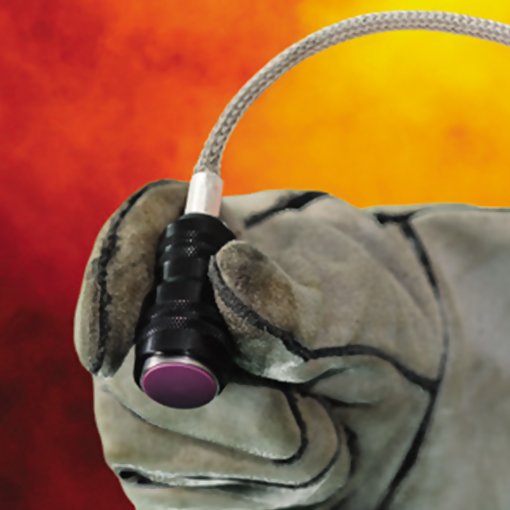

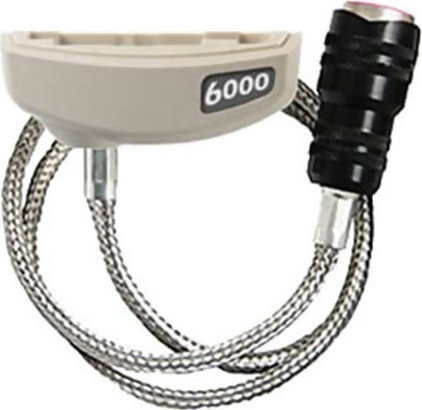

The PosiTector FHXS1 features the FHXS Xtreme probe with Alumina wear face and braided cable for hot or rough surfaces.Hot surfaces up to 250° C (500° F).

The DeFelsko FHXS1-G Positector 6000 FHXS1 Standard Ferrous Coating Thickness Gauges has a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 1,000 in one group memory reading storage capacity and USB data output.

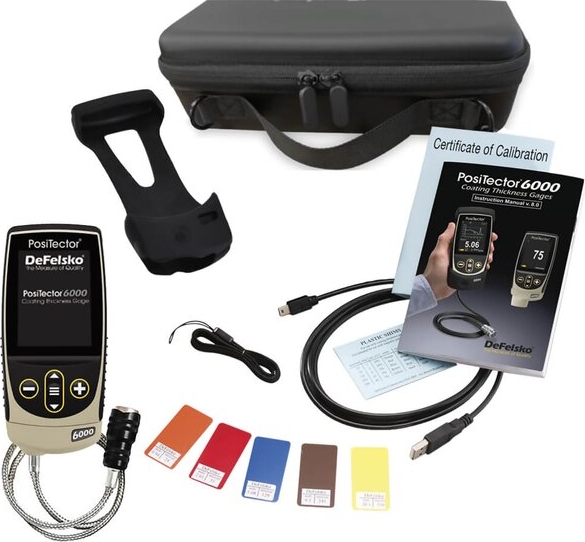

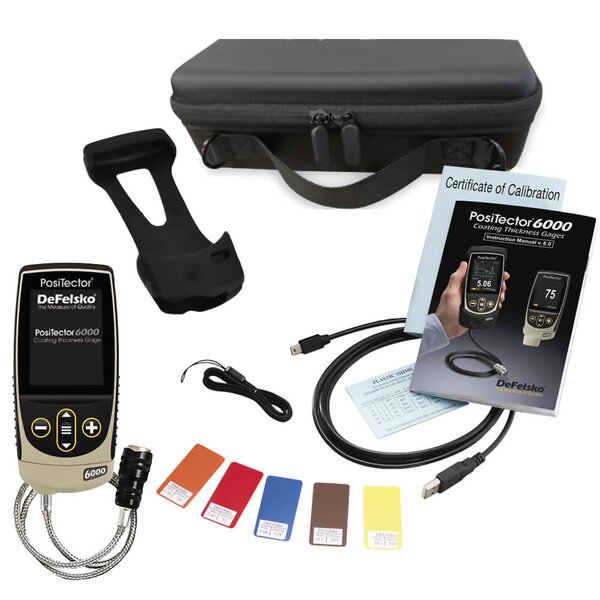

Kit Contents

The DeFelsko PosiTector 6000 FHXS1 Standard Coating Thickness Gage Kit includes everything needed for testing:

PosiTector Standard Gage Body BDYSTD-G PosiTector 6000 Probe PRBFHXS-D Precision plastic shims Protective rubber holster with belt clip Wrist strap and protective lens shield 3 AAA alkaline batteries PosiSoft Software and USB cable Long Form Certificate of Calibration traceable to NIST or PTB Convenient carrying case and instructions Two (2) year warranty

Features

Simple

• Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
• Ready to measure - no adjustment required for most applications
• NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• NEW On-gage help explains menu items at the touch of a button
• Flashing display - ideal in a noisy environment
• RESET feature instantly restores factory settings

Durable

• NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
• NEW Ergonomic design with durable rubberized grip
• Wear-resistant probe tip
• Shock-absorbing, protective rubber holster for added impact resistance
• Two year warranty on gage body AND probe

Accurate

• Certificate of Calibration showing traceability to NIST or PTB included
• Built-in temperature compensation ensures measurement accuracy
• Hi-RES mode increases displayed resolution for precision applications
• Conforms to national and international standards including ISO and ASTM

Versatile

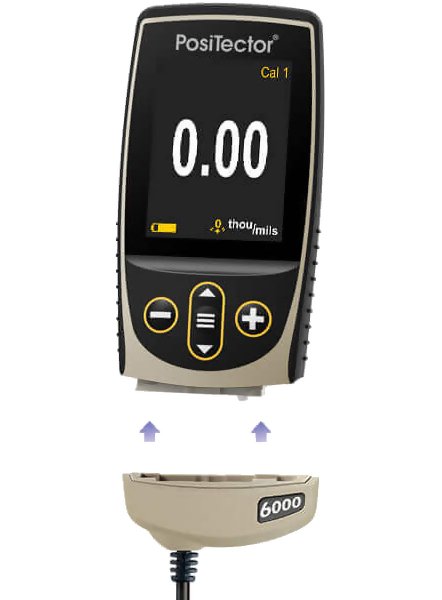

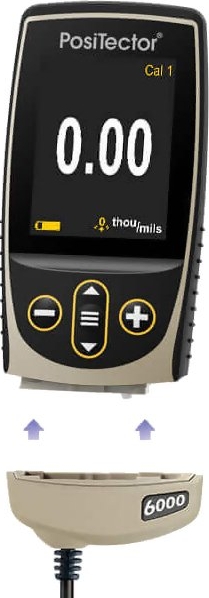

• PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or hardness tester
• Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors

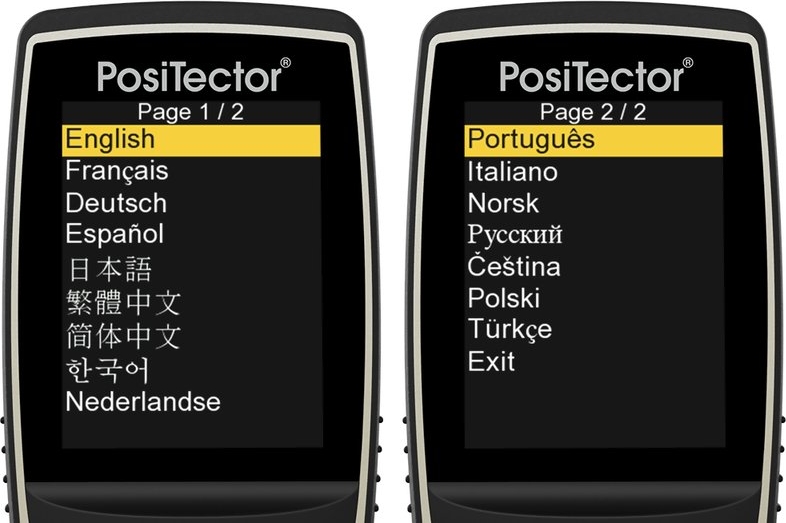

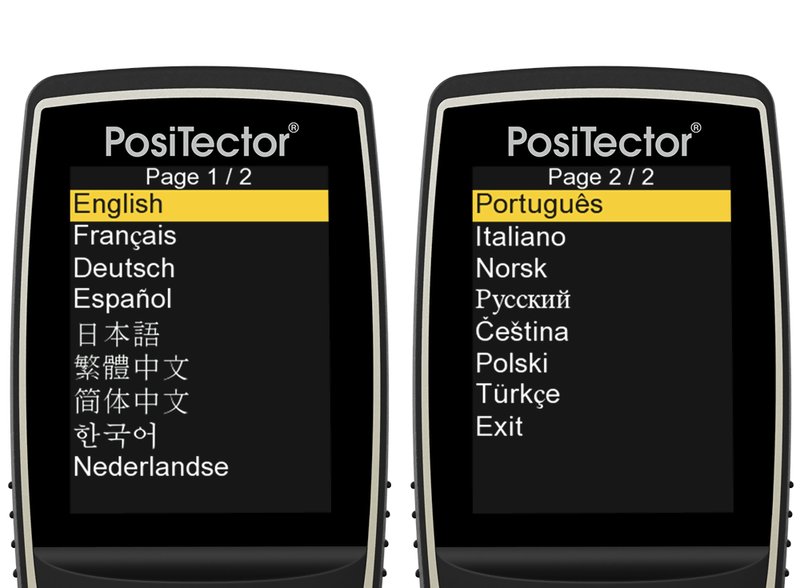

• Selectable display languages
• NEW Auto rotating display with Flip Lock
• Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
• Mils/Microns/mm switchable

Powerful

• Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
• NEW Screen Capture - save 100 screen images for record keeping and review
• HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
• NEW Instant-on feature quickly powers up the gage if recently powered down
• NEW Up to 30% longer battery life

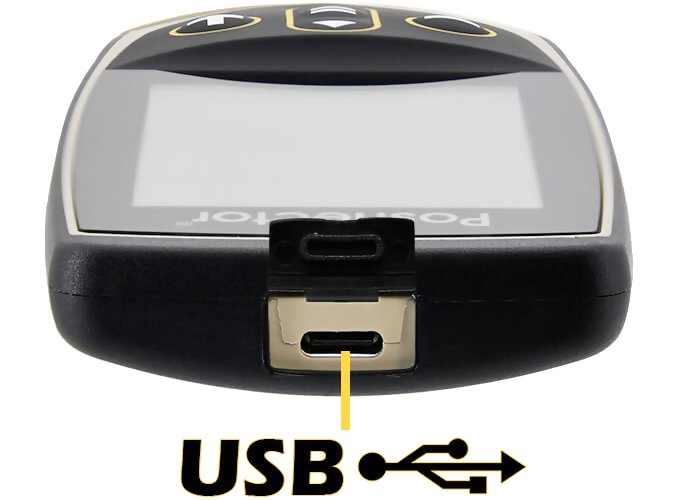

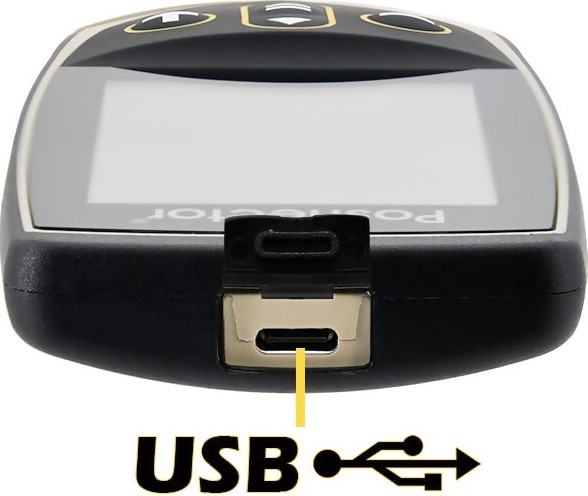

• USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
• Every stored measurement is date and time stamped
• Software Updates via web keep your gage current
• Software Solutions for viewing, analyzing & reporting data

Standard Model Features

• Includes ALL features as shown on left plus
• Storage of 1,000 readings per probe - stored readings can be viewed or downloaded

Specifications

Measuring principle	magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display	High contrast, reversible color LCD
Data Output	USB - "1" & "3" Models Bluetooth - "3" Models
Power	3 AAA batteries, Included
Dimensions	5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight	5.8 oz. (165 g) without batteries
Protection Class	Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty	2 Years
Calibration Certificate	Certificate of Calibration showing traceability to NIST included

Probe Specifications

	Range:	0 - 400 mils
		0 - 10,000 μ
	Accuracy:	± (0.1 mils + 3%)
		± (2 μ + 3%)
