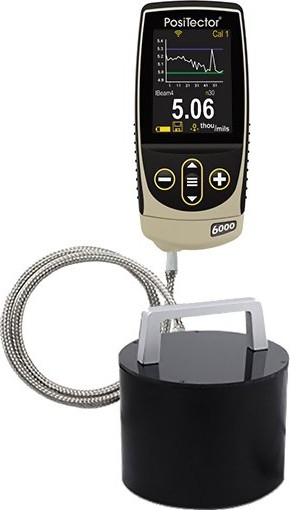

DeFelsko FNGS3-G 6000 FNGS3 Advanced Coating Thickness Gauge with separate probe for extra thick paint and coatings up to 2.5 inches (63.5 mm)

---

Model: FNGS3-G with Advanced Body

---

Range: 0 - 2.5 inches (0 - 63.5 mm)

---

Resolution: 0.01 inches (0.02 mm)

---

The DeFelsko FNGS3-G PosiTector 6000 FNGS3 Coating Thickness Gage is a precise, rugged tester designed to measure coating thickness on ferrous and non-ferrous metals accurately and quickly using magnetic induction and eddy current principles.

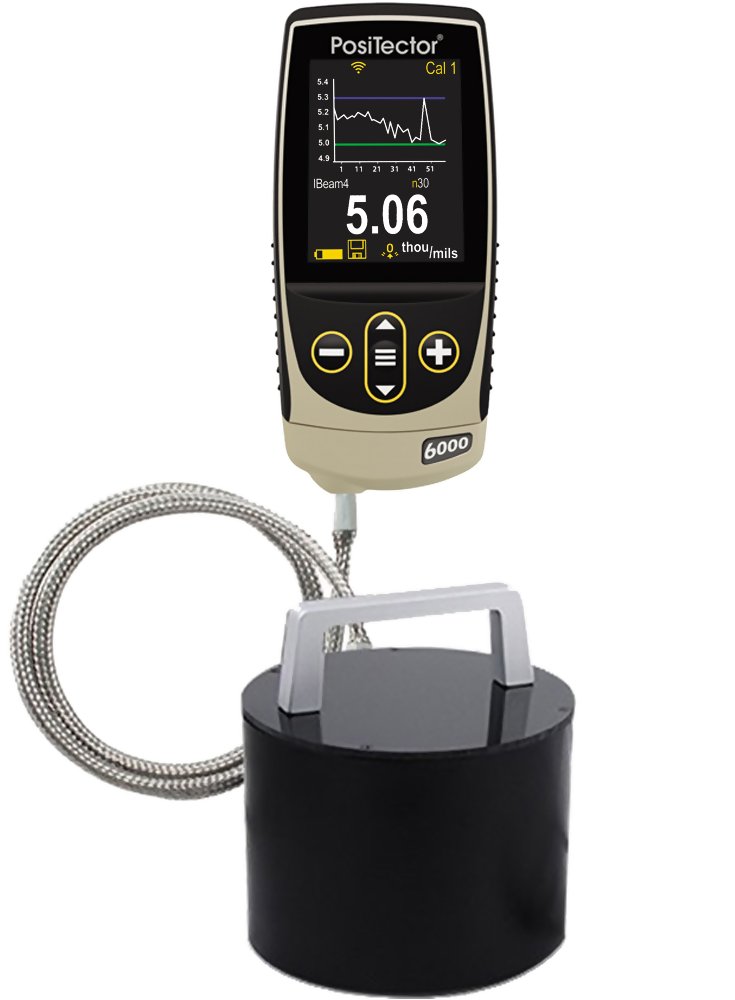

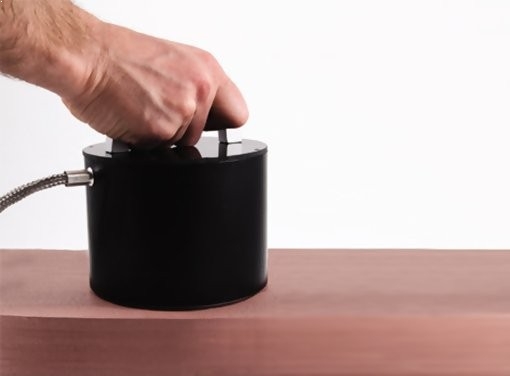

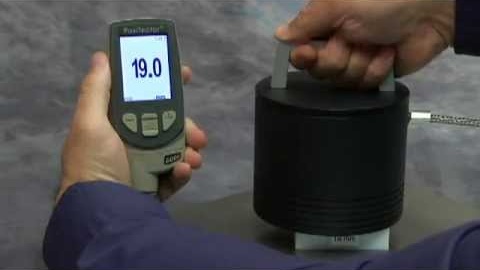

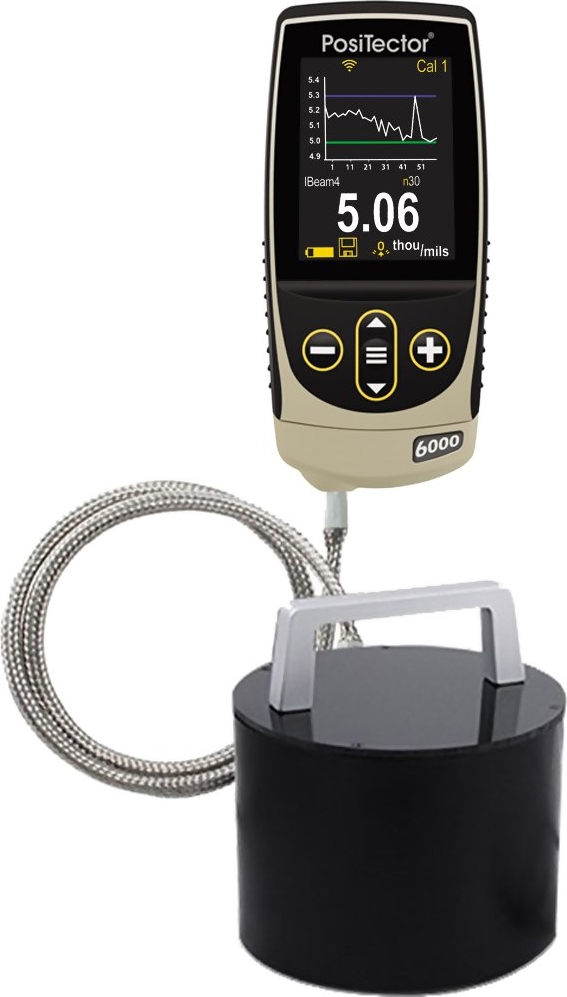

The PosiTector FNGS probe measures very thick coatings on all metals and it is also ideal for measuring ship hull coatings and thick intumescent paints.

The DeFelsko PosiTector 6000 Adv FNGS3-G Coating Thickness Gauge has a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 250,000 in up to 1000 groups memory reading storage capacity, USB data output, Scan Mode, Real-Time Graphing Bluetooth output and more.

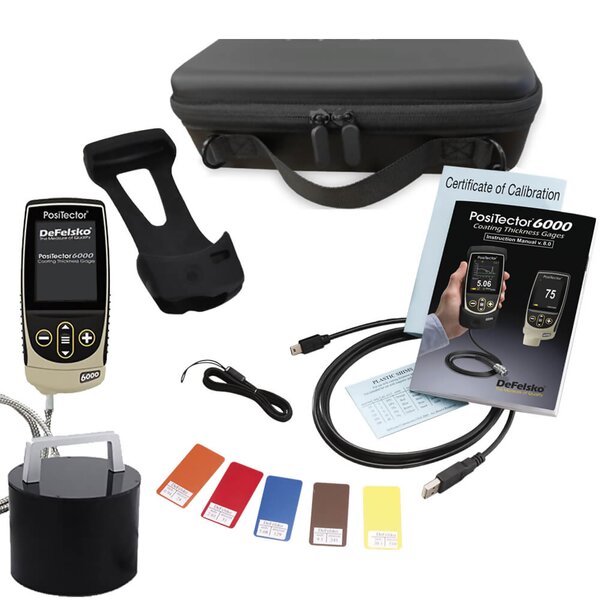

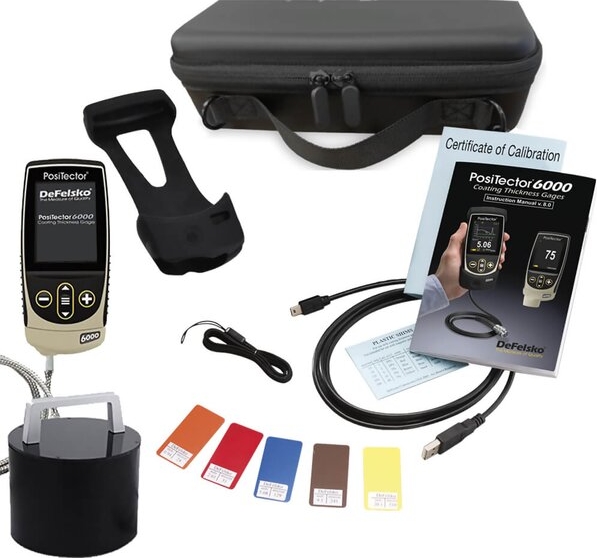

Kit Contents

The DeFelsko PosiTector 6000 FNGS3 Advanced Coating Thickness Gage Kit includes everything needed for testing:

PosiTector Advanced Gage Body BDYADV-G PosiTector 6000 Probe FNGS-D Precision plastic shims Protective rubber holster with belt clip Wrist strap and protective lens shield 3 AAA alkaline batteries PosiSoft Software and USB cable Long Form Certificate of Calibration traceable to NIST or PTB Convenient carrying case and instructions Two (2) year warranty

Features

Simple

• Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
• Ready to measure - no adjustment required for most applications
• NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• NEW On-gage help explains menu items at the touch of a button
• Flashing display - ideal in a noisy environment
• RESET feature instantly restores factory settings

Durable

• NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
• NEW Ergonomic design with durable rubberized grip
• Wear-resistant probe tip
• Shock-absorbing, protective rubber holster for added impact resistance
• Two year warranty on gage body AND probe

Accurate

• Certificate of Calibration showing traceability to NIST or PTB included
• Built-in temperature compensation ensures measurement accuracy
• Hi-RES mode increases displayed resolution for precision applications
• Conforms to national and international standards including ISO and ASTM

Versatile

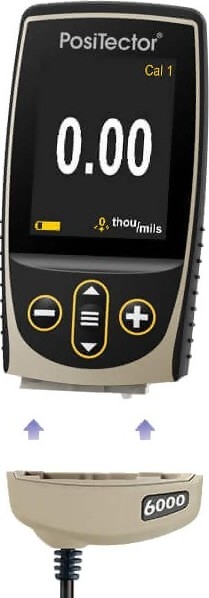

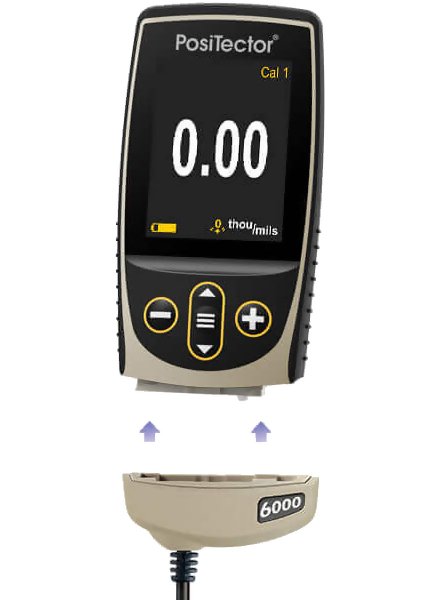

• PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or hardness tester
• Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors

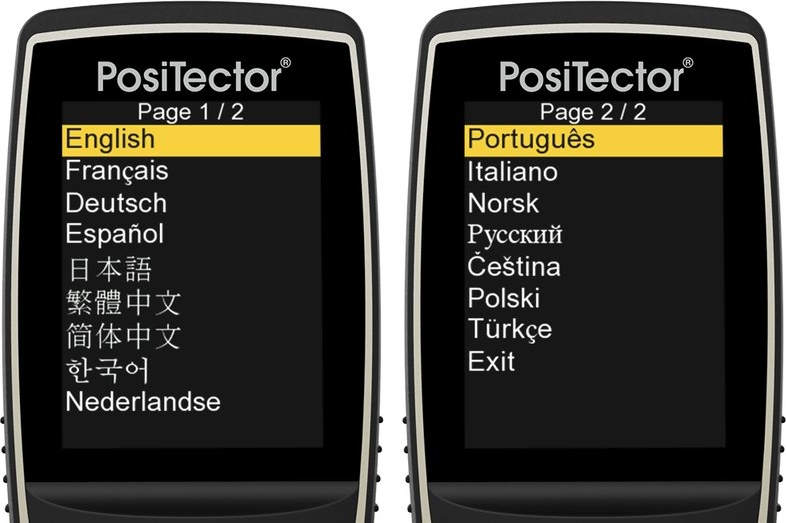

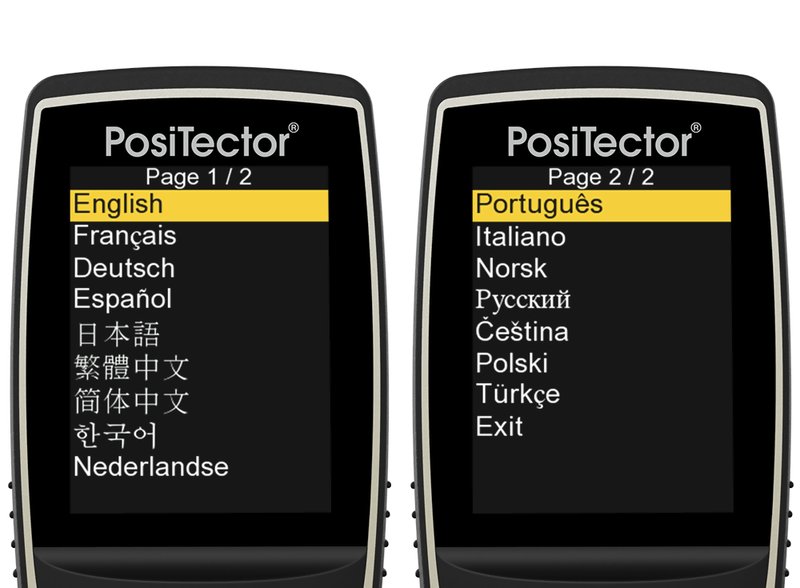

• Selectable display languages
• NEW Auto rotating display with Flip Lock
• Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
• Mils/Microns/mm switchable

Powerful

• Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
• NEW Screen Capture - save 100 screen images for record keeping and review
• HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
• NEW Instant-on feature quickly powers up the gage if recently powered down
• NEW Up to 30% longer battery life

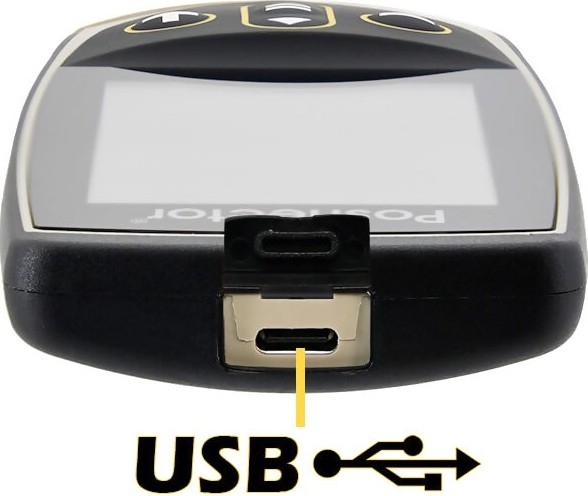

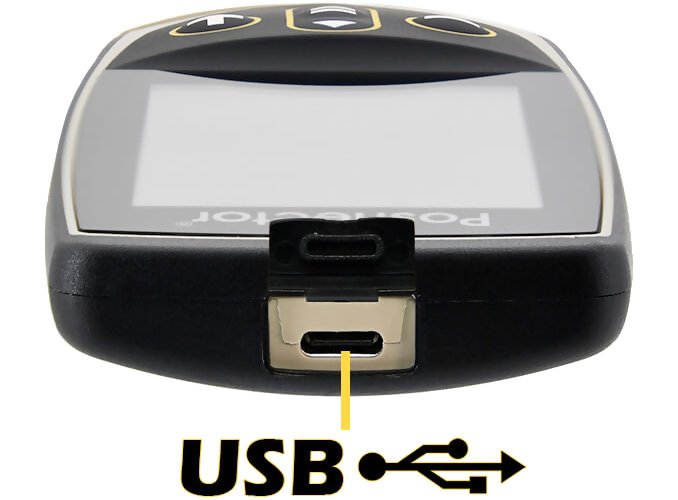

• USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
• Every stored measurement is date and time stamped
• Software Updates via web keep your gage current
• Software Solutions for viewing, analyzing & reporting data

Standard Model Features

• NEW Storage of 250,000 readings in up to 1,000 batches and sub-batches
• Live graphing of measurement data

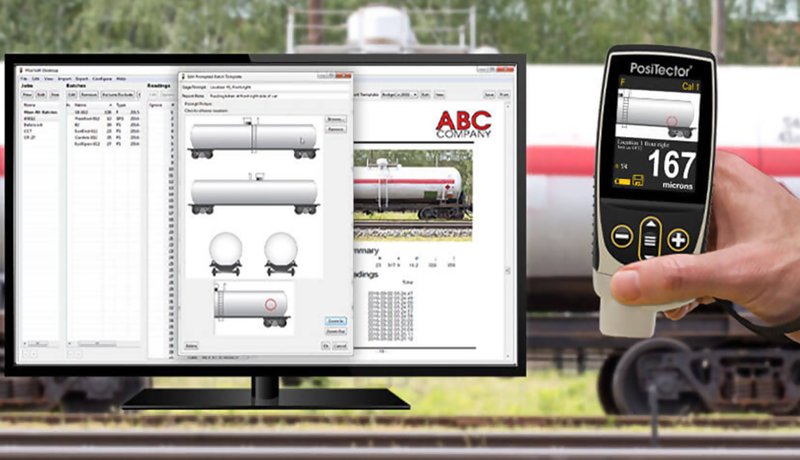

• NEW Prompted Batch Mode-create pre-defined batches with on-screen text and image prompts for each reading
• 3 Scan Modes - increase measurement speed to 180+ readings per minute
  • Normal - take continuous readings without lifting the probe
  • Statistics - take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
  • Limited Count Average - take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
• NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
• Multiple stored calibration adjustments for measuring on a variety of substrate conditions
• NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
• WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
• Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
• Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols

Specifications

Measuring principle	magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display	High contrast, reversible color LCD
Data Output	USB - "1" & "3" Models Bluetooth - "3" Models
Power	3 AAA batteries, Included
Dimensions	5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight	5.8 oz. (165 g) without batteries
Protection Class	Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty	2 Years
Calibration Certificate	Certificate of Calibration showing traceability to NIST included

Probe Specifications

	Range:	0 - 2.5 inches
		0 - 63.5 mm
	Accuracy:	± (0.01 in. + 3%)
		± (0.2 mm + 3%)
	Minimum Surface Area:	10 x 10 in. (254 x 254 mm)
	Minimum Substrate Thickness:	0.2 in. (5 mm)
	Weight:	0.8 lb. (0.4 kg)
