Name: DeFelsko FNS1-G PosiTector 6000 FNS1 Coating Thickness Gauge with Standard Body, All Metals, 0-60 mils
Rating: 5.0 (15 reviews)

DeFelsko FNS1 PosiTector 6000 FNS1 Coating Thickness Gage Standard Body with Cabled Ferrous and Non-Ferrous Probe for general purpose paint and coating applications.

Model: FNS1 with Standard Body

Storage: 1,000 readings per probe - stored readings can be viewed or downloaded

Substrate: All Metals

Range: 0 - 60 mils (0 - 1500 µm)

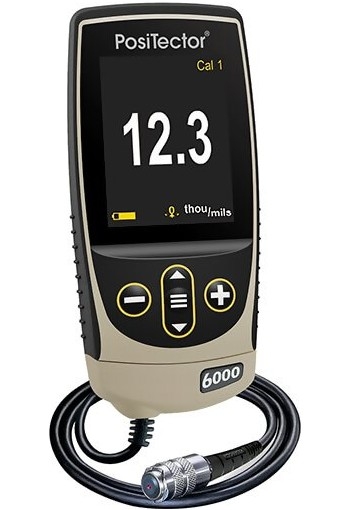

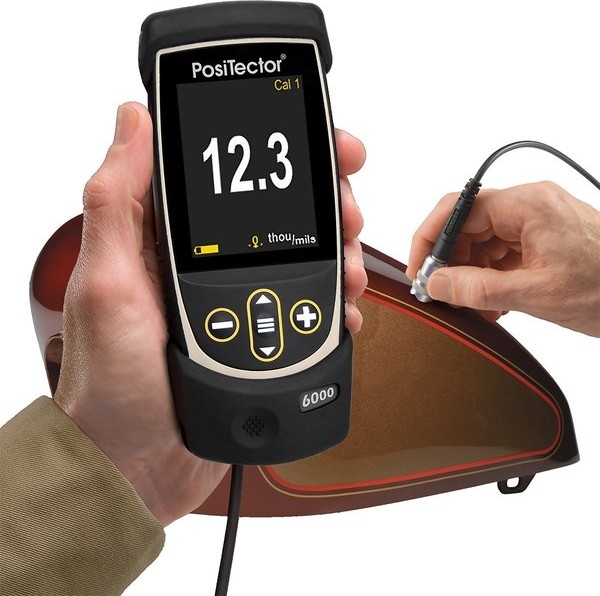

The DeFelsko FNS1 PosiTector 6000 FNS1 Coating Thickness Gage is a precise, rugged tester designed to measure coating thickness on ferrous and non-ferrous metals accurately and quickly using magnetic induction and eddy current principles.

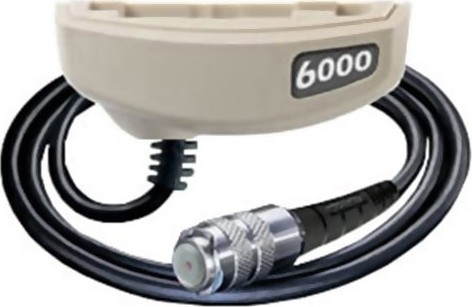

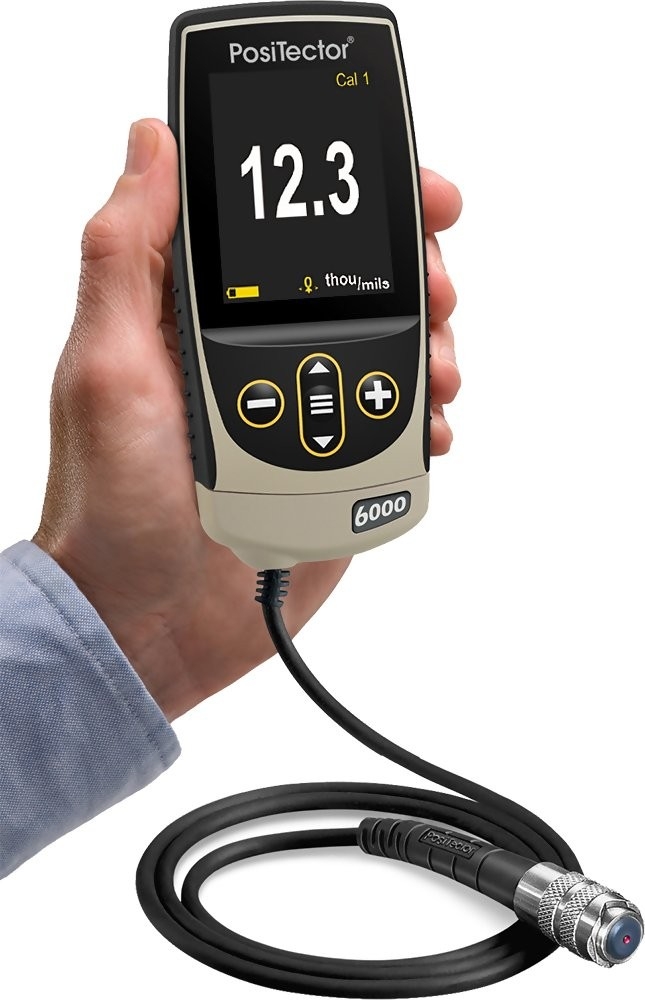

The DeFelsko PosiTector 6000 FNS1 features a constant-pressure, stainless steel cabled probe hermetically sealed to be totally waterproof - ideal for underwater use.

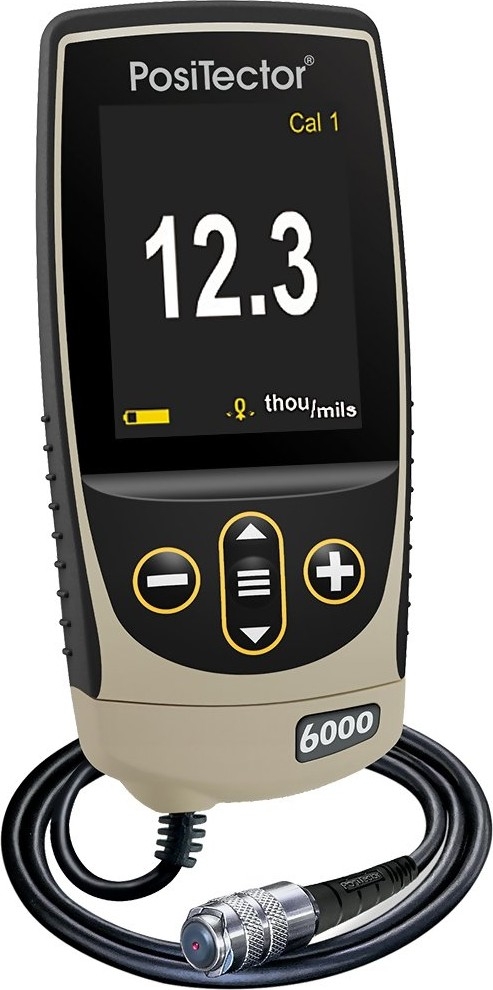

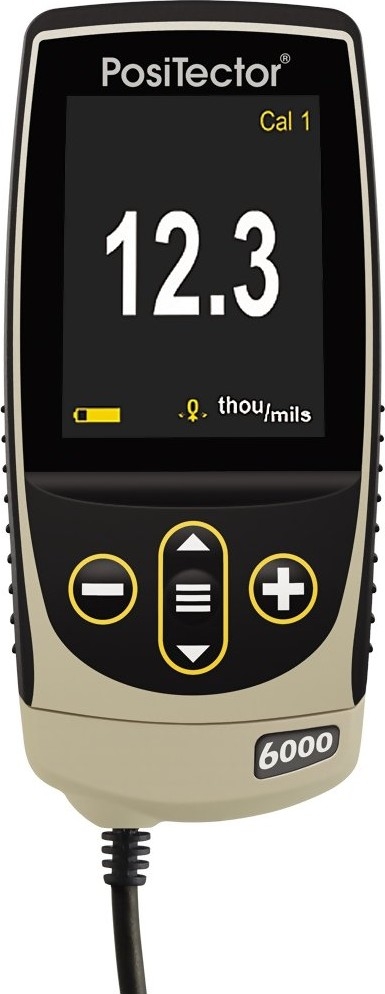

The DeFelsko PosiTector 6000 FNS1 has a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 1,000 in one group memory reading storage capacity and USB data output.

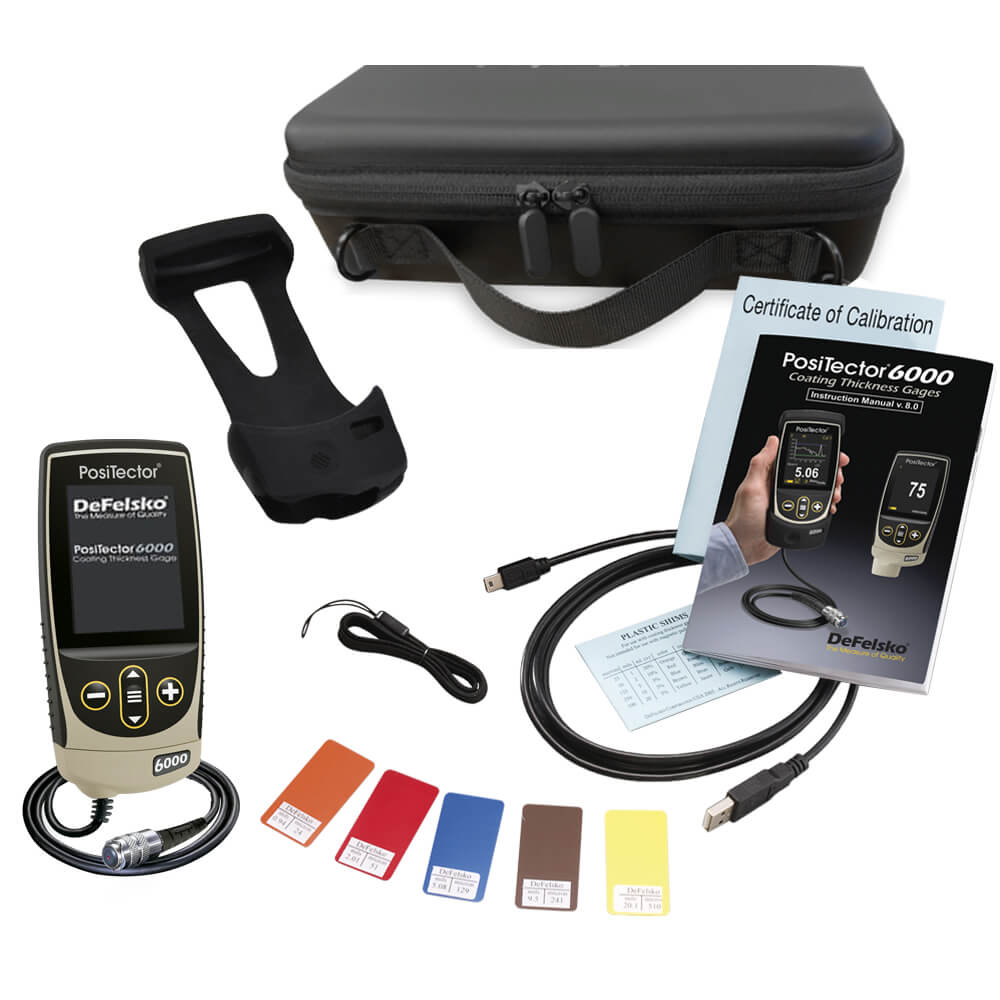

Kit Contents

PosiTector Standard Gage Body BDYSTD
PosiTector 6000 Probe PRBFNS
Precision Plastic Shim(s)
Protective Rubber Holster
Wrist Strap and Protective Lens Shield
3 AAA Alkaline Batteries
PosiSoft Software and USB Cable
Long Form Certificate of Calibration Traceable to NIST or PTB
Protective Carrying Case and Instructions
Two (2) Year Warranty

Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
Ready to measure - no adjustment required for most applications
NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
NEW On-gage help explains menu items at the touch of a button
Flashing display - ideal in a noisy environment
RESET feature instantly restores factory settings

Durable

NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
NEW Ergonomic design with durable rubberized grip
Wear-resistant probe tip
Shock-absorbing, protective rubber holster for added impact resistance
Two year warranty on gage body AND probe

Accurate

Certificate of Calibration showing traceability to NIST or PTB included
Built-in temperature compensation ensures measurement accuracy
Hi-RES mode increases displayed resolution for precision applications
Conforms to national and international standards including ISO and ASTM

Versatile

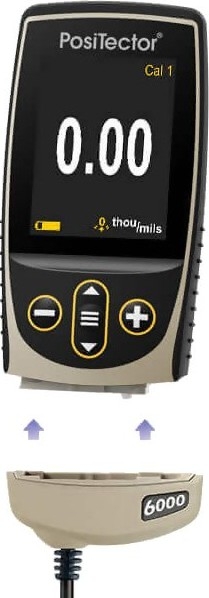

PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or hardness tester
Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors

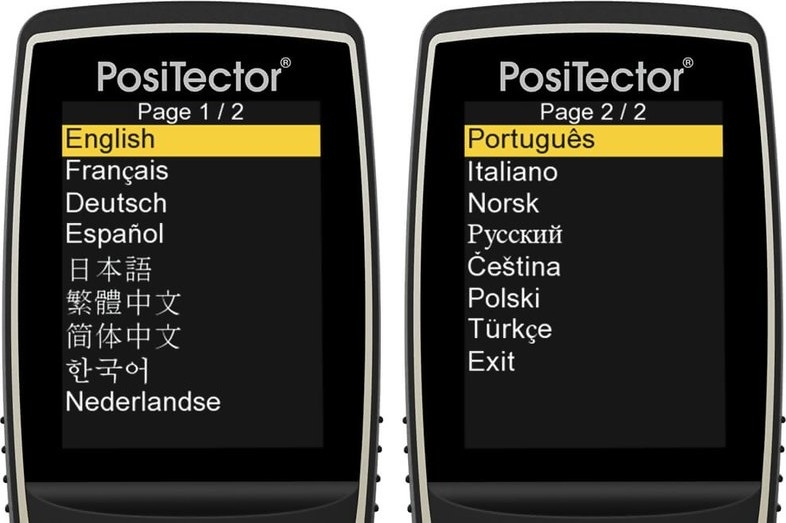

Selectable display languages
NEW Auto rotating display with Flip Lock
Extended cables available (up to 75 m/250 ft) for underwater or remote measuring

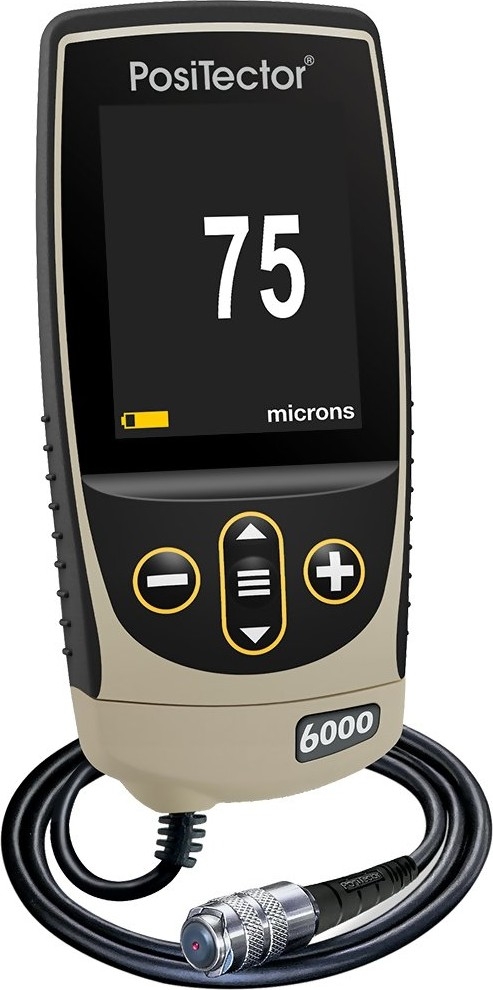

Mils/Microns/mm switchable

Powerful

Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
NEW Screen Capture - save 100 screen images for record keeping and review
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
NEW Instant-on feature quickly powers up the gage if recently powered down
NEW Up to 30% longer battery life

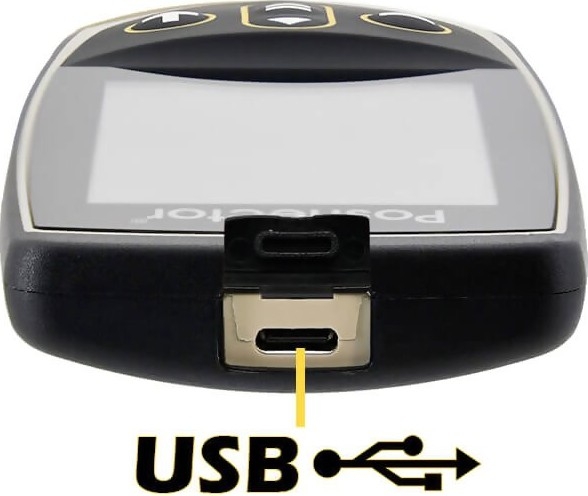

USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
Every stored measurement is date and time stamped
Software Updates via web keep your gage current
Software Solutions for viewing, analyzing & reporting data

Standard Model Features

Includes ALL features as shown above plus:
Storage of 1,000 readings per probe - stored readings can be viewed or downloaded

Specifications

Measuring principle	magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display	High contrast, reversible color LCD
Data Output	USB - "1" & "3" Models Bluetooth - "3" Models
Power	3 AAA batteries, Included
Dimensions	5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight	5.8 oz. (165 g) without batteries
Protection Class	Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty	2 Years
Calibration Certificate	Certificate of Calibration showing traceability to NIST included
