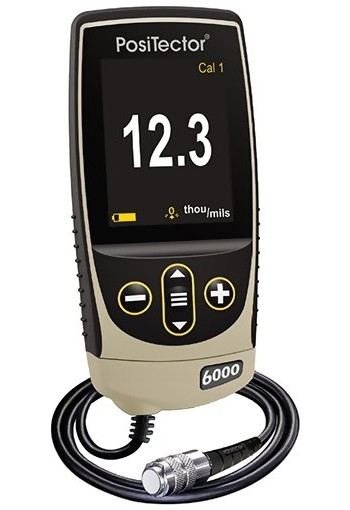

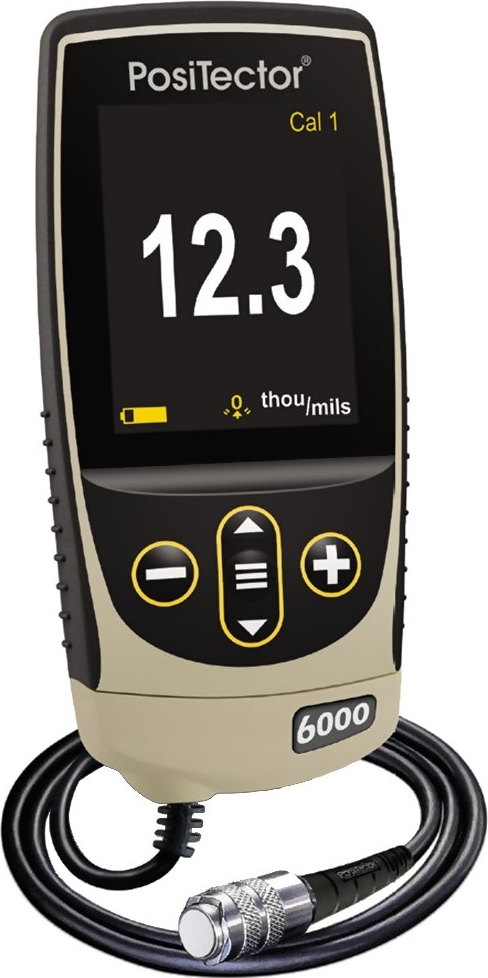

DeFelsko FXS1 PosiTector 6000 FXS1 Standard Coating Thickness Gage with FXS Xtreme cabled probe for rough steel surfaces
Model: FXS1 with Standard Body
Range: 0 – 2000 µm (0 - 80 mil)
Ability to measure on hot surfaces up to 250 deg C (500 deg F)
The DeFelsko FXS1 PosiTector 6000 FXS1 Coating Thickness Gauge is a precise, rugged tester designed to measure coating thickness on ferrous metals accurately and quickly using magnetic induction principles.

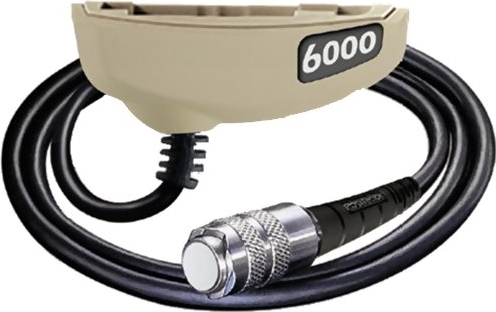

The DeFelsko PosiTector 6000 FXS1 includes a FXS Xtreme™ probe for rough steel substrates. The FXS Xtreme probe is designed for hot rugged applications. The FXSprobe features an improved zirconia-toughened alumina wear face and a new braided steel cable making it ideal for harsh conditions and continuous measurement on hot surfaces up to 250˚ C (500˚ F). Enhanced measuring speed of 100+ readings per minute makes it ideal for measuring large, rough surfaces quickly.
The DeFelsko PosiTector 6000 FXS1 Standard Body features a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 1,000 in one group memory reading storage capacity and USB data output.

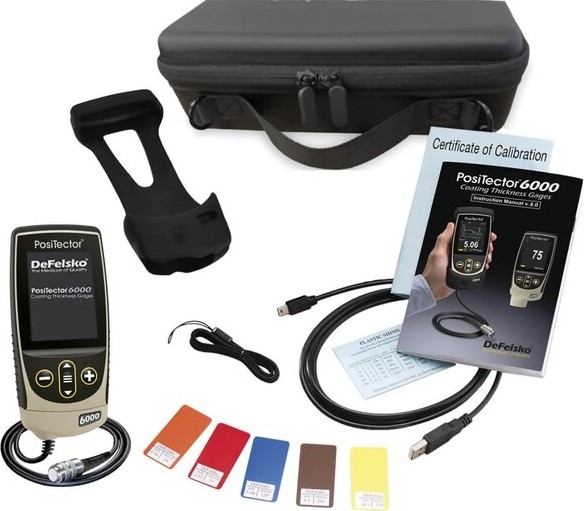

Kit Contents
- PosiTector Standard Gage Body BDYSTD
- PosiTector 6000 Probe PRBFXS
- Precision Plastic Shim(s)
- Protective Rubber Holster
- Wrist Strap and Protective Lens Shield
- 3 AAA Alkaline Batteries
- PosiSoft Software and USB Cable
- Long Form Certificate of Calibration Traceable to NIST or PTB
- Protective Carrying Case and Instructions
- Two (2) Year Warranty
Features
Simple
- Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
- Ready to measure - no adjustment required for most applications
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW On-gage help explains menu items at the touch of a button
- Flashing display - ideal in a noisy environment
- RESET feature instantly restores factory settings
Durable
- NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- Wear-resistant probe tip
- Shock-absorbing, protective rubber holster for added impact resistance
- Two year warranty on gage body AND probe
Accurate
- Certificate of Calibration showing traceability to NIST or PTB included
- Built-in temperature compensation ensures measurement accuracy
- Hi-RES mode increases displayed resolution for precision applications
- Conforms to national and international standards including ISO and ASTM
Versatile

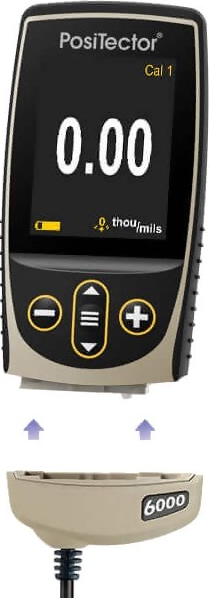

- PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or hardness tester
- Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors

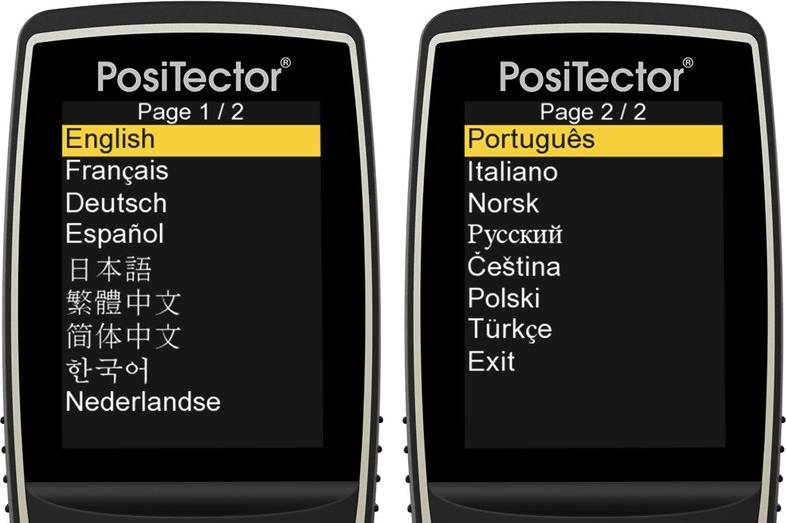

- Selectable display languages
- NEW Auto rotating display with Flip Lock
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
- Mils/Microns/mm switchable
Powerful
- Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
- NEW Screen Capture - save 100 screen images for record keeping and review
- HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
- NEW Instant-on feature quickly powers up the gage if recently powered down
- NEW Up to 30% longer battery life

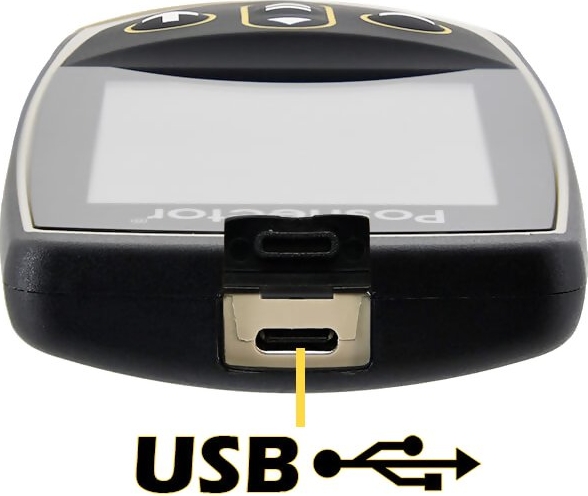

- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- Every stored measurement is date and time stamped
- Software Updates via web keep your gage current
- Software Solutions for viewing, analyzing & reporting data
Standard Model Features
- Includes ALL features as shown above plus:
- Storage of 1,000 readings per probe - stored readings can be viewed or downloaded
Specifications
| Measuring principle | magnetic induction principle (Ferrous)
eddy-current principle (Non-Ferrous) |
| Display | High contrast, reversible color LCD |
| Data Output | USB - "1" & "3" Models
Bluetooth - "3" Models |
| Power | 3 AAA batteries, Included |
| Dimensions | 5.75" x 2.5" x 1.2" (146 x 64 x 31 mm) |
| Weight | 5.8 oz. (165 g) without batteries |
| Protection Class | Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant |
| Warranty | 2 Years |
| Calibration Certificate | Certificate of Calibration showing traceability to NIST included |
Probe Specifications
| Range: | 0 - 80 mils |
| 0 - 2000 μ |
| *Accuracy: | ± (0.05 mils + 1%) 0 - 2 mils |
| ± (0.1 mils + 1%) > 2 mils |
| ± (1 μ + 1%) 0 - 50 μ |
| ± (2 μ + 1%) > 50 μ |
PosiSoft Suite of Software
Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More
FAQ's - Frequently Asked Questions
Click to View DeFelsko PosiTector 6000Frequently Asked Questions
Related Products
DeFelsko CertifiedCoated Metal Plates
- Used to verify the accuracy and operation of any Type 1 (mechanical) and Type 2 (electronic) magnetic, eddy-current or ultrasonic coating thickness gage
