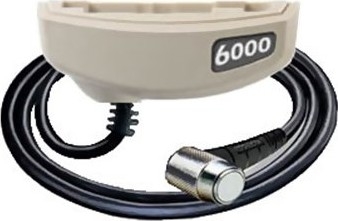

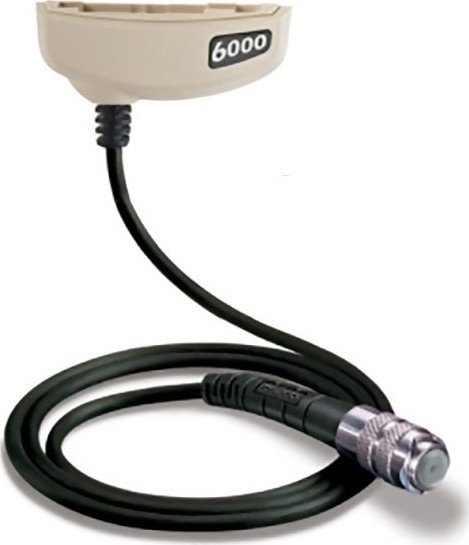

The PosiTector 6000 consists of a body and a probe. A wide selection of interchangeable probes are available. All bodies accept all probes.

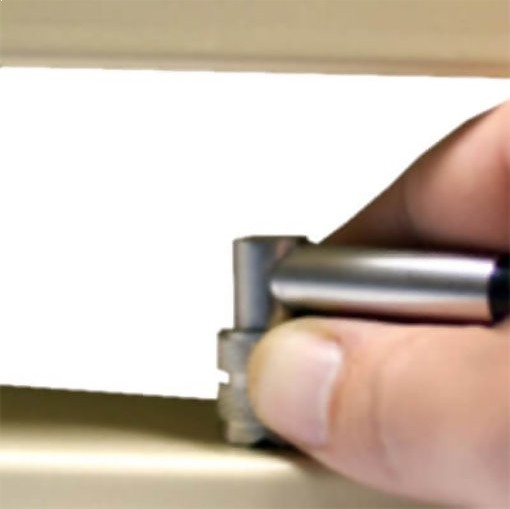

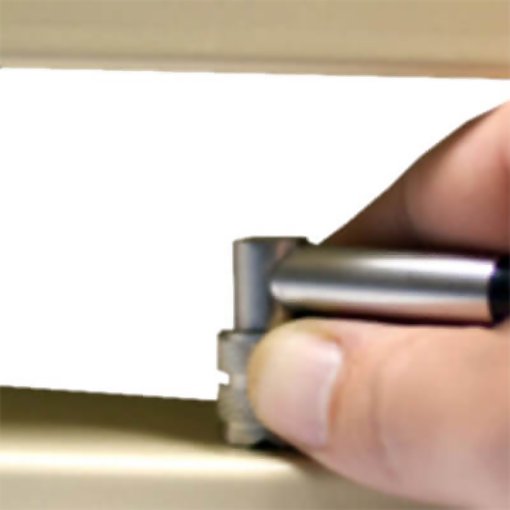

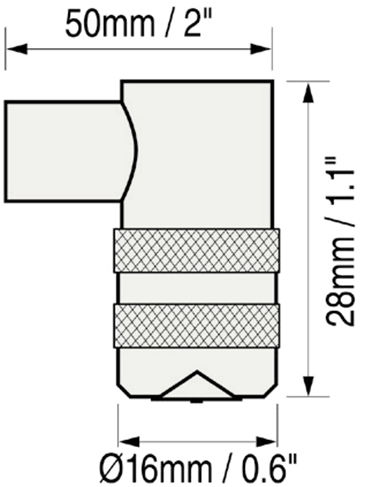

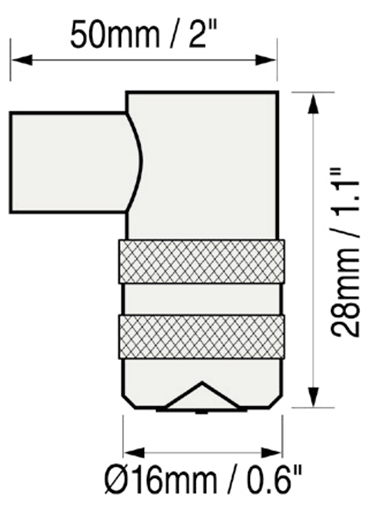

Right angle probe for measuring within areas of low headroom

These constant-pressure, stainless steel probes are hermetically sealed to be totally waterproof - ideal for underwater use.

Specifications

	Probe Model	FRS, NRS, FNRS
	Range:	0 - 60 mils
		0 - 1500 μ
	*Accuracy:	± (0.05 mils + 1%) 0 - 2 mils
		± (0.1 mils + 1%) > 2 mils
		± (1 μ + 1%) 0 - 50 μ
		± (2 μ + 1%) > 50 μ

	Probe Model	FTRS
	Range:	0 - 250 mils
		0 - 6 mm
		0 - 6000 μ
	*Accuracy:	± (0.5 mils + 1%) 0 - 100 mils
		± (0.5 mil + 3%) > 100 mils
		± (0.01 mm + 1%) 0 - 2.5 mm
		± (0.01 mm + 3%) > 2.5 mm

*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
