Product Description

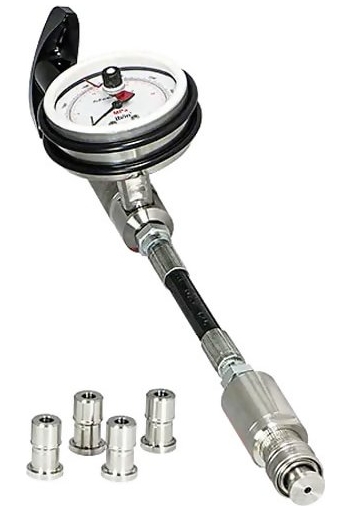

X1003. Adhesion Tester 0-3500 PSI (0-25MPa)
The Adhesion Tester is compliant to ISO 4624 and ISO 16276-1.
Gauge accuracy ±1%FSD.

Adhesion Tester will measure the adhesion bond strength of applied coatings.

Adhesion Tester is supplied in an industrial Carrying Case with 5 Flat Dollies, Turbo Fuse Adhesive, Heated Dolly Remover, Dolly Cleaning Tool, Dolly Plug. The Adhesion Tester Calibration Certificate with traceability to UKAS is an optional extra.

The Adhesion Tester is compliant to ISO 4624 and ISO 16276-1.

Also known as Pull-Off Adhesion Tester, Hydraulic Adhesion Tester and HATE Adhesion Tester.


line
Features
line

The adhesion is measured by the tensile pull on a Dolly glued to the coating surface. The force is applied through the centre of the Dolly by a hydraulically loaded pin. This ensures an exactly central point-loading of the force.

The maximum value achieved at pull-off is recorded by a reset needle that is easily read on the large scale of the pressure gauge.

The Right Angle version of the Adhesion Tester enables the user to test the adhesion of coatings inside pipes with a minimum diameter of 150mm (6”).

Gauge accuracy ±1%FSD.


line
Downloads
line

Paint Test Equipment HATE Hydraulic Pull Off Adhesion Tester - Instrutions Manual

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
Models Price
$2,048.00
$2,183.00
Recommended Accessories PRICE
$141.00
$66.00
