DeFelsko DFTC PosiTest DFT Combo Coating Thickness Gage for ferrous and non-ferrous metal substrates
Dry Film Thickness Gauge
Measures both non-magnetic coatings on steel and non-conductive coatings on aluminum, brass, etc.
The DeFelsko DFT is the ideal instrument for Powder Coaters, Paint Applicators, Coating Inspectors, Automotive Detailers, Refinishers and Inspectors
Automatically recognizes the substrate and takes a measurement
Measuring Range: 0-40 mils (0-1000 um)
Zero or 1 Point Calibration Adjustment for complex applications
Strong, wear resistant, ruby-tipped probe
The DeFelsko DFTC PosiTest DFT Combo Coating Thickness Gage, Dry Film Thickness Gauge, measures both non-magnetic coatings on steel AND non-conductive coatings on aluminum, brass, etc. It is the economical choice that retains the uncompromising quality of DeFelsko coating thickness and inspection instruments. Accurate and economical the DFT is the ideal instrument for Powder Coaters, Paint Applicators, Coating Inspectors, Automotive Detailers, Refinishers and Inspectors... Easy-to-read oversized LCD display is reversible for reading when inverted.

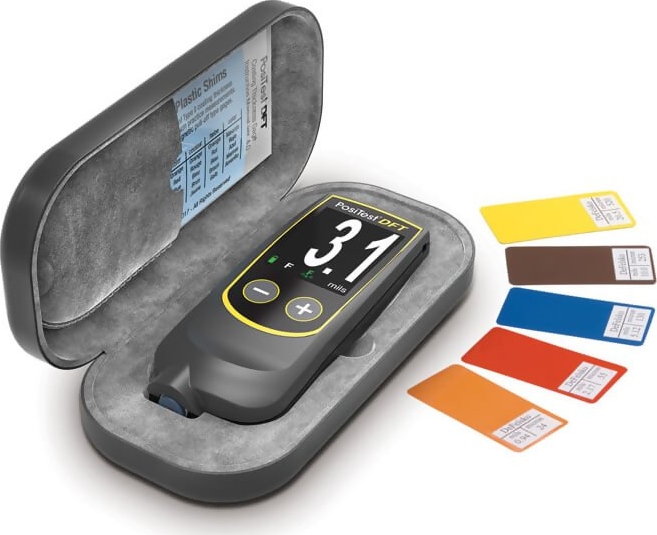

Kit Contents
The DeFelsko PosiTest DFT C Combo Coating Thickness Gage Kit includes everything needed for testing:
- PosiTest DFTC Combo Coating Thickness Gage
- Wrist strap, precision plastic shims
- Hard shell storage case, 2 AAA alkaline
- Batteries, instructions, Long Form
- Certificate of Calibration traceable to PTB
- Two year warranty
Features
Simple
- Fast, repeatable measurements - 60+ readings per minute
- Ready to measure - No adjustment required for most applications
Durable

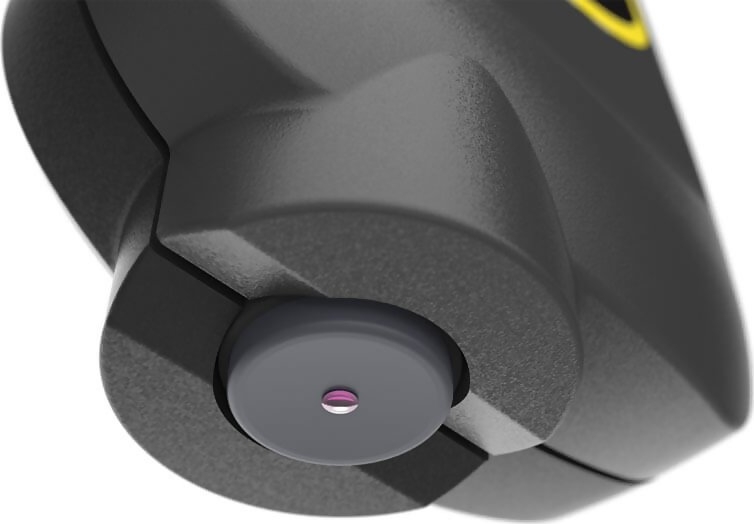

- Strong, wear-resistant, ruby-tipped probe
- Two year warranty
Accurate
- Zero or 1 Point Calibration Adjustment for complex applications
- Onscreen averaging for up to 99 readings
Versatile
- V-groove in probe for positioning on curved parts
- High contrast color display
- Adjustable display brightness for optimal visibility in all environments
- Auto rotating display with rotation lock

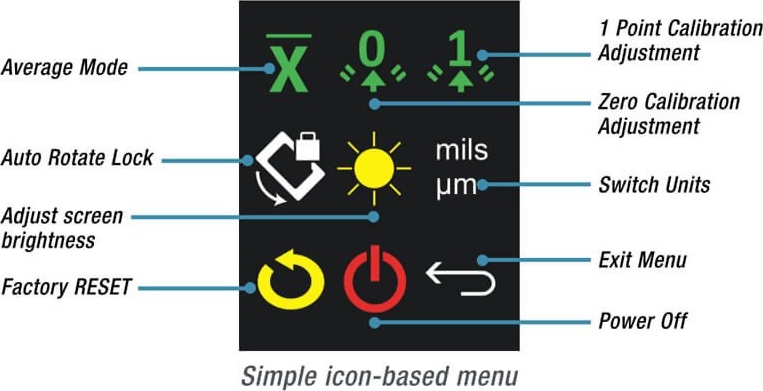

- Simple icon based menu
- Mils/microns switchable
- Built-in wrist strap for added convenience and safety
- Mils/Microns switchable
Ideal For:
- Powder Coaters
- Paint Applicators and Contractors
- Coating Inspectors
- Automotive Detailers, Refinishers and Inspectors
Specifications
| Measurement Range | 0 – 40 mils | 0 – 1000 μm |
| Accuracy | ± (0.1 mils + 3%) | ± (2 μm + 3%) |
| Size | 108 x 43 x 20 mm (4.25 " x 1.7" x 0.8") |
| Weight | 54 g (1.9 oz.) without batteries |
FAQ's - Frequently Asked Questions
Click to View DeFelsko PosiTest DFT Frequently Asked Questions
