CSW Narrow Web Tension Sensor

See More Tension Sensors, Online

CSW Narrow Web Tension Sensor

See More Tension Sensors, Online
Call for price
  • FREE Ground Shipping on Orders Over $150
warrenty

Product Description

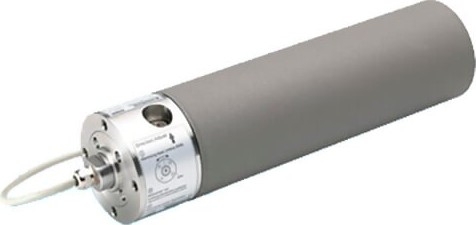

Narrow Web Tension Sensor
Ranges from 0 - 5 N to 0 - 5000 N

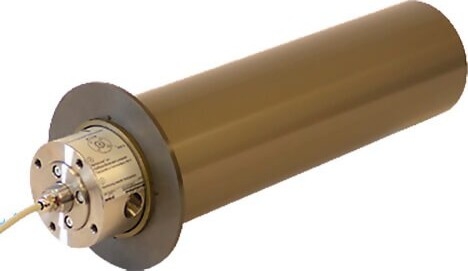

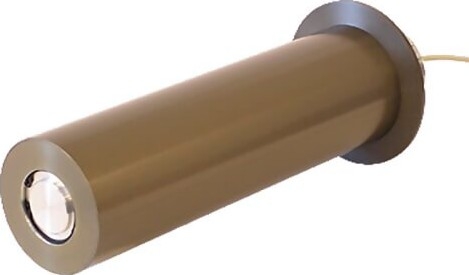

Single-side flange mounting

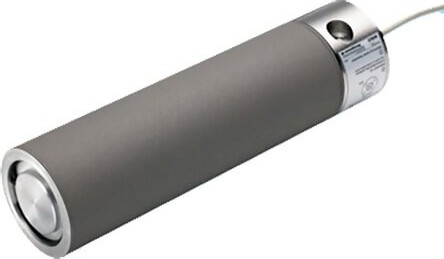

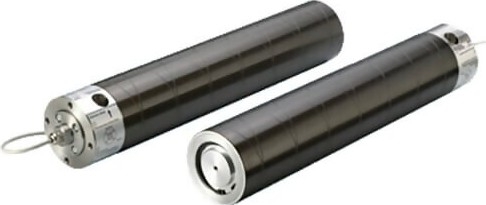

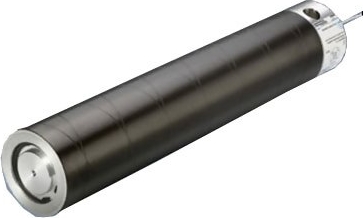

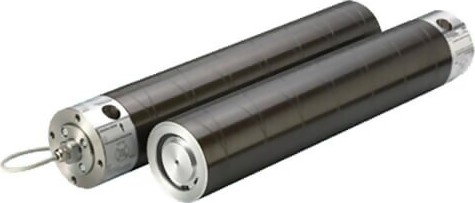

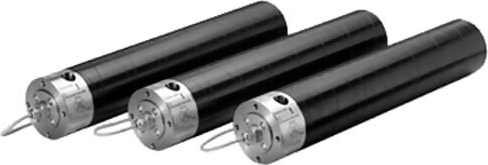

The Cantilever sensor roll with integrated force measurement can be installed just like an unilateral installed standard web guide roll without major mechanical modifications.

The Cantilever sensor roll provides two functions at once:

  • Measurement of tension in the web
  • Guiding and reversing the product web

The Cantilever sensor roll is checked and assembled ready for installation. For the customer the complicated installation of electromechanical and mechanical components is reduced to a minimum


line
Features
line

  • easy and one-sided mounting with tapped hole

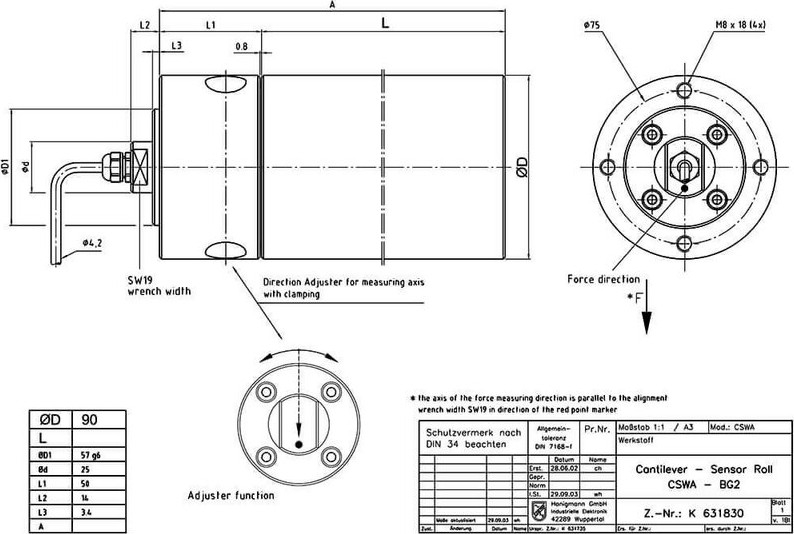

  • integrated Direction Adjuster offers the possibility for precise and stepless direction adjustment of measurement axis, while the sensor roll is completely installed in the machine
  • precise, the measuring accuracy is independent of the force introduction point, i.e. the sensor is not affected by lever arm action
  • easy-turning roller bearings with lifetime lubrication
  • floating and fixed bearing construction with contactless labyrinth seal
  • precision dynamic balancing as per VDI 2060
  • robust, efficient overload protection by mechanical fixed stop
  • customer-specified dimensions and rated measuring ranges available
  • every coating and geometric structure of the roll surface available - just like for standard web guide rolls


line
Specifications
line

Measurings Ranges0-5 N to 0-5000 N
Resolution0.1%
Excitation12V
Overload Protection300 - 500%
IP RatingIP 50


line
Downloads
line

CSW Narrow Web Tension Sensor - Data Sheet
